Cleaning And Replacing The Intake Filter Element - Ingersoll-Rand GHH RAND SILU CS104 Operating Manual

Maintenance/repair
4.4.3

Cleaning and replacing the intake filter element

For the maintenance or replacement of the intake filter of a compressor unit based on the CS104 com‑
pressor stage (third‑party manufacturer), only the instructions from the manufacturer are applicable.
NOTE
Intake filters from diverse manufacturers can be installed. Also observe the instructions from the man‑
ufacturer.

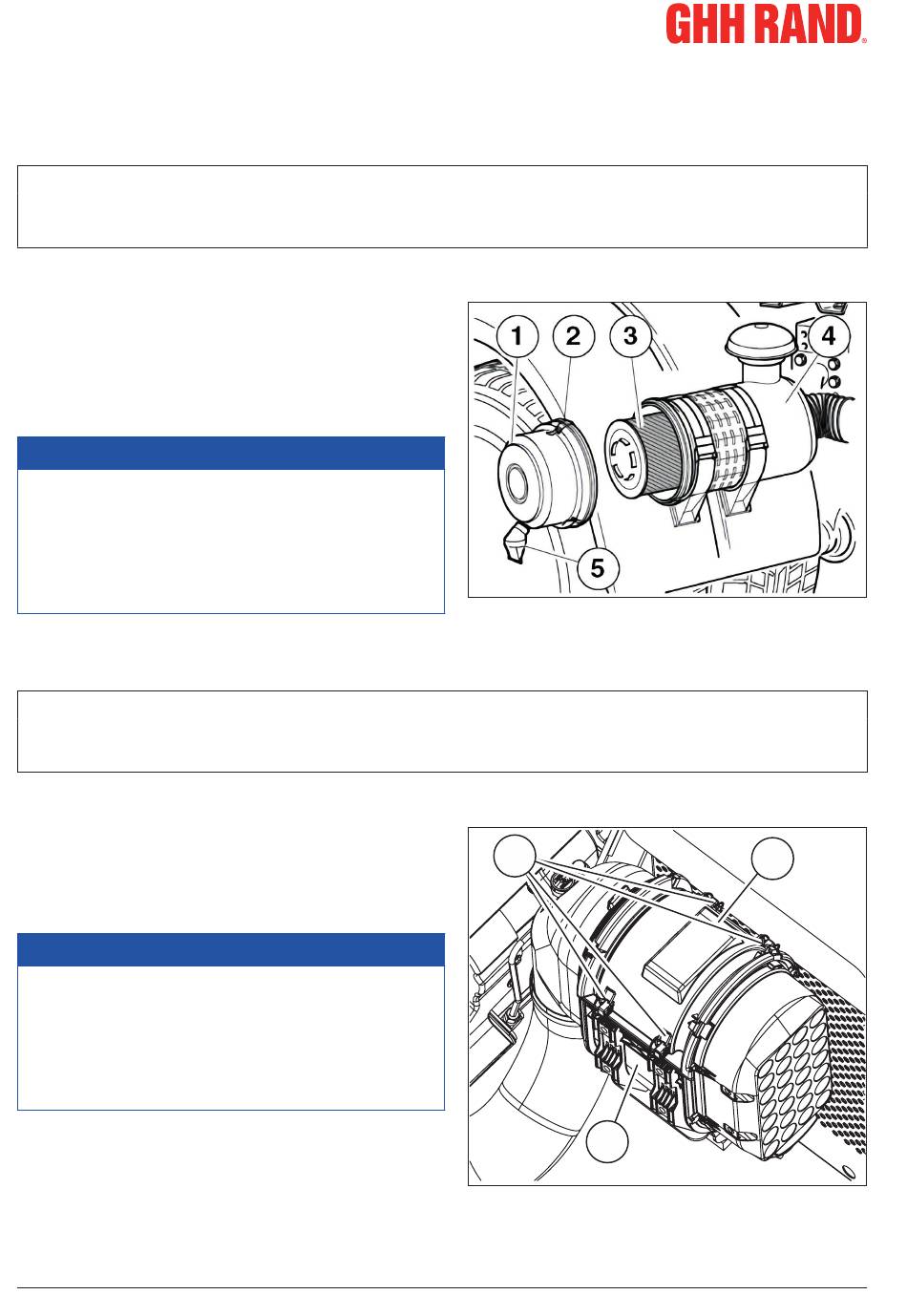

CS1200 LITE:
‣
Unfasten the wire bracket catches (2) from the air
filter housing (4) and then remove the cover (1).
‣
Remove filter elements (3).
‣
Clean filter elements (3) by lightly tapping or
replace if necessary.
NOTICE
INCORRECT FILTER CLEANING!
Do not clean filter elements with compressed air,
benzine or other liquids.
‣
Only clean or replace the filter element accord‑
ing to the instructions.
‣
Press the dust release valve (5) on the cover so that the collected dust/dirt falls out.
‣
Assembly occurs in reverse order.
NOTE
When replacing the cover, make sure that the dust release valve (5) points straight downwards (heed
the marking "OBEN/TOP" on the front of the cover).
CS1200 ICL:
‣
Unfasten the wire bracket catches (2) from the air
filter housing (1) and then remove the cover (3).
‣
Clean filter cartridges by tapping gently. If neces‑
sary, replace the filter cartridges.
NOTICE
INCORRECT FILTER CLEANING!
Do not clean filter elements with compressed air,
benzine or other liquids.
‣
Only clean or replace the filter element accord‑
ing to the instructions.
