Summary of Contents for Paxton ins-30093-EX

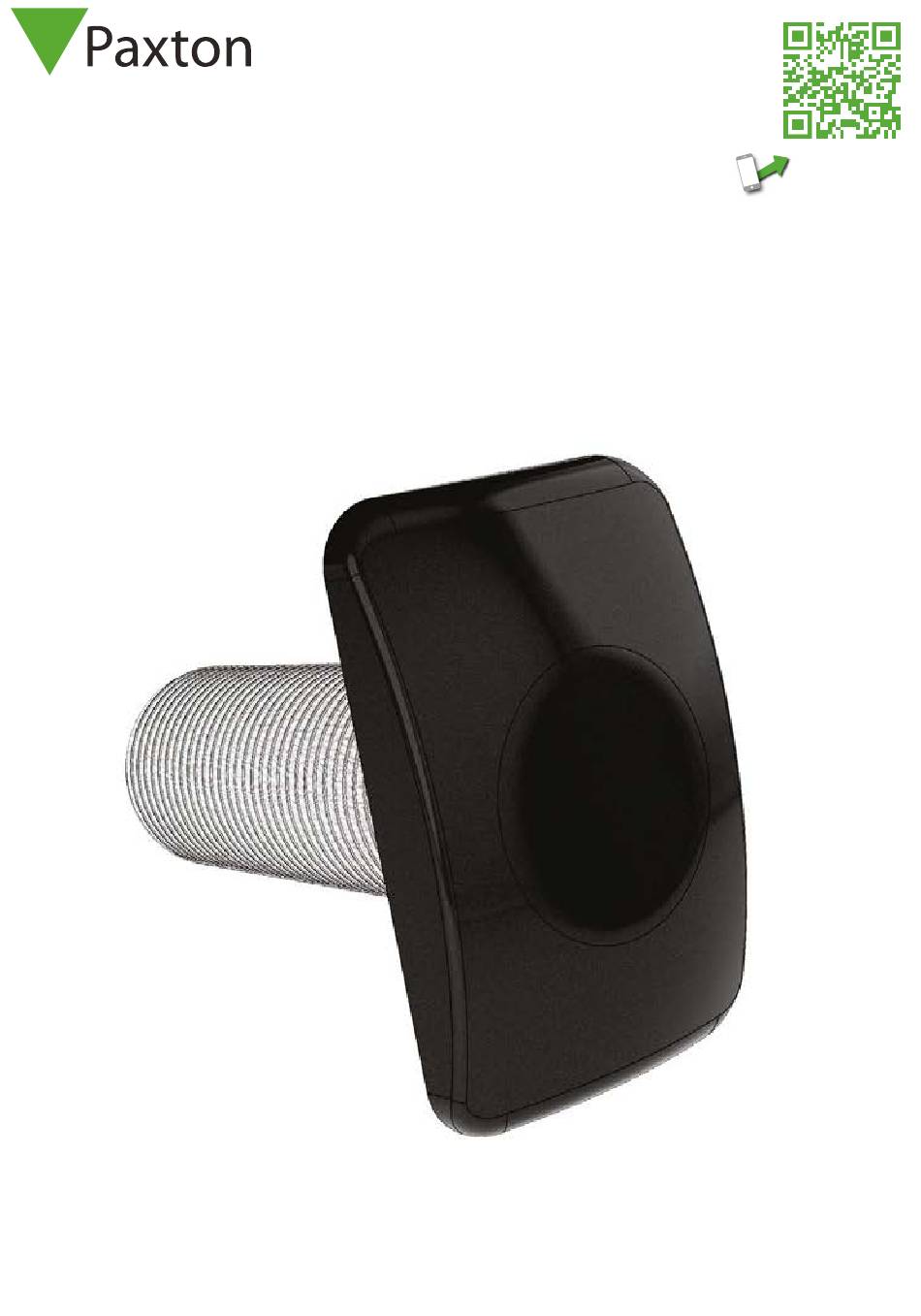

- Page 1 ins-30093-EX...
- Page 2 Additional covers are available in black, white, grey, solid blue, clear blue, green and yellow. Registered installers can order these free of charge by logging onto the secure installer extranet: http://paxton.info/1035 or if you are not a registered installer please call us on: 01273 811011 for more information.
- Page 3 Exit Exit button 12V DC power (push to make) supply +12V +12V 12V DC release current rating must be less than 1A. Electric release Wire outputs Reset - Use one method 1. Power down the unit. +12V DC 2. Press and hold the exit button. 3.
- Page 4 Enrolment Card - must be presented when the system is first powered on 1. Take the enrolment card from the new pack of user cards. 2. Present the enrolment card to the reader. 3. The reader will beep as the enrolment card is acknowledged. 4.
-
Page 5: Silent Operation
Fail open release card - Compact systems are fail closed as default FUNCTION CARD fail open release This card is used with systems where a fail open electric release is used for the safe operation in the event of a fire. Present the card to the reader to drive a fail open release or a maglock. -
Page 6: Specifications
Specifications Features 10,000 Number of Users Number of Card Packs Door open time 1 sec 60 secs Time zones (with additional time clock) Access levels (Colour Zones) Silent operation Can be used with fail OPEN locks Can be used with fail CLOSED locks Exit button input Electrical Voltage... - Page 7 +44 (0)1273 811011 877.438.7298 support@paxton.co.uk supportUS@paxton-access.com paxton.support usapaxton.support +31 (0)76 3333 999 +32 (0) 78485147 support@paxton-benelux.com support@paxton-benelux.com paxton.benelux.support paxton.benelux.support +33 (0)1 57 32 93 56 +49 (0) 251 2080 6900 verkauf@paxton-gmbh.de support@paxtonaccess.fr paxton.gmbh.support paxton.support 8000 3570 3783 +27 (0) 21 4276691 support@paxtonaccess.co.za...
- Page 8 Paxton Access Ltd hereby declares that this product is in conformity with all the essential requirements of the Directive 2014/53/EU. http://paxton.info/4687 The full declaration of conformity is provided at: http://paxton.info/3910 The full declaration of conformity is available on request. Contact details are provided at: http://paxton.info/596...
- Page 9 • Connecteur par vis (en option) - L’appareil doit être monté avec un boitier d’encastrement électrique pour obtenir l’espace nécessaire pour le connecteur. Si une plaque d’adaptation (310-750-F) est fixé, les fixations du boitier d’encastrement peuvent être utilisés. http://paxton.info/1606...
- Page 12 Made in the UK © Paxton Ltd 1.0.2...
