Paxton

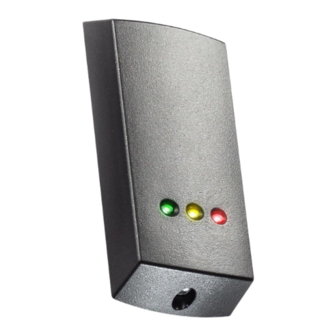

Ins-40002-US PROXIMITY P series reader - UL
Technical Support
1.800.672.7298
supportUS@paxton-access.com
Technical Help is available:
Monday - Friday from 02:00 AM - 8:00 PM (EST)
Documentation on all Paxton products can be found on our web site - http://www.paxton-access.com/
Mounting

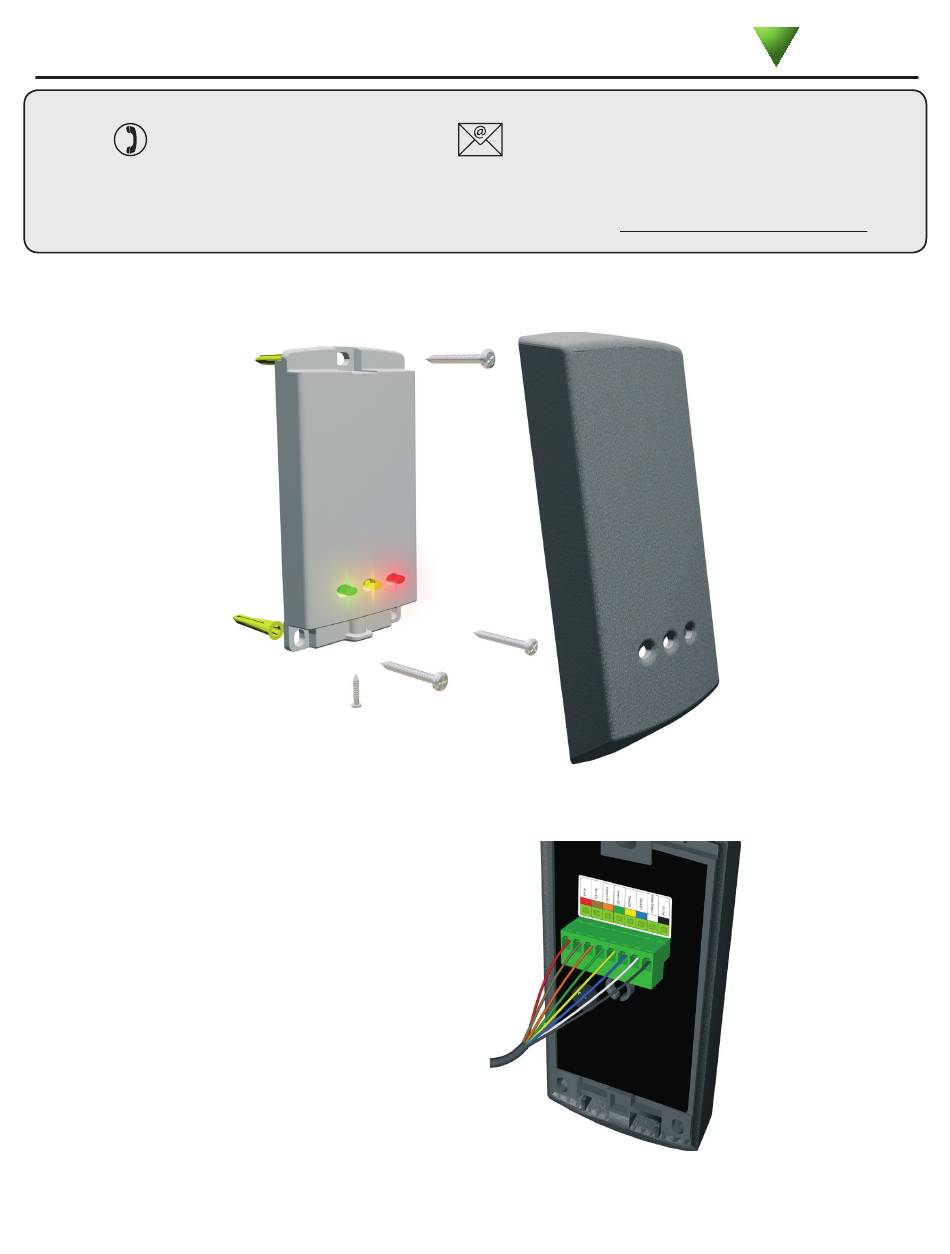

P75 Screw connector option
NOTE: The unit should be mounted in conjunction
with an electrical backbox to achieve the required
clearance for the connector.
If an adaptor plate (310-750-US) is fitted, the
mountings on the backbox can also be used.
This unit is for Indoor use only
This reader is designed to read EM4100 tokens. It will provide Clock and
Data output for Paxton (Net2 / Switch2).
PAGE 1
