Paxton Proximity LCD reader Instructions Manual

01/11/2011
Ins-30091-US PROXIMITY LCD reader
Technical Support
1.800.672.7298
Technical help is available:
Documentation on all Paxton products can be found on our web site - http://www.paxton-access.com/
Suitability
Security sensitive doors
Mounted on metal surface

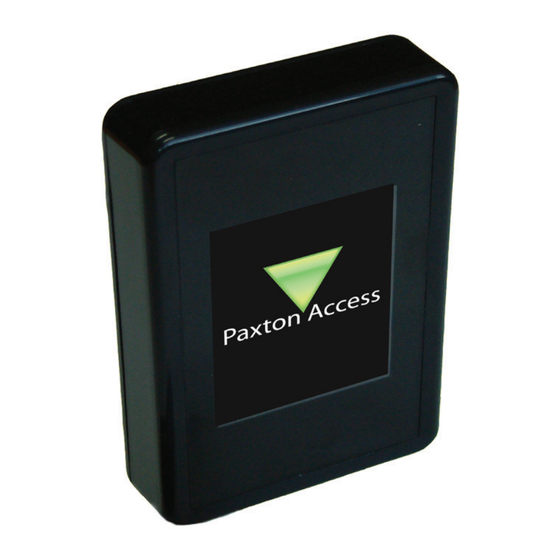

The full color backlit LCD screen can be configured to display images
of the customer's choice. For example, an image using a company
name/logo could be used as the default display on each reader
around the site.
The reader comes with four preloaded images. These can be
replaced using a free uploader program available from our website via
any Net2Air USB bridge or a Net2Air USB dongle.
If you wish to update these images, you should ensure that you have
a suitable Net2Air device as one is NOT supplied with the reader.

Fitting

Present the reader to the mounting plate so that the slots pass over the side tabs in the plate.
Slide the reader down the plate until the retaining pin clicks into position.
A tool is provided with the reader to depress this pin should the reader ever need to be removed.
The unit comes with four preloaded images. These relate to the 3 LED's (Green, Amber and Red) on a
standard Paxton Access reader plus a default image.
Once a token has been read, the control unit establishes the access permissions of that user. Access is
granted or denied as appropriate with the designated image displayed. For example, if access is denied
the image assigned could show "Please return to Reception".
support@paxton-access.com
Monday - Friday from 02:00 AM - 8:00 PM (EST)
Wet environments
Readers mounted together
The LCD display is best positioned at eye level for
ease of reading.
It is mounted using the backplate and fixings
provided and can be positioned to allow the
display of portrait or landscape images.

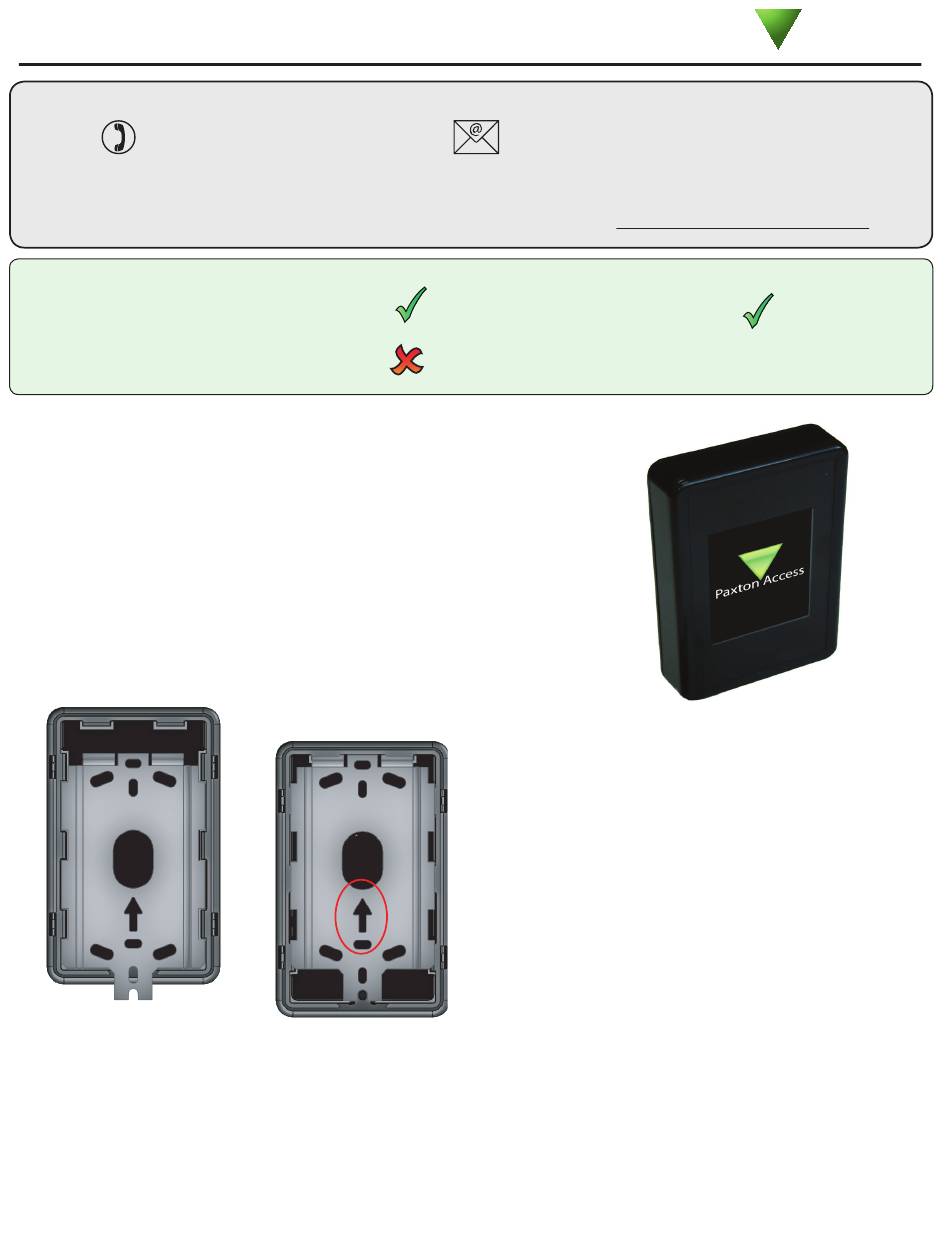

Fix the mounting plate to the wall, noting the
position of the orientation arrow (see diagram).
Make a hole in the wall to take the reader cable
and feed this through. Ensure there will be
sufficient slack to allow the reader to slide over
the mounting plate during installation.
Paxton
12 inches
between readers
PAGE 1
