This manual is intended to meet the Manufacturer's Instructions as required by ANSI Z359 and
CSA 259.10 and should be used as part of an employee training program as required by OSHA
WARNING: This product is part of a personal fall arrest,
restraint, work positioning, climbing, controlled descent,
or rescue system. The user must follow the manufacturer's
instructions for each component of the system. These
instructions must be provided to the user of this equipment.
The user must read and understand these instructions before
using this equipment. Manufacturer's instructions must be
followed for proper use and maintenance of this equipment.
Alterations or misuse of this product or failure to follow
instructions may result in serious injury or death.
IMPORTANT: If you have questions on the use, care, or
suitability of this equipment for your application, contact
Capital Safety.
IMPORTANT: Record the product identifi cation information
from the ID label in the inspection and maintenance log in
Section 9 of this manual.
DESCRIPTIONS:

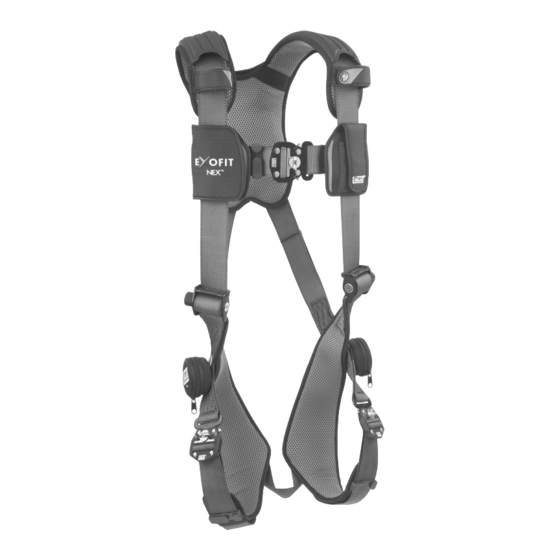

The ExoFit NEX™ Full Body Harness is available in Vest (Figure 1)
and Cross-Over (Figure 2) styles confi gured with a variety of
features including the following:
Tech-Lite™ Aluminum D-Rings - Varied Locations: Front, Back,
Hips, Shoulders
Duo-Lok™ Quick Connect Buckles
Repel Technology Webbing
Hybrid Comfort Padding
Revolver™ Vertical Torso Adjusters
Tongue Buckle Body Belt
Suspension Trauma Straps
NOTE: Some features may not be available on all models of
the ExoFit NEX™ Full Body Harness.
Form: 5903027 Rev: C
USER INSTRUCTION MANUAL
EXOFIT NEX™ FULL BODY HARNESS
ExoFit NEX™
Full Body Harness
Model Numbers: (See back pages.)
© Copyright 2012, Capital Safety.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ExoFit NEX Z359 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DBI SALA ExoFit NEX Z359

  • Page 1 ExoFit NEX™ Full Body Harness Model Numbers: (See back pages.) USER INSTRUCTION MANUAL EXOFIT NEX™ FULL BODY HARNESS This manual is intended to meet the Manufacturer’s Instructions as required by ANSI Z359 and CSA 259.10 and should be used as part of an employee training program as required by OSHA WARNING: This product is part of a personal fall arrest, restraint, work positioning, climbing, controlled descent, or rescue system.
  • Page 2 Figure 1 - ExoFit NEX™ Vest Style Full Body Harness A. Shoulder Strap w/Hybrid Padding B. Duo-Lok™ Quick Connect Buckle C. Chest Strap D. Hybrid Chest Pad with i-Safe™ RFID Tag & Labels E. Revolver™ Torso Adjustor F. Tech-Lite™ Side D-Ring G. Leg Strap H. Tech-Lite™ Dorsal D-Ring I. Trauma Strap Figure 2 - ExoFit NEX™...
  • Page 3 1.0 APPLICATION PURPOSE: The DBI-SALA ExoFit NEX™ Full Body Harness (Figure 1 and Figure 2) should be used as a component ™ in personal fall arrest, restraint, work positioning, climbing, controlled descent, or rescue systems (see Table 1). ExoFit NEX™ Harnesses included in this manual are full body harnesses and meet ANSI Z359.1, OSHA, and CSA Z259.10 requirements.
  • Page 4 Figure 3 - Applications Fall Arrest Restraint Ladder Climbing Work Positioning Work Positioning or Controlled Descent, with Seat Sling Work Positioning, with Seat Sling Work Positioning, with Seat Sling - Tower Climbing Anchorage Anchorage Connector Connecting Subsystem (SRL shown) D Full Body Harness Restraint Lanyard Backup Fall Arrest System...
  • Page 5 Figure 4 - Fall Clearance (Lanyards) Figure 5 - Swing Falls RD = LL + DD + HH + C Required Fall Clearance Distance Length of Lanyard (Specifi ed on labeling) Deceleration Distance = 4 ft (1.2 m) except: • for ANSI/OSHA Lanyards with Free Fall greater than 6 ft (1.8 m) up to 12 ft (3.7 m), or user weights greater than 310 lbs (141 kg) up to 420 lbs (191 kg);...
  • Page 6: Other Restrictions

    MAKING CONNECTIONS: Use only self-locking snap hooks and carabiners with this equipment. Only use connectors that are suitable to each application. Ensure all connections are compatible in size, shape and strength. Do not use equipment that is not compatible. Ensure all connectors are fully closed and locked. DBI-SALA connectors (snap hooks and carabiners) are designed to be used only as specifi...
  • Page 7 2.10 CONNECTING SUBSYSTEMS: Connecting subsystems (self-retracting lifeline, lanyard, rope grab and lifeline, cable sleeve) must be suitable for your application (see Table 1). See subsystem manufacturer’s instructions for more information. Some harness models have web loop connection points. Do not use snap hooks to connect to web loops.
  • Page 8 3.0 DONNING AND USE WARNING: Do not alter or intentionally misuse this equipment. Consult Capital Safety when using this equipment in combination with components or subsystems other than those described in this manual. Some subsystem and component combinations may interfere with the operation of this equipment. Use caution when using this equipment around moving machinery, electrical and chemical hazards, and sharp edges.
  • Page 9 EXOFIT NEX™ VEST STYLE FULL BODY HARNESS: The ExoFit NEX™ Vest Style Harness incorporates loops for a removable waist belt (see Figure 9). The belt can be installed through the two loops in the harness located in the lower back shoulder straps. The belt will pass through the harness just below the padded area.
  • Page 10 Figure 11 - Donning the ExoFit NEX™ Vest Style Full Body Harness Step 1 Step 2 Step 3 Duo-Lok™ Quick Connect Buckles Connection: Connect buckle ends by inserting the tab into the receptor until a click is heard. Strap Adjustment: Rotate Webbing Lock to unlocked position .
  • Page 11 EXOFIT NEX™ CROSS-OVER STYLE FULL BODY HARNESS: The ExoFit NEX™ Cross-Over Style Harness incorporates loops for a removable waist belt. The belt can be installed through the two loops in the harness located in the lower back shoulder straps (see Figure 10). The belt will pass through the harness just below the padded area.
  • Page 12 Figure 12 - Donning the ExoFit NEX™ Cross-Over Style Full Body Harness Step 1 Step 2 Step 3 Duo-Lok™ Quick Connect Buckles Connection: Connect buckle ends by inserting the tab into the receptor until a click is heard. Strap Adjustment: Rotate Webbing Lock to unlocked position .
  • Page 13 SUSPENSION TRAUMA STRAP: The Figure 13 - Suspension Trauma Straps ExoFit NEX™ Full Body Harness is equipped with a Suspension Trauma Strap (Figure 13) to help prolong allowable suspension time in the event of a fall from height. It should only be used in situations where a fall has occurred or for training.
  • Page 14 4.0 TRAINING It is the responsibility of the purchaser and the user of this equipment to assure that they understand these instructions and are trained in the correct care and use of this equipment. They must also be aware of the operating characteristics, application limits, and the consequences of improper use of this equipment.
  • Page 15: Maintenance, Servicing, And Storage

    Step 5. Record inspection data: Record the inspection date and results in the Inspection and Maintenance Log (see Section 9). Step 6. Inspect the Stitched Impact Indicator: The stitched impact indicator is a section of webbing that is lapped back on itself and secured with a specifi c stitch pattern holding the lap (see Figure 16).
  • Page 16: Specifications

    7.0 SPECIFICATIONS PERFORMANCE: • Maximum Free Fall Distance: No greater than 6 ft (1.8 m), per federal law and ANSI Z359.1. NOTE: Harness is acceptable for use with free fall distances exceeding 6 feet (1.8 m) if used with appropriate connecting system. •...
  • Page 17 8.0 LABELING The following labels must be securely attached and fully legible: All Models ANSI Models CSA Models...
  • Page 18 ANSI Models CSA Models Vest Style Harness Cross-Over Style Harness...
  • Page 19: Inspection And Maintenance Log

    9.0 INSPECTION AND MAINTENANCE LOG SERIAL NUMBER: MODEL NUMBER: DATE PURCHASED: DATE OF FIRST USE: INSPECTION DATE INSPECTION ITEMS CORRECTIVE ACTION MAINTENANCE NOTED PERFORMED Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By:...
  • Page 20 INSPECTION AND MAINTENANCE LOG SERIAL NUMBER: MODEL NUMBER: DATE PURCHASED: DATE OF FIRST USE: INSPECTION DATE INSPECTION ITEMS CORRECTIVE ACTION MAINTENANCE NOTED PERFORMED Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By:...
  • Page 21 INSPECTION AND MAINTENANCE LOG SERIAL NUMBER: MODEL NUMBER: DATE PURCHASED: DATE OF FIRST USE: INSPECTION DATE INSPECTION ITEMS CORRECTIVE ACTION MAINTENANCE NOTED PERFORMED Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By:...
  • Page 22 ANSI Models CSA Models 1102705 1113085 1113184 1113255 1113320 1103070C 1113091C 1113215H 1113335C 1102706 1113088 1113185 1113256 1113321 1103071C 1113094C 1113216H 1113336C 1102707 1113090 1113186 1113257 1113322 1103072C 1113097C 1113217H 1113337C 1113000 1113091 1113187 1113258 1113323 1103073C 1113100C 1113218H 1113338C 1113001 1113094 1113188...
  • Page 24: Limited Lifetime Warranty

    LIMITED LIFETIME WARRANTY Warranty to End User: D B Industries, Inc., dba CAPITAL SAFETY USA (“CAPITAL SAFETY”) warrants to the original end user (“End User”) that its products are free from defects in materials and workmanship under normal use and service. This warranty extends for the lifetime of the product from the date the product is purchased by the End User, in new and unused condition, from a CAPITAL SAFETY authorized distributor.
