- Page 1 We build your success in IoT. LEEDARSON Motion sensor Pet Immunity Z- Wave™ 7CA-SS-VE-A0...
-
Page 2: Product Introduction

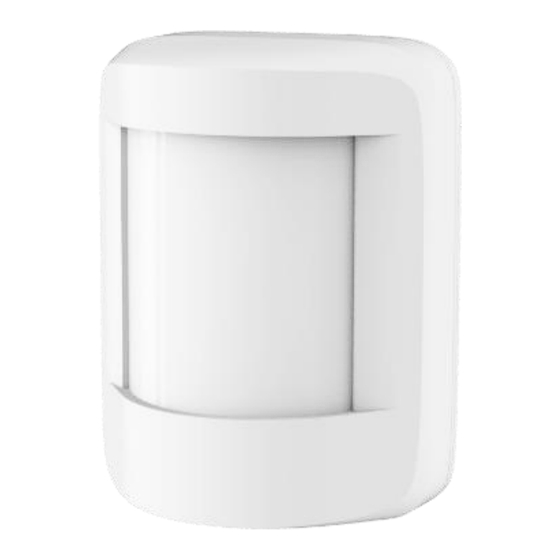

Motion Sensor Pet immunity Quick Start Guide 1. Product Introduction The Motion Sensor lets you know when movement is detected in a certain area and can trigger different actions in response to that movement (or lack of movement). It supports the pet immunity up to 80 lbs. - Page 3 Bracket Reset button Button: Short press reset button into learning mode, then the sensor can inclusion or exclusion from the Z-Wave network. Hold the key for 5s to reset the sensor, after reset, Sensor will send “Device_Reset_Locally” to the main controller and exclude from the Z-Wave network when the Button is released, this procedure will reset the Sensor to factory default.
-
Page 4: Installation Position And Notes
Pet immune 80 lbs (36 kgs) 6.23 ft. to 7.55 ft. Mounting height (1.9m to 2.3m) Light sensor 50 lux for day/night(bright/dark) Protocol Z-Wave 908.42MHz (US) Frequency 868.42MHz(EU) Power source Battery-powered Battery type CR123A X 1 Battery life 3 years Anti-Tamper Low power alarm Certifications... -
Page 5: Product Installation
Top view 2. Do avoid installation near air-conditioner, electric fans, refrigerators, ovens or other places where temperature easy change. 3. In order not to affect the detecting result, there should be no object in front of the produces lens. 4. Building (such as the wall) will shorten the distance of wireless communication. 5. -
Page 6: Product Usage
③ Assembly the main body to the bracket. 6. Product Usage Function of Action Button: 6.1 All functions of each trigger: Function Of Action Trigger Description In the network: Send Battery report and Wake up notification, the LED turn on within 1 second. Power on Not in the network: Only the LED will be slow blink 3 times. - Page 7 In the network: Send Wake up notification, and LED will fast blink when Short press sending data, send over then the LED turn off. button there Not In the network: NOP. time Reset Motion Sensor to factory default. 1. Triggering this action, in 5 seconds LED will be accelerate blink. After 5 seconds, the LED will remain on until the key is released.
- Page 8 6.3 Low voltage alarm to remind changing battery. This product has low voltage detection reminder, when the battery voltage is in low status, the detector will give out low battery signal to controller. 7. Attention 1. If need to clean the sensor, please use a soft cloth with a little alcohol to wipe it after you cut off the power.
- Page 9 This device supports SmartStart and can be included into a network by scanning the QR Code on the device Quick Response Code (QR Code): The first 16 bytes of the ECDH Public Key and sometimes additional information is encoded into a QR Code graphic. When referred to in this document, “DSK” applies to the Full DSK, the combination of Full DSK and QR Code, or the combination of Pin Code and QR Code.
- Page 10 COMMAND_CLASS_NOTIFICATION_V3 COMMAND_CLASS_WAKE_UP COMMAND_CLASS_CONFIGURATION_V4 COMMAND_CLASS_SENSOR_MULTILEVEL_V5 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 Included S2 Non-Secure Node Info COMMAND_CLASS_ZWAVEPLUS_INFO COMMAND_CLASS_TRANSPORT_SERVICE Frame COMMAND_CLASS_SECURITY COMMAND_CLASS_SECURITY_2 COMMAND_CLASS_SUPERVISION Security COMMAND_CLASS_VERSION COMMAND_CLASS_POWERLEVEL Command COMMAND_CLASS_ASSOCIATION Supported Report COMMAND_CLASS_ASSOCIATION_GRP_INFO Frame COMMAND_CLASS_MANUFACTURER_SPECIFIC COMMAND_CLASS_DEVICE_RESET_LOCALLY COMMAND_CLASS_BATTERY COMMAND_CLASS_NOTIFICATION_V3 COMMAND_CLASS_WAKE_UP COMMAND_CLASS_CONFIGURATION_V4 COMMAND_CLASS_SENSOR_MULTILEVEL_V5 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 Association Command Class Motion Sensor supports 2 association groups and max 5 nodes for each group. Association Group Info Command Class Association Group Info Grouping identifier...
- Page 11 Command Class COMMAND_CLASS_BASIC(0x20) Command BASIC_SET(0x01) Notification Commands Notification Type Notification Event HOME_SECURITY (0x07) (0x00) NO_EVENT...
- Page 12 (0x03) TAMPERING_COVERING_REMOVED (0x08) MOTION_DETECTION_UNKNOWN_LOCATION (0x0A) REPLACE_BATTERY_SOON POWER_MANAGEMENT (0x08) (0x0B) REPLACE_BATTERY_NOW (0x00) NO_EVENT (0x00) NO_EVENT LIGHET_ALARM(0x14) (0x01) LIGHETSENSOR_ALARM_DETECTED Configuration Set Command Class Command Format Command Class = COMMAND_CLASS_CONFIGURATION Command = CONFIGURATION_SET Parameter Number Default Reserved Size Configuration Value 1(MSB) Configuration Value 2 ……...
- Page 13 5.4.1 Parameter Number Definitions (8 bit) Name Info Paramet Default Size Format Altering Value Value Value capabilit Number only LowBatPrecent LowBatAlarm 0x0A UNSIGNED Will alters (10) (0x0A) (0x32) (0x05) Read- _INTEGER capabilities only UNSIGNED Will alters 0x0C Pironoff PironoffSet Read- _INTEGER capabilities (0X01)
- Page 14 Enable/Disable the PIR 0 = Disable the PIR. 0x0C(12) 1 = Enable the PIR. Setup the wait time of PIR for clear the motion. 0x0D (13) Valid values: 0x05~0x3BC4 When the Motion Sensor is triggered, if this parameter is 0x01 then it will send Basic set command to group 1. 0x0E (14) 0 = Don't send.
