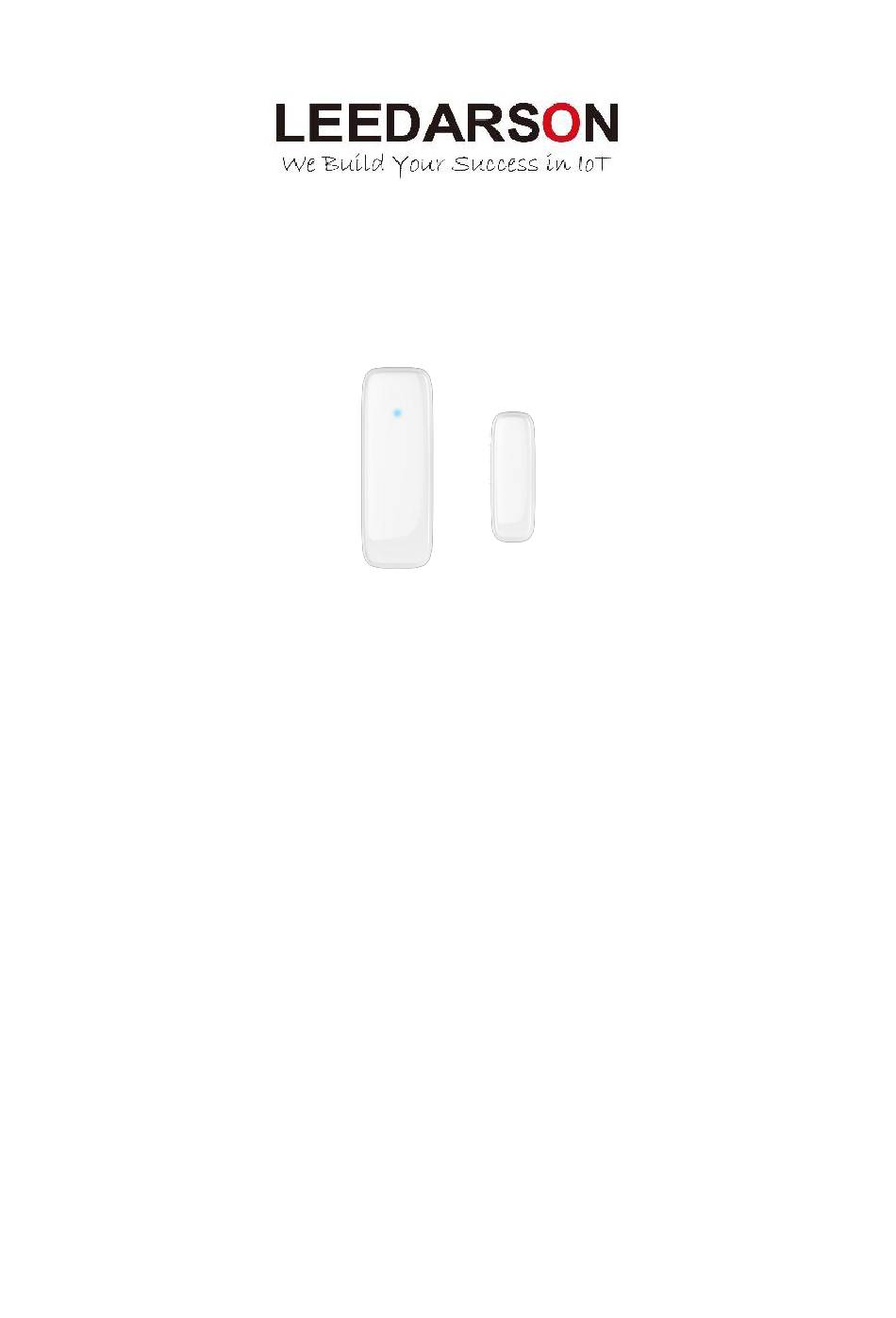

Leedarson 7A-SS-AE-H0 Quick Start Manual

Z-wave door/window sensor
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
LEEDARSON Z-Wave Door/Window Sensor
Content:
Contact Sensor ................................................................................................................................................... 2
1. Product Introduction ............................................................................................................................ 2
2. Product Appearance ............................................................................................................................ 2
3. Specification ......................................................................................................................................... 3
4. Features/Capabilities ........................................................................................................................... 3
5. Installation Position and Notes ............................................................................................................ 4
6. Product Installation .............................................................................................................................. 4
7. Product Usage ...................................................................................................................................... 5
8. Attention .............................................................................................................................................. 6
9. Configuration Command ...................................................................................................................... 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7A-SS-AE-H0 and is the answer not in the manual?

Questions and answers

Related Manuals for Leedarson 7A-SS-AE-H0

Summary of Contents for Leedarson 7A-SS-AE-H0

  • Page 1: Table Of Contents

    LEEDARSON Z-Wave Door/Window Sensor Content: Contact Sensor ..............................2 1. Product Introduction ..........................2 2. Product Appearance ..........................2 3. Specification ............................3 4. Features/Capabilities ........................... 3 5. Installation Position and Notes ......................4 6. Product Installation ..........................4 7. Product Usage ............................5 8.

  • Page 2: Contact Sensor

    Quick Start Guide 1. Product Introduction The LEEDARSON Door/Window sensor is a wireless sensor that is powered by a CR2 battery. The door/window sensor lets you know when a door or window is opened, or closed, and can trigger different actions in response to that open action or close action.

  • Page 3: Specification

    4. The Sensor also anti-tamper functionality. Once the sensor is moved, it will notify the gateway. 5. The LEEDARSON Door/Window Sensor is powered by CR2 battery with 2 years battery life. 6. The LEEDARSON Door/Window Sensor is designed to be mounted on the door or windows.

  • Page 4: Installation Position And Notes

    5. Installation Position and Notes 1. The sensor should be used indoors and away from sources of moisture. 2. The magnet and the main sensor must be less than 2cm apart. Main sensor must be affixed to the door or window and the magnet must be affixed to the frame. The magnet and the main sensor must separate when the door or window is opened.

  • Page 5: Product Usage

    7. Product Usage Function of Action Button: Door/Window Sensor is not in the Z-Wave network: Trigger Description Power On LED will keep on 1 second. Short press 1. LED will blink fast for 25 seconds, send Node Info frame. time 2.

  • Page 6: Attention

    Low voltage alarm to remind changing battery. This product has low voltage detection reminder, When the battery voltage is in low status, the detector will give out low battery signal to controller. 8. Attention 1. If the sensor needs to be cleaned, remove power and use a soft cloth with a little alcohol and wipe down the device.
  • Page 7 COMMAND_CLASS_SUPERVISION_V1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 Security COMMAND_CLASS_ASSOCIATION_V2 Supported COMMAND_CLASS_ASSOCIATION_GRP_INFO_V1 Report COMMAND_CLASS_VERSION_V2 Command COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Classes COMMAND_CLASS_DEVICE_RESET_LOCALLY_V1 COMMAND_CLASS_POWERLEVEL_V1 COMMAND_CLASS_CONFIGURATION_V1 COMMAND_CLASS_BATTERY_V1 COMMAND_CLASS_NOTIFICATION_V8 COMMAND_CLASS_WAKE_UP_V2 COMMAND_CLASS_SUPERVISION_V1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 9.2. NOTE FOR SPECIAL COMMANDS 9.2.1 Association Command Door/Window Sensor supports two association groups. Grouping Send Commands Identifier Nodes Group 1 0x05 1.
  • Page 8 Tampering, Product covering removed (0x03): the temper button is released. Previous Events cleared (0x00): the temper button is pressed. Power Management: Replace Battery Soon (0x0a): When Door/Window sensor first detect the battery level is lower than the level of low battery (see the configuration parameter NO.10 below). Replace Battery Now (0x0b): When Door/Window sensor first detect the battery level is lower than Previous Events cleared (0x00): When Door/Window sensor powered by a new battery (>2.8V).
