Leedarson 7A-SS-AABC-H0 Quick Start Manual

Multi-sensor
Hide thumbs Also See for 7A-SS-AABC-H0:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Content:
Multi Sensor ....................................................................................................................................................... 2
1. Product Introduction ............................................................................................................................ 2
2. Product Appearance ............................................................................................................................ 2
3. Specification ......................................................................................................................................... 3
4. Features/Capabilities: .......................................................................................................................... 4
5. Installation Position and Notes ............................................................................................................ 4
6. Product Installation .............................................................................................................................. 5
7. Product Usage ...................................................................................................................................... 5
8. Attention .............................................................................................................................................. 7
We build your success in IoT.

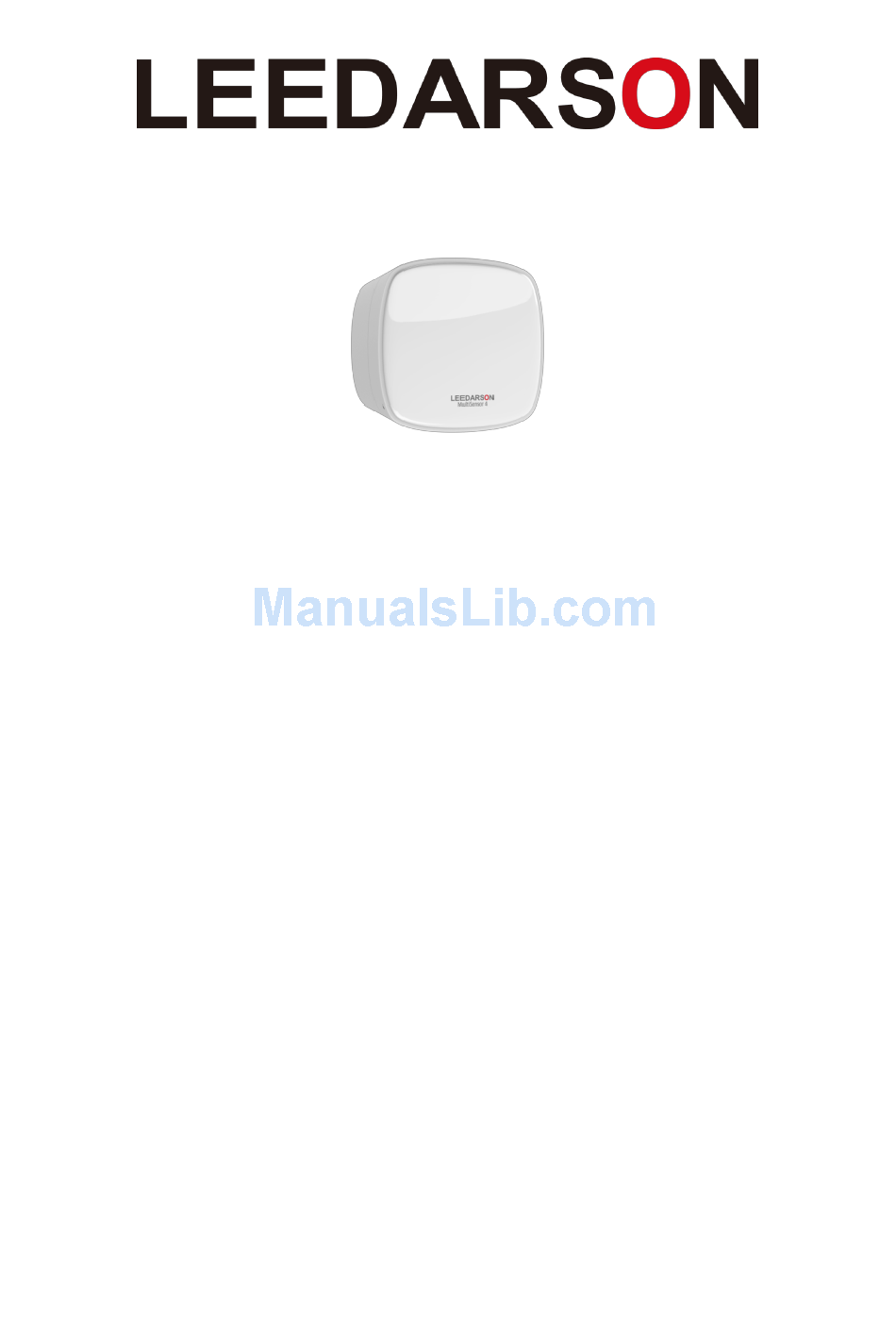

LEEDARSON Multi Sensor
7A-SS-AABC-H0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7A-SS-AABC-H0 and is the answer not in the manual?

Questions and answers

Related Manuals for Leedarson 7A-SS-AABC-H0

Summary of Contents for Leedarson 7A-SS-AABC-H0

  • Page 1: Table Of Contents

    We build your success in IoT. LEEDARSON Multi Sensor 7A-SS-AABC-H0 Content: Multi Sensor ............................... 2 1. Product Introduction ..........................2 2. Product Appearance ..........................2 3. Specification ............................3 4. Features/Capabilities: .......................... 4 5. Installation Position and Notes ......................4 6.

  • Page 2: Multi Sensor

    Multi-Sensor Quick Start Guide 1. Product Introduction The Multi-sensor is designed for using with scenes in home automation systems, integrate motion, light , temperature and humidity sensors, powered by CR123A battery or USB cable. The Motion Sensor lets you know when movement is detected in a certain area and can trigger different actions in response to that movement (or lack of movement).

  • Page 3: Specification

    3. Specification Module Name 7A-SS-AABC-H0 PIR （ Passive Infrared ） Detection Technology Detection Angle 110°±10° Detection Distance 5 meters Temperature Accuracy ±1℃ Humidity Accuracy ±5% Communication Protocol Z-Wave 908.42MHz (US) Radio Frequency 868.42MHz (EU) 921.42MHz (AU) More than 100m outdoors...

  • Page 4: Features/Capabilities

     The LEEDARSON Multi-Sensor can through the USB charging, also can through the batteries.  The LEEDARSON Multi-Sensor is designed to be mounted on the wall and indoor use only.  The LEEDARSON Multi-Sensor has configuration Luminance intensity/ Temperature/ Humidity Report time interval.

  • Page 5: Product Installation

    2. Do avoid installation near air-conditioner, electric fans, refrigerators, ovens or other places where temperature easy change. 3. In order not to affect the detecting result, there should be no object in front of the produces lens. 4. Building (such as the wall) will shorten the distance of wireless communication. 5.
  • Page 6 a. Let the primary controller into remove mode (If you don’t know how to do this, refer to its manual). b. Short Press one time this Z-Button. c. If the remove is successful, Multi-Sensor LED will blink 2 second. Otherwise, the LED will keep on 25 seconds and then turn off, in which case you need to repeat the process from step b.

  • Page 7: Attention

    8. Attention 1. If need to clean the sensor, please use a soft cloth with a little alcohol to wipe it after you cut off the power. 2. This product is just for indoor use. 3. Replace the battery timely on low battery warning to ensure the detector works properly. Please remove the battery and safe keeping, if you don’t use this product for a long time.
  • Page 8 FCC Statement 15.19 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.
