Leedarson Water Leak Sensor User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Content:
Water Leak Sensor ............................................................................................................................................. 1
1. Product Introduction ............................................................................................................................ 2
2. Product Profile ..................................................................................................................................... 2
3. Specification ......................................................................................................................................... 3
4. Features/Capabilities ........................................................................................................................... 3
5. Installation Notice ................................................................................................................................ 4
6. Installation ........................................................................................................................................... 4
7. Product usage ...................................................................................................................................... 4
8. Note ...................................................................................................................................................... 6
9. Command List ...................................................................................................................................... 6
We build your success in IoT.

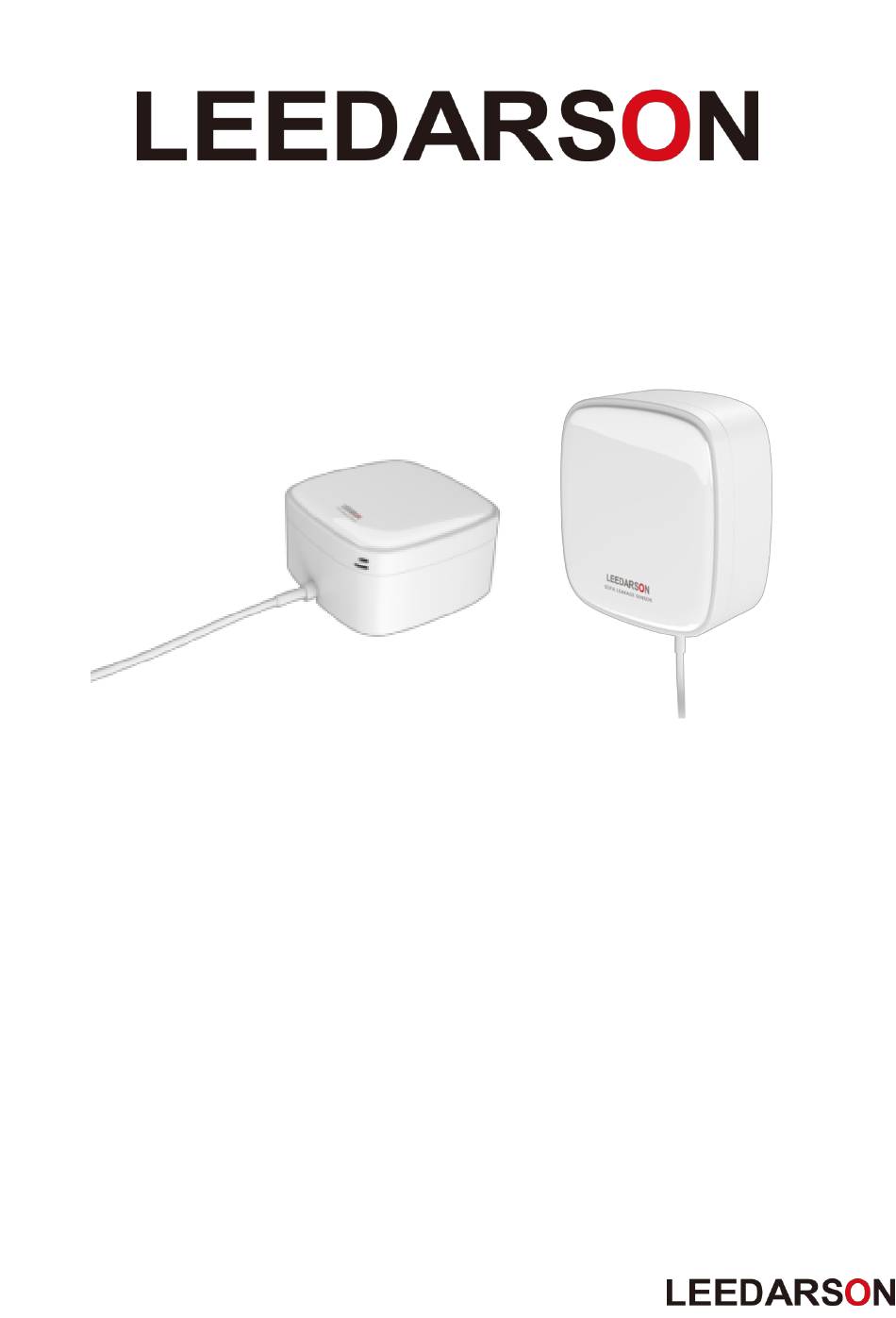

LEEDARSON Water Leak Sensor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Water Leak Sensor and is the answer not in the manual?

Questions and answers

Related Manuals for Leedarson Water Leak Sensor

Summary of Contents for Leedarson Water Leak Sensor

  • Page 1: Table Of Contents

    We build your success in IoT. LEEDARSON Water Leak Sensor Content: Water Leak Sensor ............................. 1 1. Product Introduction ..........................2 2. Product Profile ............................. 2 3. Specification ............................3 4. Features/Capabilities ........................... 3 5. Installation Notice ..........................4 6. Installation ............................4 7.

  • Page 2: Product Introduction

    1. Product Introduction Water Sensor is a wireless water leak sensor powered by CR123A battery, you can receive immediate alerts if there is unwanted water in your home (such as in a basement, near a water heater, under an old pipe, or in a bathroom), helping you prevent leaks from turning into flood.

  • Page 3: Specification

     The LEEDARSON Water Sensor is designed to be mounted on the wall with sensor probes extended by connected wire.  The LEEDARSON Water Leak Sensor has a built-in LED indicator and an acoustic alarm, notifying the user of: o Water leak o Operating mode ...

  • Page 4: Installation Notice

    If a pool of water form, moisture must contact both leads to trigger an alert. 1. Install the detector where the water is likely to leak, such as place the Water Leak Sensor in areas like bathrooms, basements, under clogged drains, under older pipes, or in other areas of your home that are prone to leak so that you can receive an instant alert.
  • Page 5 1. LED will blink one time; sending wake up notification cc. (within 1 second) Press and hold for Reset Water Leak Sensor to factory Default: 5 seconds LED will blink for 5 seconds and then keep solid for 3 seconds, after that Water Leak Sensor will send “Device_Reset_Locally”...

  • Page 6: Note

    9.1 SECURITY AND NON-SECURITY FEATURES OF WATER LEAK SENSOR IN Z- WAVE NETWORK 1. The function of the Water Leak Sensor as a security and non-security device is identical. 2. When a node includes into a S2 Z-Wave network, the node only supports S2 unauthenticated class and so do the supported CCs 3.
  • Page 7 COMMAND_CLASS_CONFIGURATION_V1 COMMAND_CLASS_BATTERY_V1 COMMAND_CLASS_NOTIFICATION_V4 COMMAND_CLASS_WAKE_UP_V2 COMMAND_CLASS_SUPERVISION_V1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 9.2 NOTE FOR SPECIAL COMMANDS 9.2.1 Association Command Water Leak Sensor supports two association groups. Grouping Send Commands Identifier Nodes Group 1 0x05 1. Notification Report. Sensor will send Notification Report when the water probe is triggered.
  • Page 8 State Idle (0x00): The water probe part is pulled out of the water. 9.2.4 Configuration Command Water Leak Sensor offers a wide variety of advanced configuration settings. Below parameters can be accessed from main controllers configuration interface. NOTE: ALL NUMBERS BELOW ARE DECIMAL.
  • Page 9 FCC Statement 15.19 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 10 IC 20cm RF This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body. Cet équipement est conforme aux limites d’ exposition aux rayonnements de la IC établies pour un environnement non contrôé.
