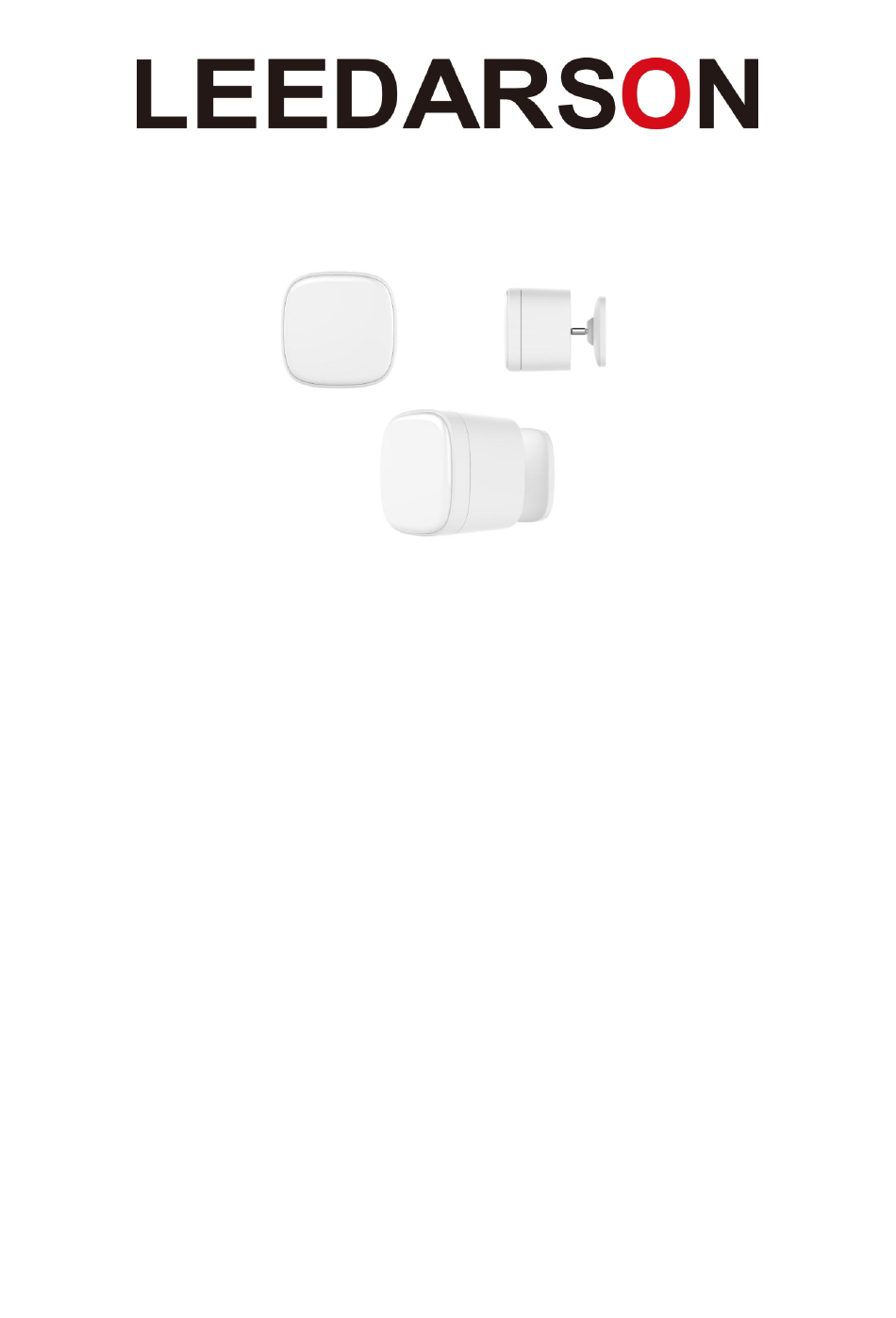

We build your success in IoT. LEEDARSON Multi-Sensor Content: Multi-Sensor ............................... 2 1. Product Introduction ..........................2 2. Product Appearance ..........................2 3. Specification ............................3 4. Features/Capabilities: ..........................4 5. Installation Position and Notes ......................4 6. Product Installation ..........................5 7. -
Page 2: Multi-Sensor
Multi-Sensor Quick Start Guide 1. Product Introduction The Multi-sensor is designed for using with scenes in home automation systems, integrate motion, light , temperature and humidity sensors, powered by CR123A battery or MicroUSB cable. The Motion Sensor lets you know when movement is detected in a certain area and can trigger different actions in response to that movement (or lack of movement). -
Page 3: Specification
② LED Indicator: if sensor has not been added to controller, the LED will blink for 5 seconds. The LED will keep on 3 seconds when joined to controller successfully. 3. Specification Model Name 7A-SS-AABC-H0 Passive Infrared PIR （ ）... -
Page 4: Features/Capabilities
The LEEDARSON Multi-Sensor is powered by the batteries or Micro USB reserved. The LEEDARSON Multi-Sensor is designed to be mounted on the wall and indoor use only. The LEEDARSON Multi-Sensor’s Luminance intensity/ Temperature/ Humidity Report time interval can be configured by APP. -
Page 5: Product Installation
4. Building (such as the wall) will shorten the distance of wireless communication. 5. This device can be mounted on the wall only, it cannot be installed on the ceiling. 6. Product Installation Adding the device as accessories, install it according to the diagram below: ①... -
Page 6: Product Usage
7. Product Usage Function of Action Button: 7.1 All functions of each trigger: Trigger Description In the network: 1. The LED turn on 5 seconds then turn off. 2. Send battery report and Wakeup Notification. Not in the network: 1. The LED will turn on 1 second then turn off. 2. - Page 7 1. Send Security Node Info frame. 2. Add Multi-Sensor into a Z-Wave network: a. Let the primary controller go into inclusion mode (If you don’t know how to do this, refer to its manual). b. Short Press one time this Z-Button. c.
-
Page 8: Association Command
Association setting and restore the Configuration setting to the default. Caution: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 9: Configuration Command Parameters
7.3.2 Configuration Command Parameters Multi-Sensor offers a wide variety of advanced configuration settings. Below parameters can be accessed from main controllers configuration interface. Parameter Size Default Value Description Low Battery Power Level of alarm threshold values: 0x0A the value range are 10~50 for percentage, so the (0x0A) Battery Low Power level can setting 10%~50%. - Page 10 the interval time is 2 minutes. 0x1C20 The interval time of sending the luminance 0 then the (0x67) reporting. if setting to luminance reporting is disabled 1. Valid values: 0x00-0x28DE80 2. The minimum interval time is 1 minutes. For example, if the value is set to be more than 1 and less than 60, the interval time is 1 minutes, if the value is set to be more than 60 and less than 120, the interval time is 2 minutes.
-
Page 11: Attention
8. Attention 1. If need to clean the sensor, please use a soft cloth with a little alcohol to wipe it after you cut off the power. 2. This product is just for indoor use. 3. Replace the battery timely on low battery warning to ensure the detector works properly. Please remove the battery and safe keeping, if you don’t use this product for a long time.
