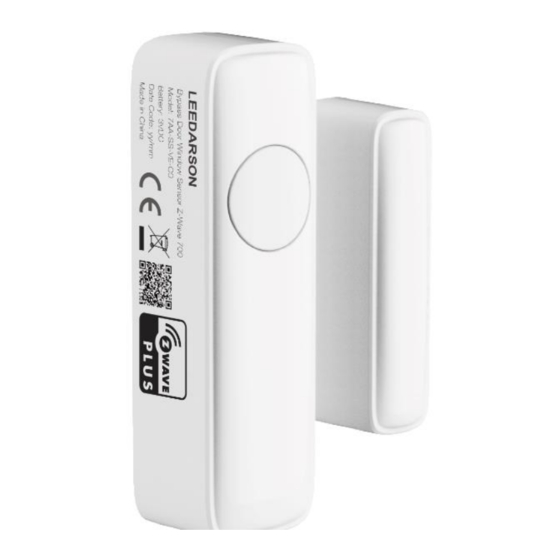

Leedarson 7AA-SS-VE-A0 Quick Start Manual

Bypass door window sensor z-wave 700
Hide thumbs

Advertisement

Quick Links

Download this manual
TM
Bypass Door Window Sensor Z-Wave
700
7AA-SS-VE-A0
Bypass Door Window Sensor
Quick Start Guide
1. In The Box

Advertisement

loading
Need help?

Need help?

Do you have a question about the 7AA-SS-VE-A0 and is the answer not in the manual?

Questions and answers

Related Manuals for Leedarson 7AA-SS-VE-A0

Summary of Contents for Leedarson 7AA-SS-VE-A0

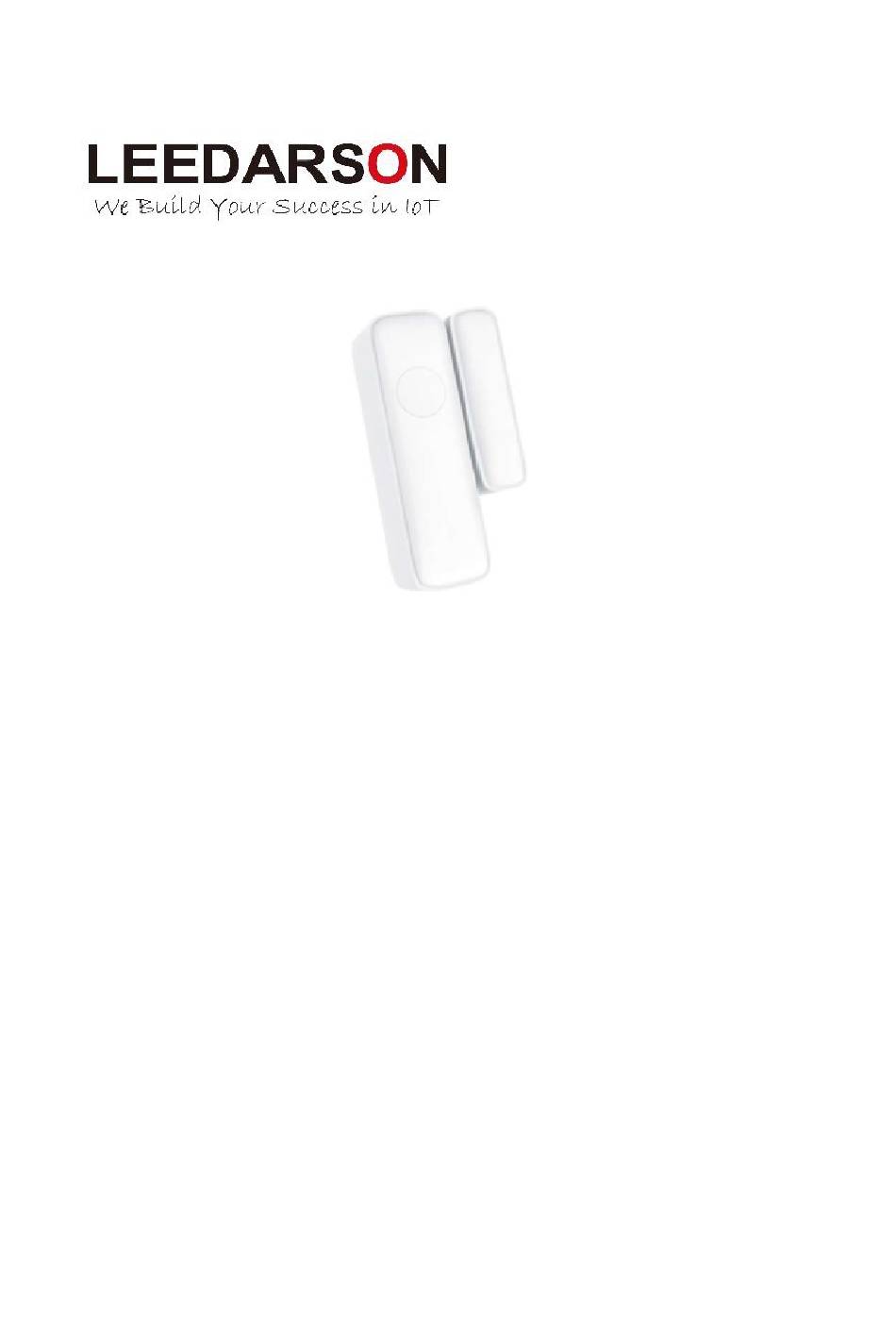

  • Page 1 Bypass Door Window Sensor Z-Wave 7AA-SS-VE-A0 Bypass Door Window Sensor Quick Start Guide 1. In The Box...

  • Page 2: Door/Window Sensor

     3. Product Introduction The Leedarson door window sensor is designed for use with scenes in home automation and security systems, the door window sensor lets you know when door or windows is opened and can trigger different actions in response to that open action (or close action).
  • Page 3 44.4(L)*15(W)*13(H) for Magnetic Part 4. Product Installation This product can be mounted by screws or 3M adhesive tape, install it according to the following step: ① Remove the plastic sheet for isolating battery from battery cabinet. ② Use a pin to reset the pinhole switch for 5 seconds to reset the sensor. The sensor will be in pairing status.
  • Page 4 5. Function of action Trigger Description On the network: Send Battery Report , Sensor Multilevel Report. and Wake Up Notification, LED keeps on 1 second. Power on Not On the network: LED slow blinks red 3 times and start SmartStart. Add the Door Sensor into the Z-Wave network via SmartStart: SmartStart Inclusion Add Door Sensor DSK into the primary controller SmartStart Provisioning List (If you...
  • Page 5 Short press Z-Button Add the Door Sensor into the Z-Wave network: one time Power on your Door Sensor, set your Z-Wave controller into add/inclusion mode. Trigger this action LED will flash green during the inclusion, and then solid green for 2 seconds to indicate the inclusion is successful, otherwise the LED will solid red for 2 seconds in which you need to repeat the process form step 2 Remove Door Sensor from a Z-Wave network:...

  • Page 6: Safety Information

    6. Safety Information Battery Safety Information: • This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep away from babies and small children at all times.

  • Page 7: Maintenance

    Disposal and Recycling Information: Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
  • Page 8 Z-Wave Plus Version 0x02 Role Type 0x06 (ZWAVEPLUS_INFO_REPORT_ROLE_TYPE_SLAVE_SLEEPING_REPOR TING) Node Type 0x00 (ZWAVEPLUS_INFO_REPORT_NODE_TYPE_ZWAVEPLUS_NODE) Installer Icon Type 0x0C06 (ICON_TYPE_SPECIFIC_SENSOR_NOTIFICATION_ACCESS_CONTROL) 0x0C06 (ICON_TYPE_SPECIFIC_SENSOR_NOTIFICATION_ACCESS_CONTROL) User Icon Type Z-Wave Plus Info Report Command Class ™...
  • Page 9 Association Command Class Door Sensor supports 2 association groups and max 5 nodes for each group. Grouping Identifier Max Node Send Commands Group 1 0x05 Notification Report. Sensor will send Notification Report when the supported event is triggered. Sensor Multilevel Report. Sensor will send Sensor Multilevel Report in the time set by configuration parameter 0x21/Power on will trigger Sensor Multilevel...
  • Page 10 Command SENSOR_MULTILEVEL_REPORT(0X05) Command Class COMMAND_CLASS_CENTRAL_SCENE_V3(0x5B) Command CENTRAL_SCENE_SUPPORTED_NOTIFICATION_V3(0x03) Group 2 Command List Support Command Class COMMAND_CLASS_BASIC(0x20) Command BASIC_SET(0x01) Notification Commands Notification Type Notification Event HOME_SECURITY (0x07) (0x00) Previous Events cleared (0X03) TAMPERING_COVERING_REMOVED ACCESS_CONTROL (0x06) (0x16) WINDOW_DOOR_IS_OPEN (0x17) WINDOW_DOOR_IS_CLOSE POWER_MANAGEMENT (0x08) (0x0A) REPLACE_BATTERY_SOON 10 (0x0B) REPLACE_BATTERY_NOW (0x00) Previous Events cleared SYSTEM (0x09)
  • Page 11 5.4 Wake Up Interval Capabilities Report CC Parameter Value WAKEUP_PAR_DEFAULT_SLEEP_TIME 0x5460 WAKEUP_PAR_MAX_SLEEP_TIME 0x015180 WAKEUP_PAR_MIN_SLEEP_TIME 0x14 WAKEUP_PAR_SLEEP_STEP 0x14 5.5 Manufacturer Specific Report Parameter Value Manufacturer ID 1 0x03 Manufacturer ID 2 0x00 Product Type ID 1 0x03 Product Type ID 2 0x00 Product ID 1 0x00...
  • Page 12 Central Scene( press central button ) 0x00(press 1 time) 0x01 0x01(release) 0x01 0x02(held) 0x01 0x03(press 2 times) 0x01 Parameter Number Definitions (8 bit) Parameter Default Description Size Number Value(dec 7210Range 0x01 Set the range about magnetic field Range: 0-the range of parameter 0x02 is 0x00000001-0x00004B00, the range of parameter 0x03 is 0x00000001-0x00002300.
  • Page 13 0x21 temp The interval time the Door Sensor reports the Multilevel Sensor Report to association group1 in minutes. 0x0F-0xFF 0xFE LockConfig Enable/Disable configuration set 0 – Enable. 1 – Disable. Name Info Paramet Default ReadOnl Format Altering Value(de Value(de Value(dec) capabilit Number 7210Range...
