Leedarson 7C-SS-VA-H0 Quick Start Manual

Motion sensor pet immunity z-wave
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
We build your success in IoT.
LEEDARSON Motion sensor Pet immunity_Z-Wave

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7C-SS-VA-H0 and is the answer not in the manual?

Questions and answers

Related Manuals for Leedarson 7C-SS-VA-H0

Summary of Contents for Leedarson 7C-SS-VA-H0

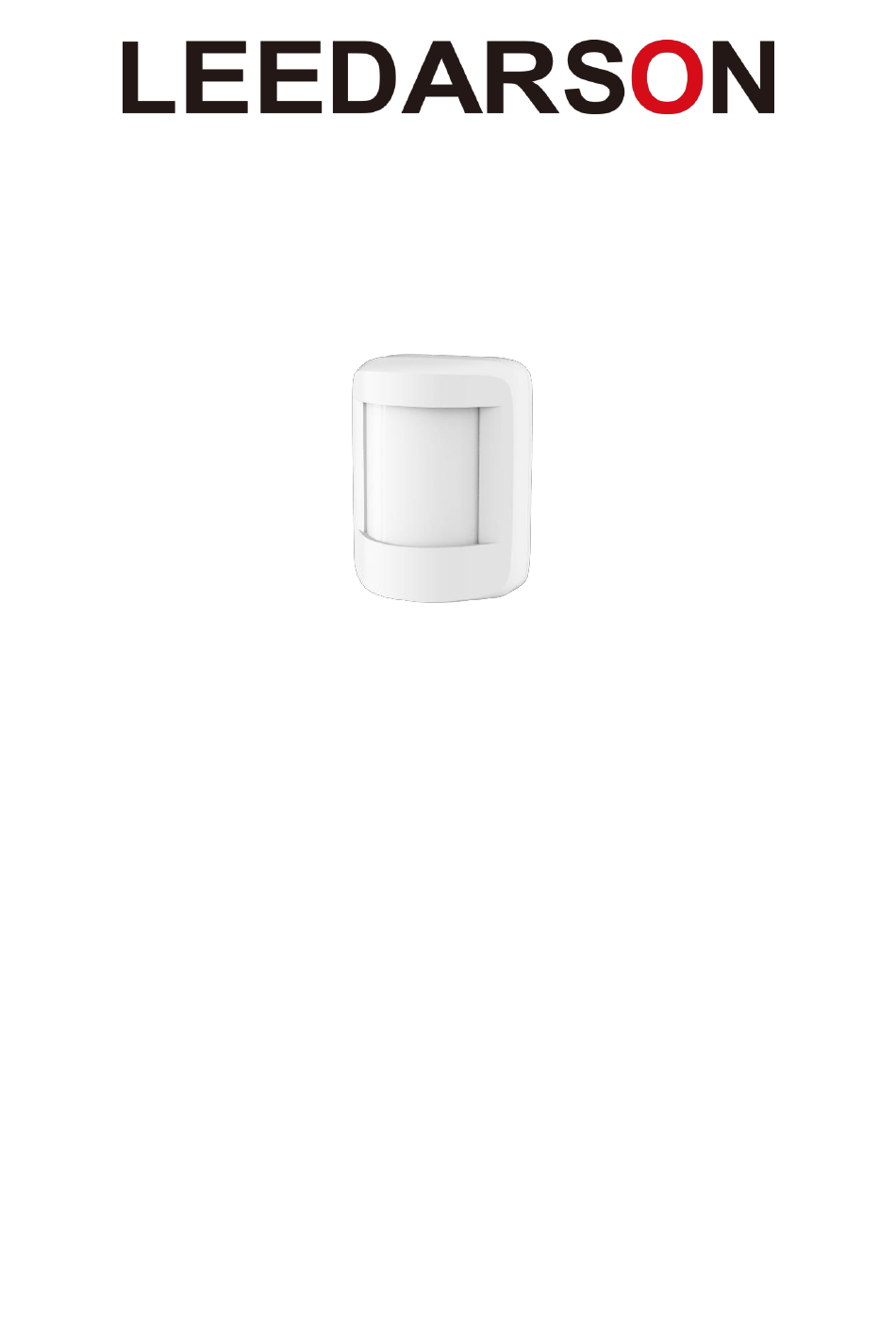

  • Page 1 We build your success in IoT. LEEDARSON Motion sensor Pet immunity_Z-Wave...

  • Page 2: Product Introduction

    Motion Sensor Pet immunity Quick Start Guide 1. Product Introduction The Motion Sensor lets you know when movement is detected in a certain area and can trigger different actions in response to that movement (or lack of movement). It supports the pet immunity up to 80 lbs. This sensor integrated Z-Wave communication module to connect with Z-Wave gateway, and this device can be adapted to EU(868.42Mhz) or US(908.42MHz).
  • Page 3 Button:  Short press reset button into learning mode, then the sensor can inclusion or exclusion from the Z-Wave network.  Hold the key for 5s to reset the sensor, after reset, Sensor will send “Device_Reset_Locally” to the main controller and exclude from the Z-Wave network when the Button is released, this procedure will reset the Sensor to factory default.
  • Page 4 Specification Detection angle 80 degrees Detection distance 8 meters / 26.25 feet Pet immune 80 lbs (36 kgs) Mounting height 6.23 ft. to 7.55 ft. (1.9m to 2.3m) Light sensor 20 lux for day/night(bright/dark) Z-Wave Protocol 908.42MHz (US) 868.42MHz(EU), 868.40MHz,868.42MHz, 869.85MHz 921.42MHz (AU) Power source Battery-powered...

  • Page 5: Installation Position And Notes

    3. Features/Capabilities:  Supports pet immunity up to 80 lbs (36 kgs)  Use PIR & Fresnel lens technology  Easy installation with bracket  Low battery alarm  Equipped with an anti-tamper switch that reports any tampering 4. Installation Position and Notes 1.

  • Page 6: Product Installation

    Side view Top view 2. Do avoid installation near air-conditioner, electric fans, refrigerators, ovens or other places where temperature easy change. 3. In order not to affect the detecting result, there should be no object in front of the produces lens. 4.

  • Page 7: Product Usage

    6. Product Usage Function of Action Button: 6.1 All functions of each trigger: Function Of Action Trigger Description In the network: Send Battery report and Wake up notification, the LED turn on within 1 second. Power on Not in the network: Only the LED turn on within 5 second. Add the Motion Sensor into the Z-Wave network: 1.
  • Page 8 In the network: Send Notification report and Sensor multilevel report and Basic set (Setup configuration parameter 0x0E to 0x01), and the LED will Motion is be blink 0.5 second. triggered Not in the network: NOP. In the network: Send Notification report, and the LED will be blink 0.5 Tamper switch is second.
  • Page 9 Installer Icon Type 0x0C07 (ICON_TYPE_SPECIFIC_SENSOR_NOTIFICATION_HOME_SECURITY) User Icon Type 0x0C07 (ICON_TYPE_SPECIFIC_SENSOR_NOTIFICATION_HOME_SECURITY) Association Command Class Motion Sensor supports 2 association groups and max 5 nodes for each group. Association Group Info Command Class Association Group Info Grouping identifier Group Name Profile MS Profile LS Lifeline 0x00...
  • Page 10 Wake Up Interval Capabilities Report CC Parameter Value WAKEUP_PAR_DEFAULT_SLEEP_TIME 0x0E10 WAKEUP_PAR_MAX_SLEEP_TIME 0x28DE80 WAKEUP_PAR_MIN_SLEEP_TIME 0x3C WAKEUP_PAR_SLEEP_STEP 0x3C Manufacturer Specific Report Parameter Value Manufacturer ID 1 0x03 Manufacturer ID 2 0x00 Product Type ID 1 0x03 0x00 Product Type ID 2 0x01 Product ID 1 0x00 Product ID 2...
  • Page 11 Setup the wait time of PIR for clear the motion. 0x0D (13) 0x001E Valid values: 0x05~0x3BC4 When the Motion Sensor is triggered, if this parameter is 0x01 then it will send Basic set command to group 1. 0x0E (14) 0x00 0 = Don't send.
  • Page 12 Secondly, the PIR detection area should not be shielded by other screen. Thirdly, if the operating temperature range is out of the defined range of product specification may result in some product faults, which is not in the technique commitment of manufacturer. Fourthly, this product has mot pet immunity function, so when some animals go through in front of the product may trigger PIR function reported.
