LEEDARSON Z-Wave Door/Window Sensor
Content:
Contact Sensor ................................................................................................................................................... 2
1. Product Introduction ............................................................................................................................ 2
2. Product Appearance ............................................................................................................................ 2
3. Specification ......................................................................................................................................... 3
4. Features/Capabilities: .......................................................................................................................... 3
5. Installation Position and Notes ............................................................................................................ 4
6. Product Installation .............................................................................................................................. 4
7. Product Usage ...................................................................................................................................... 5
8. Attention .............................................................................................................................................. 6
9. Z-Wave Command ................................................................................................................................ 7
7A-SS-VE-H0
Advertisement
Table of Contents
Related Manuals for Leedarson 7A-SS-VE-H0
Summary of Contents for Leedarson 7A-SS-VE-H0
-
Page 1: Table Of Contents

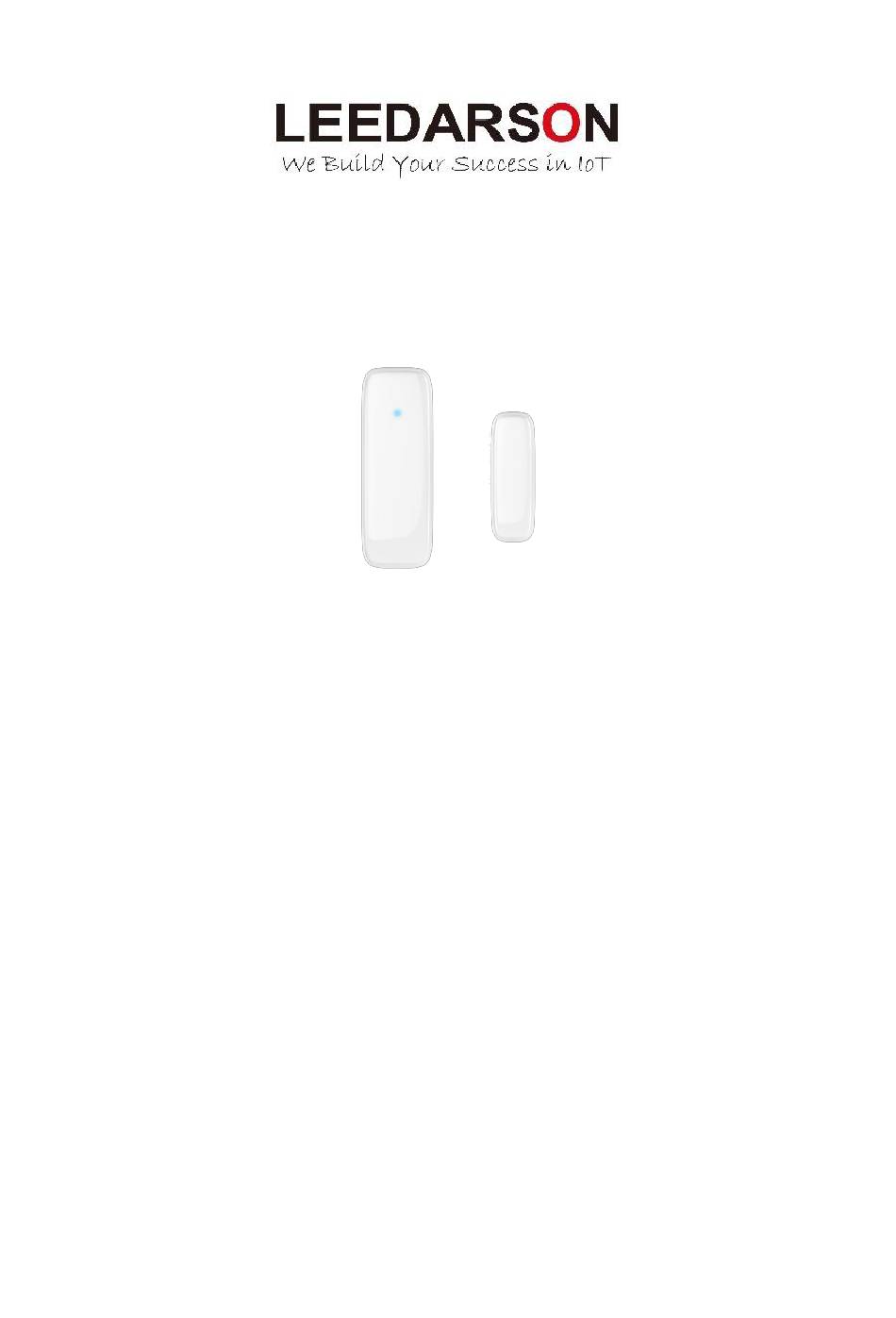

LEEDARSON Z-Wave Door/Window Sensor 7A-SS-VE-H0 Content: Contact Sensor ..............................2 1. Product Introduction ..........................2 2. Product Appearance ..........................2 3. Specification ............................3 4. Features/Capabilities: .......................... 3 5. Installation Position and Notes ......................4 6. Product Installation ..........................4 7. -
Page 2: Contact Sensor
Quick Start Guide 1. Product Introduction The LEEDARSON Door/Window Sensor is a wireless sensor that is powered by a CR2 battery. The door/window sensor lets you know when a door or window is opened, or closed, and can trigger different actions in response to that open action or close action. -
Page 3: Specification
4. The Sensor also anti-tamper functionality. Once the sensor is moved, it will notify the gateway. 5. The LEEDARSON Door/Window Sensor is powered by CR2 battery with 2 years battery life. 6. The LEEDARSON Door/Window Sensor is designed to be mounted on the door or windows. -
Page 4: Installation Position And Notes
5. Installation Position and Notes 1. The sensor should be used indoors and away from sources of moisture. 2. The magnet and the main sensor must be less than 2cm apart. Main sensor must be affixed to the door or window and the magnet must be affixed to the frame. The magnet and the main sensor must separate when the door or window is opened. -
Page 5: Product Usage
7. Product Usage 7.1 How to add (include) the Door/Window Sensor to a Controller/Gateway Door/Window Sensor Inclusion Procedure: Make sure the sensor is powered. 1. Set the Z-Wave network main controller into learning mode. 2. Short press the button one time. (within 1 second) 3. -
Page 6: Attention
7.4 Low voltage alarm to remind changing battery. This product has low voltage detection reminder, When the battery voltage is in low status, the detector will give out low battery signal to controller. 8. Attention 1. If the sensor needs to be cleaned, remove power and use a soft cloth with a little alcohol and wipe down the device. -
Page 7: Z-Wave Command
9. Z-Wave Command 9.1 Z-Wave Plus Device Type Device Type Basic Device Attribute Specific Device Attribute Role Type Sensor - Notification GENERIC_TYPE_SENSO SPECIFIC_TYPE_NOTIFICATI Reporting Sleeping R_NOTIFICATION ON_SENSOR Slave (RSS) 9.2 Command list Non-security device: The node info frame supports: COMMAND_CLASS_ZWAVEPLUS_INFO COMMAND_CLASS_VERSION COMMAND_CLASS_MANUFACTURER_SPECIF IC COMMAND_CLASS_NOTIFICATION... - Page 8 9.3 Command Explain 9.3.1 Z-Wave Plus Info Command Report Parameter Value Z-Wave Plus Version Role Type 6(ZWAVEPLUS_INFO_REPORT_ROLE_TYPE_SLAVE_SLEEPING_REPORTING) Node Type 0 (ZWAVEPLUS_INFO_REPORT_NODE_TYPE_ZWAVEPLUS_NODE) Installer Icon Type 0x0C06 (ICON_TYPE_SPECIFIC_SENSOR_NOTIFICATION_ACCESS_CONTROL) User Icon Type 0x0C06 (ICON_TYPE_SPECIFIC_SENSOR_NOTIFICATION_ACCESS_CONTROL) 9.3.2 Association Command Door/Window Sensor supports only one association group. Grouping Identifier Max Nodes Transmit Content...
- Page 9 9.3.4 Wake Up Command A) Press the study key three times for the Door/Window sensor to send a Wake Up Notification to the Gateway. Please make sure the Door/Window Sensor is added to the Z-wave network. B) How to use Wake Up Interval Set Command to set the Door/Window Sensor to automatic Wake Up. 1.
- Page 10 9.3.8 Version Report Commands Parameter Value (HEX) Z-Wave Protocol Library Type 0x03 Z-Wave Protocol Version 0x04 Z-Wave Protocol Sub Version 0x34 Firmware 0 Version Firmware Version Upper 8 bits Firmware 0 Sub Version Firmware Version Lower 8 bits Hardware Version 0x01 Number of firmware targets 0x00...
