CrystalView DVI CATx
Features and Benefits
Supports:
DVI-D video modes
PS/2 or USB keyboards and mice
Extend a KVM station from a CPU using
CATx cable up to 400 feet (120 m)
Video resolutions up to 1920 x 1200 @ 60Hz
Supports 18–Bit color (256,000 colors)
Single and Dual video models available
Optional serial support with rates up to 19.2KBaud
Optional bi-directional audio support
Compatible with all operating systems
Fully automatic KVM sharing
Status and Data error indicators on all units
Easy installation and operation
Rack mountable options
Note : CATx = CAT5, CAT5e, CAT6, or Cat7 cables
Digital CATx KVM extender
Extends keyboard, video, mouse, serial, and
audio signals up to 400 feet away
Supports DVI-D video at resolutions
up to 1920 x 1200 @ 60Hz
Serial and Audio capability (optional)
Supports CAT5, CAT5e, and CAT6 cables
PS/2 or USB keyboard and mouse support
Single or Dual video models
Easily adapted to your system
The CrystalView™ DVI CATx Advantage
The CrystalView DVI CATx is the KVM extender of choice
for businesses that need to extend and operate a
computer, server, or KVM switch from a great distance.
The CrystalView DVI CATx makes this possible by the use
of standard CAT5, 5e, 6, or 7 cable. You can fully operate
and control a computer or server from as far away as 400
feet using standard CATx cable. It supports all
combinations of DVI-D monitors and video cards.

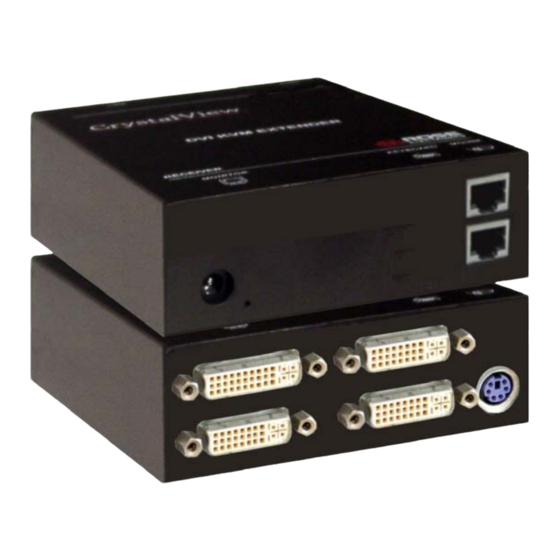

The system consists of two units; a transmitter and a
receiver. The transmitter connects to your CPU's
keyboard, DVI-D monitor, and mouse connectors, or to a
Rose KVM switch. The receiver connects to a keyboard,
DVI-D video monitor and mouse or KVM station. The
transmitter and receiver are connected together with CATx
industry standard cable. The receiver can be up to 400
feet from the transmitter using CAT5, 5e, 6, or 7 cables.
All models are available with both transmitter and receiver
KVM access. The transmitter's KVM access allows an
additional KVM station to be connected to the transmitter
unit. If your system requires dual video, the CrystalView
DVI CATx dual video model can fully support it. If you
need to extend your serial device or audio the CrystalView
DVI CATx serial and audio model can support this feature.
Standard CATx cable
W W W . R O S E . C O M
