prestige

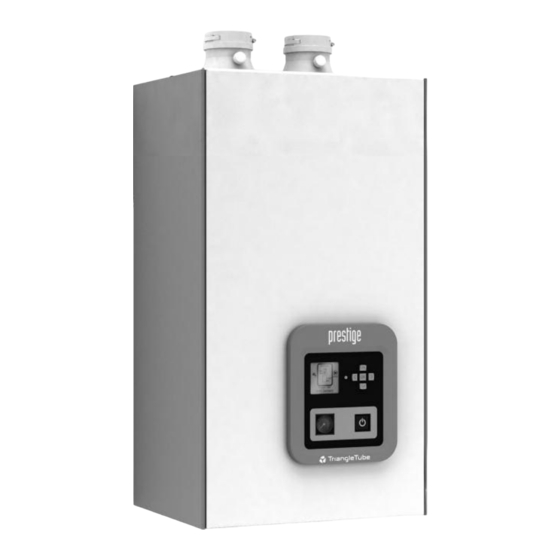

Solo 110LC
Water Boiler
* I N S T A L L A T I O N A N D M A I N T E N A N C E *
* I N S T A L L A T I O N A N D M A I N T E N A N C E *
Warranty Registration Card must be filled out by the customer and mailed within thirty (30) days of installa-
NOTI E
tion in order to gain warranty coverage.
When receiving the PRESTIGE Solo unit, any claims for damage or shortage in shipment must be filed
immediately against the transportation company by the consignee.
Leave all documentation received with appliance with owner for future reference.
If the information in this manual is not followed exactly, a fire or explosion may
WARNING
result causing property damage, personal injury or death.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of
• WHAT TO DO IF YOU SMELL GAS
Installation and service must be performed by a qualified installer, service agency or the
gas supplier.
Date: 7/19/12
M A N U A L
M A N U A L
this or any other appliance.
- Do not try to light any appliance
- Do not touch any electrical switch; do not use any phone in your building.
- Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
- If you cannot reach your gas supplier, call the fire department.
FOR YOUR SAFETY
2012-41 Manual Prestige 110LC_TriMax
