Rose electronics RackView RV2-KVM15 Specifications

RackView

Features and Benefits

The RackView Multi-Media is available with a
15" LCD monitor, full size keyboard, trackball,
stereo speakers, built-in TV tuner and a remote
control
Model features HD-15 and DVI-D inputs
On-screen display for adjusting all settings
Resolutions up to 1024 x 768 @ 60Hz
Provides a sharp, clear display
Integrated, high-quality 16 mm trackball
Keyboard uses Gold Cross-point contacts that
provide for extremely high reliability
PS/2 or USB connections
Fits in a standard 19" rack
Remote control unit for adjusting and channel
changing
Easy to install
Made in USA
Multi-Media

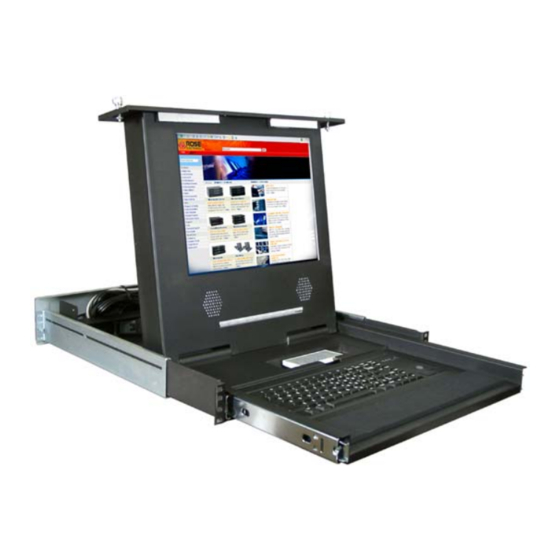

Rack mounted Multi-Media KVM Station
2U - High resolution TFT/LCD monitor
HD15, RCA, and S-Video connectors
Needs only 2U of rack space
Available with 15" LCD monitor
Trackball mouse
Built-In TV tuner and stereo speakers
The RackView™ Multi-Media Advantage
The RackView Multi-Media is an innovative, space saving
design that puts your monitor, keyboard, mouse,
speakers and a tuner neatly in 2U of rack space.
It can be placed at any height within a standard 19" rack.
This offers the operator the maximum viewing comfort
and takes up a minimum amount of rack space. The front
panel conceals the unit when it is not in use.
The RackView Multi-media can be connected to a KVM
switch (optional). This offers single or multiple user
access to as many as 1,000 servers or computers. Rose
Electronics KVM switch options are fully expandable and
when combined with the RackView Multi-Media, your
system becomes a versatile, distributed matrix controlled
system with multi-user capability, controlled access to
the servers, and many other features.
PC, UNIX, Sun, Apple, and USB computers can easily be
connected and monitored locally using the RackView
Multi-Media.
Use the remote control to
view Television programs
and adjust video
