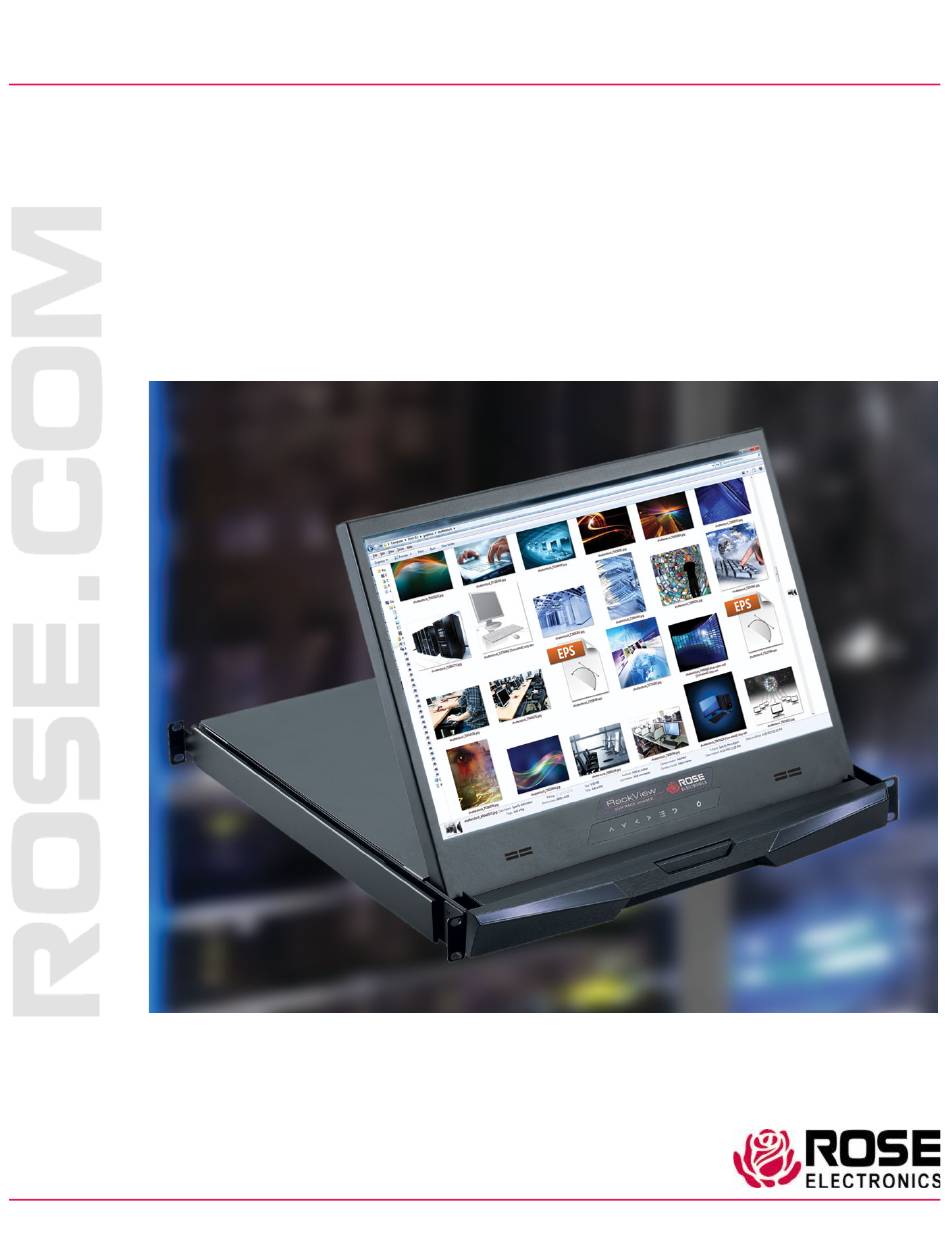

- Page 1 RackView LCD Drawer Rack Mount LCD Sliding Drawer Installation Operation Manual 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 techsupport@rose.com...
- Page 2 RackView LCD Drawer to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
- Page 3 DECLARATIONS OF CONFORMITY This is to certify that, when installed and used according to the instructions in this manual, the units listed and described here are shielded against the generation of radio interferences in accordance with the application of Council Directives 2014/30/EU and 2014/30/EU, as well as these standards: ■...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Contents Disclaimer System Introduction Features RackView LCD Drawer Options Package Contents Additional Items Required Before Installation RackView LCD Drawer Models RackView LCD Drawer - Rear Connector Layout RackView LCD Drawer Chassis Dimensions Operating the RackView LCD Drawer OSD Operation PIP and PBP Operation Safety... -
Page 5: Table Of Contents
TABLE OF CONTENTS Appendix C — Weight and Dimensions Appendix D — Touchscreen Options Appendix E — RackView LCD Drawer Video Options Appendix F — RackView DC Power Options... -
Page 6: Disclaimer

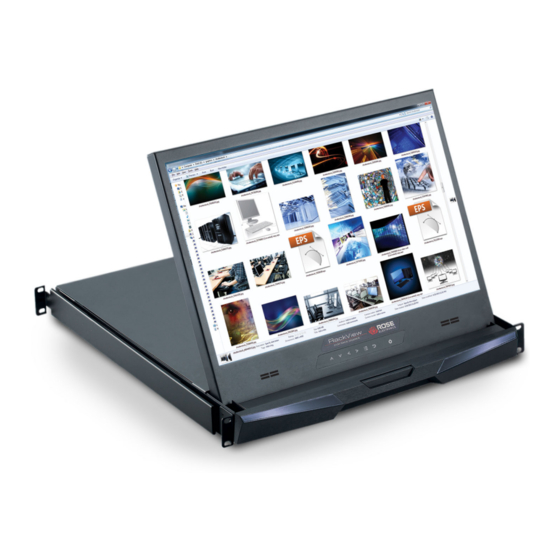

(See limited warranty). System Introduction Thank you for choosing the Rose Electronics RackView LCD drawer. The RackView drawer is available in several different high-performance LCD display sizes. All RackView drawers are rack-mountable and operation follows the same general procedure for each LCD drawer type. -
Page 7: Package Contents
Additional Items Required Depending on the installation environment, a longer video cable may be required. The standard cable length is 6ft (2.0m). Longer cable lengths of 10ft and 15ft are available from Rose Electronics. Before Installation It is very important to mount the equipment in a suitable cabinet or on a stable surface. -
Page 8: Rackview Lcd Drawer Models
MODELS RackView LCD Drawer Models The RackView LCD drawer is available in seven different models. The main differences between each of the models is the display size and video resolution capabilities. There are several options available that can differ with each model of the RackView LCD drawer. The options for each model are explained in the Appendix pages of this manual. -
Page 9: Rackview Lcd Drawer Chassis Dimensions
RackView LCD Drawer Chassis Dimensions The top and front dimensions of each of the RackView LCD drawers are shown below in millimeters RackView LCD drawer 17", 19" RackView LCD drawer 17"HD, 17” FHD, 17”4K RackView LCD drawer 19" Widescreen RackView LCD drawer 20" Figure 3. - Page 10 INSTALLATION AND OPERATION Installation steps for RackView LCD drawers - 17", 19", 17" Widescreen, 17" FHD, 19" Widescreen Step 1 Insert the left and right rear mounting brackets into the RackView chassis Step 2 Measure the depth of the rack between the front and rear mounting rails.
-
Page 11: Figure 4. Installation Steps For Mounting The Rackview Lcd Drawer
Installation steps for RackView LCD drawer 20" Step 1 Attach the left and right mounting rails to the rack. Adjust the length of the mounting rails to fit the rack depth Leave the M6 screws slightly loose until completion of Step 3. -
Page 12: Operating The Rackview Lcd Drawer
Operating the RackView LCD Drawer OSD Operation The OSD (On-Screen Display) is activated by pressing the membrane buttons on the front of the display frame. The push-button membrane control panel may be mounted horizontally or vertically on the LCD drawer, however the OSD operation is the same for all models. -
Page 13: Figure 6. Osd Configuration And Settings
OSD configuration and settings Picture Picture mode: Standard / Vivid / Soft / User mode to choose Brightness: Adjust background black level of the screen image Contrast: Adjust the difference between the image background (black level) and the foreground (white level) Hue: Adjust the screen hue value Saturation: Adjust the saturation of the image color... -
Page 14: Pip And Pbp Operation
PIP and PBP Operation PIP (Picture-In-Picture) and PBP (Picture-By-Picture) settings are available for the following models; a) RackView LCD drawer 17” HD Widescreen b) RackView LCD drawer 17” FHD The PIP/PBP will only function when 2 video sources are configured on the RackView LCD drawer chassis. PIP and PBP Settings PIP Mode Display the Sub screen in the Main screen. -
Page 15: Figure 8. Pip And Pbp Video Sources
PBP Size Adjust the size of the Sub-screen (Large/Small) OSD Menu --- MISC --- PBP Mode --- Large/Small PIP / PBP Source To select an input signal for PIP / PBP Sub screen. OSD Menu → MISC → PIP Source → VGA / S-Video / Composite / DVI / HDMI / SDI / YPbPr / TV Figure 8. -
Page 16: Safety
PRODUCT SAFETY Safety The RackView LCD drawer, like all electronic equipment, should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. Follow all instructions and warnings marked on this Unit. ... -
Page 17: Maintenance And Repair
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. -
Page 18: Appendices
APPENDICES Appendix A — Specifications RackView LCD Drawer - 17" Models RackView LCD drawer 17" 4K 17" LCD 17" Widescreen LCD 17" HI-RES LCD Dimensions (in) 17.4×18.9×1.73 17.4×19.7×1.73 17.4×18.9×1.73 17.4×18.9×1.73 441.6×480×44 441.6×500×44 441.6×480×44 441.6×480 ×44 W x D x H (mm) Weight 24.2lbs (11kg) 23lbs (10.5kg) -
Page 19: Table 1. Rackview Lcd Drawer - Weights And Dimensions
Appendix B — Part Numbers RV1-LCDA17/4K/Kn 17" LCD drawer 4K, 3840×2160, DisplayPort RV1-LCDA17/Kn 17" LCD drawer 1280×1024, VGA and DVI RV1-LCDA17/DWS/HD/Kn 17" LCD drawer Widescreen, 1080p, VGA and DVI RV1-LCDA17/FHD/Kn 17" LCD drawer Full HD, 1920×1200, VGA and DVI RV1-LCDA19/Kn 19"... -
Page 20: Figure 9. Schematic Showing The Back Panel With The Touchscreen Option (Usb-A) Installed
Appendix D — Touchscreen Options RackView LCD Drawer with Touchscreen The RackView LCD drawers can be ordered with optional USB-HID touchscreen support. In most cases, the touchscreen can be either Resistive or Capacitive type, as shown in the table below. The RackView with touchscreen option includes a 6ft (2.0m) USB cable and a CD including operating instructions. -
Page 21: Figure 10. Touchscreen Setup Procedure
Figure 10. Touchscreen setup procedure Appendix E — RackView LCD Drawer Video Options RackView Video Options with HDMI, S-Video/BNC and 3G/SDI Video Interface The following video options are available with the range of RackView drawer products The RackView 17" 4K drawer has a DisplayPort 4K video interface as standard. All other RackView drawers have DVI and VGA as the standard video interface. -
Page 22: Figure 11. Back Drawer Of The Rackview Lcd Drawer Showing Standard And Optional Connectors
RackView LCD Drawer Options – Rear Panel Layout View RackView LCD drawer DVI / VGA (Standard) Resolutions up to 1920×1200 DVI and VGA RackView LCD drawer HDMI/VGA/Audio Option Resolutions up to 1920×1080 VGA, HDMI and Audio option RackView LCD drawer HDMI/S-Video/BNC Option Resolutions up to 1920×1080 VGA, HDMI, BNC, Audio option... -
Page 23: Table 5. Dvi-D, Vga, And Hdmi Video Formats
Video Formats (DVI-D and VGA) DVI-D / VGA Input PC Signal Resolution/Refresh Rate Applies to 20" model only Applies to 20" model only 1600 x 1200 x 60Hz Applies to 20" model only Applies to 20" model only 1400 x 1050 x 60Hz Applies to 20"... -
Page 24: Figure 12. Rackview Lcd Drawer With Dc Power Connector Fitted
Appendix F — RackView DC Power Options RackView DC Power The RackView LCD drawers can be ordered with optional DC power input as specified in the table below. Select the DC voltage required, then add the voltage to the RackView part number as /nnnDC For example, adding 48VDC to a RackView 17”... - Page 25 ▪ ▪ WWW.ROSE.COM sales@rose.com (800) 333-9343 ▪ ▪ Rose Electronics 10707 Stancliff Road Houston, Texas 77099 Rose USA (281) 933-7673 ▪ Rose Europe +49 (0) 2454 969442 ▪ Rose Asia +65 6324 2322 Rose Australia +61 (0) 421 247083 WWW.ROSE.COM...
