Paradox NV35X - Window And Sliding Door Detector With Pet Immunity Manual

General Description

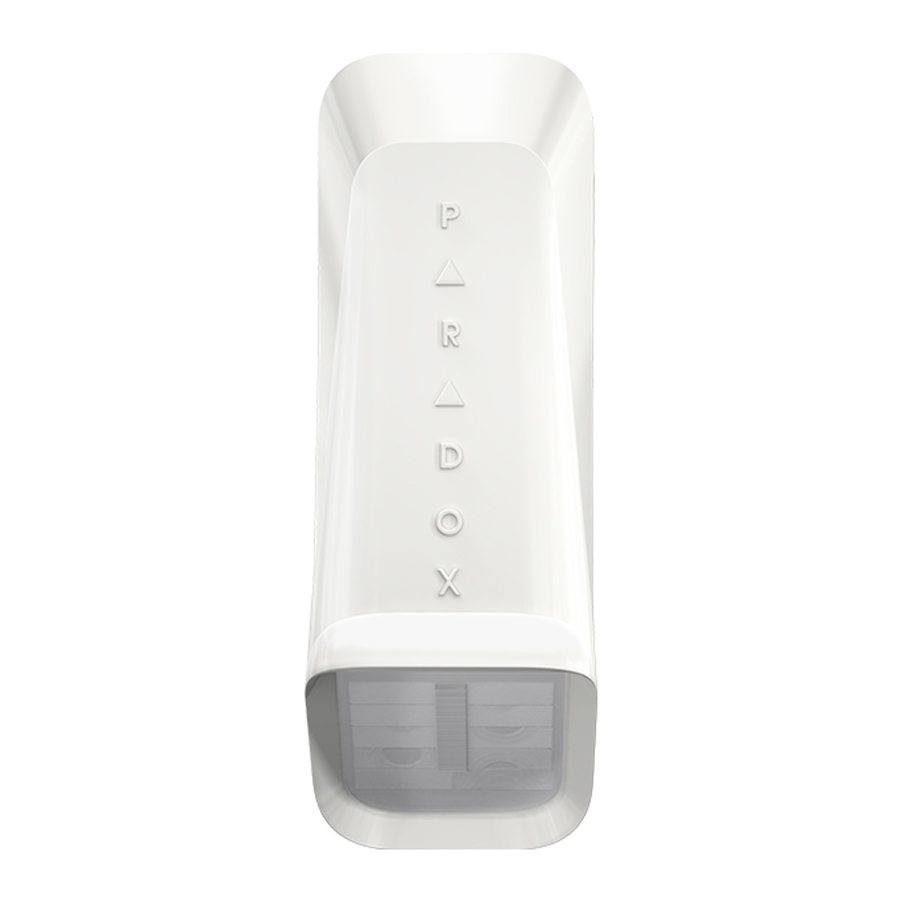

Thank you for choosing the NV35MX for your professional protection needs. The NV35MX EVO version will provide you the most advanced window and sliding door protection either in Pet Immune or Sharp mode, while programming can be done remotely via EVO bus connection. If you have any comments please write to us at Paradox.com/products/feedback.This guide describes how to install and program the NV35MX.

Pet Recommended Installation

The NV35MX has been designed to be installed within the frame of windows and doors when installed outdoors. This will ensure the best performance against false alarms when random pets such as birds, cats and small dogs access the window sill. Other installation methods can be used with the NV35MX such as wall beam protection but if installed outside of the frame its pet immunity may be compromised.

Installing the Device

1. Remove the NV35MX front cover - open the Captive screw.

2. Remove the Main Unit: open the two snap-lock mechanisms on each side of the back cover attaching the Main Unit to the back cover as displayed below. Then remove the Main Unit.

3. Pull the wires from the control panel through the knockout holes and mount the back cover onto the window frame or wall using screws.

4. Attach the Main Unit to the back cover - ensure the locks snap closed.

5. Connect the wires to the terminal blocks according to the following wiring assignment.

Table 1: Wiring Assignment

6. Replace the front cover and close the Captive screw.

Do not obscure the detector's field of view.

Programming the Device

Program the detector with a keypad or BabyWare software.

Programming with a Keypad

1. Enter EVO Installer Programming Mode.
2. Enter Module Programming:
   1. Enter section [4003] in the Enter Section field.
   2. Enter the detector's 8-digit [SERIAL NUMBER].
   3. Enter the 3-digit [SECTION] number you want to program.
3. Program required functions in section [001] (table 2), section [002] (table 3) and section [003] (table 4) below.

Table 2: Section [001]

Table 3: Section [002]

Table 4: Section [003]

Programming with BabyWare

1. Open BabyWare.
2. Select the detector and set zone type.
3. Right-click on the detector to open detector Programming.

4. Configure the required settings.

Testing the Unit

Perform a Walk-Test to test successful installation: Walk slowly across the far end of the detection range. Ensure detection.
Walk test mode lasts 5 minutes after the tamper screw is closed.

LED Display

Technical Specifications

Beam Pattern

PET Mode

SHARP Mode

Top View

PET Immunity Mode Installation

Notifications

Changes or modifications to this equipment not expressly approved by the party responsible for compliance (Paradox Security Systems Ltd.) could void the user's authority to operate the equipment.

Warranty

The Limited Warranty Statement found on the website www.paradox.com/terms.

Patents

Your use of the Paradox product signifies your acceptance of these terms and conditions. The following US patents may apply 5,886,632 and 6,215,399. Other Canadian and international patents may apply.

Printed in Canada 08/2015
