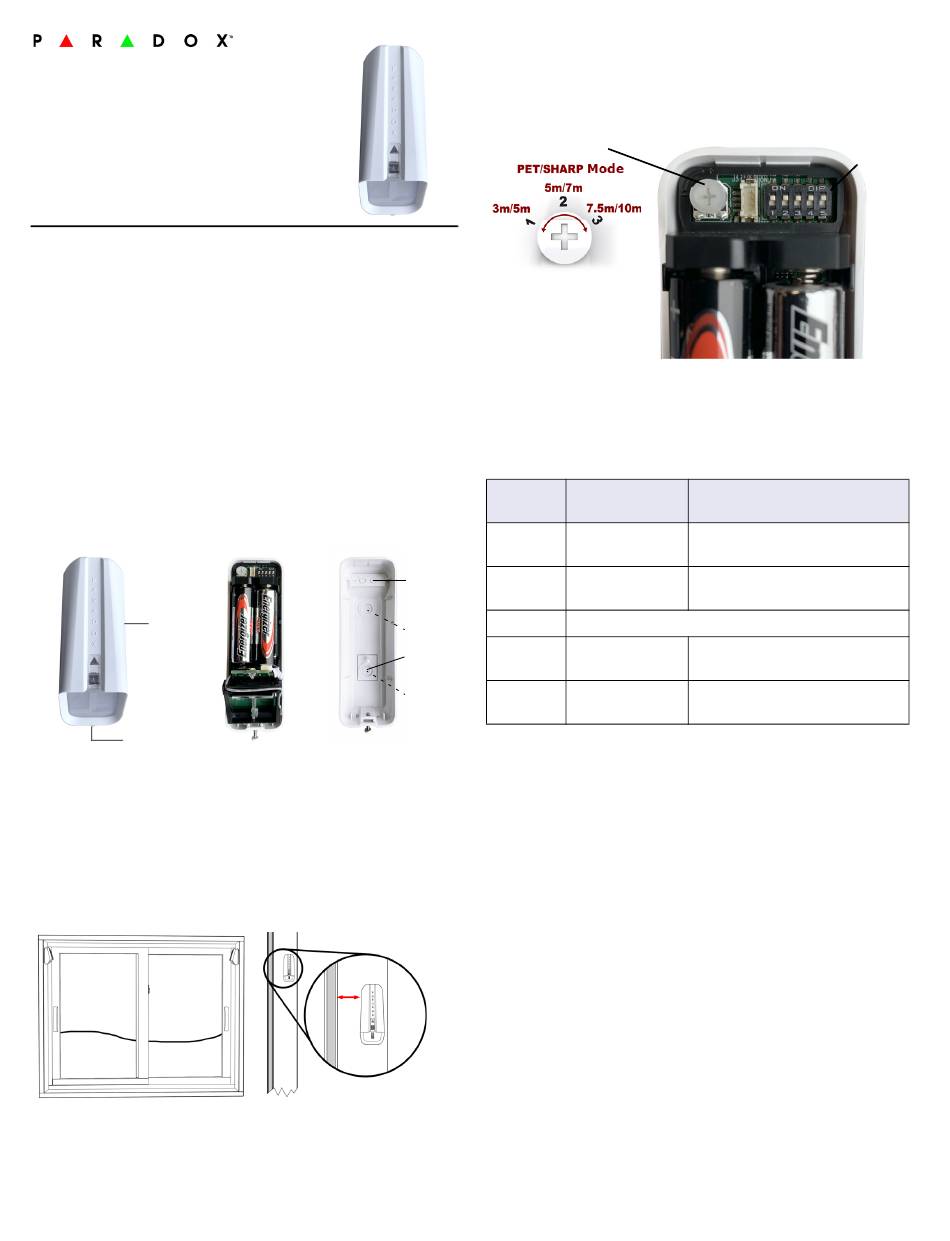

Paradox NV37MR Installation Manual

NV37MR
Installation Manual
Wireless Outdoor/Indoor Window
and Sliding Door Dual Detector with
Anti-Masking and Pet Immunity

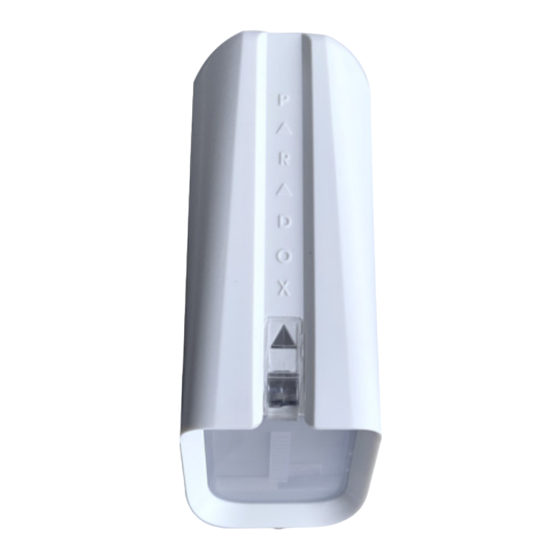

General Description NV37MR
Thank you for choosing the NV37MR Wireless for your professional
protection needs. The NV37MR wireless version will provide you the
most advanced window and sliding doors protection either in Pet
Immune or Sharp mode. If you have any comments please write to us
at Paradox.com/products/feedback.
Recommended Installations (please read)
Outdoor installation permits placements within frames of sliding
windows or doors and presumes protection from raindrops. This
ensures best catch performance, anti-masking ability, and pet alarm
immunity.
Other installations are possible but in outdoor conditions, pet immunity
can decrease. Moreover, space near the detector must be clear from
obstacles from a distance of 30 to 40 cm (11.8 to 15.7 in.) within its
pattern.
Installing the NV37MR
1. Remove the front cover - open the Captive screw.
Front
cover
Captive screw
Figure 1 – Front Cover Figure 2 – Main
2. Remove the Main Unit: open the two snap-lock mechanisms on
each side of the back cover attaching the Main Unit to the back
cover, then remove the Main Unit.
3. Mount the back cover of the NV37MR onto the window frame or
wall using screws.
Note: PLEASE KEEP AT LEAST 4 cm / 1.5 in. clearance from
window/shutter.
An optional mounting bracket for the NV37MR is available for
ordering, part number: SB35.
NV37MR-EI00 03/2022
Knockout
holes
Mounting
screw
Tamper
knockout
hole
Tamper
screw
Figure 3 – Back Plate
Unit
4 cm /
1.5 in.
4. Attach the Main Unit to the back cover - ensure the locks snap
closed.
5. Insert two AA batteries.
6. Set the following Detector settings according to requirements.
Sensitivity Trimmer
Default Sensitivity level: 2
LED flashes green 1-3 times
according to the selected level.
Figure 4 – Detector Settings
The following table displays the Dip Switch settings.
Table 1: DIP Switch Functionality
Dip Switch
Function
Number
1 LED
2 PET Immunity/
SHARP Mode
3
4 Anti-mask
5 Anti-mask
Sensitivity
7. Close the front cover and tighten the captive screw.
Note: Do not obscure the detector's field of view.
Note: On MG/SP panels, the anti-masking is reported as a tamper.
Tamper recognition must be enabled in panel programming.
On EVO panels, it is reported as anti-masking if it is enabled in
the panel programming.
Testing the NV37MR
Perform a Walk-Test to test successful installation:
1. Walk slowly across the far end of the detection range.
2. Ensure detection.
Walk test mode lasts 5 minutes after the tamper screw is closed.
Learning the NV37MR
For more information on configuring the NV37MR via the panel, refer
to the panel's respective programming guide.
1. Enter the appropriate section number.
2. To learn the module, loosen the captive screw until the tamper is
open. After the module is learned, tighten back the captive screw.
DIP
Switches
Mode Description
: LED on (default)
ON
: LED off
OFF
: PET Immunity mode (default)
ON
: SHARP mode
OFF
For future use
: On (default)
ON
: Off
OFF
: High (default)
ON
: Low
OFF
