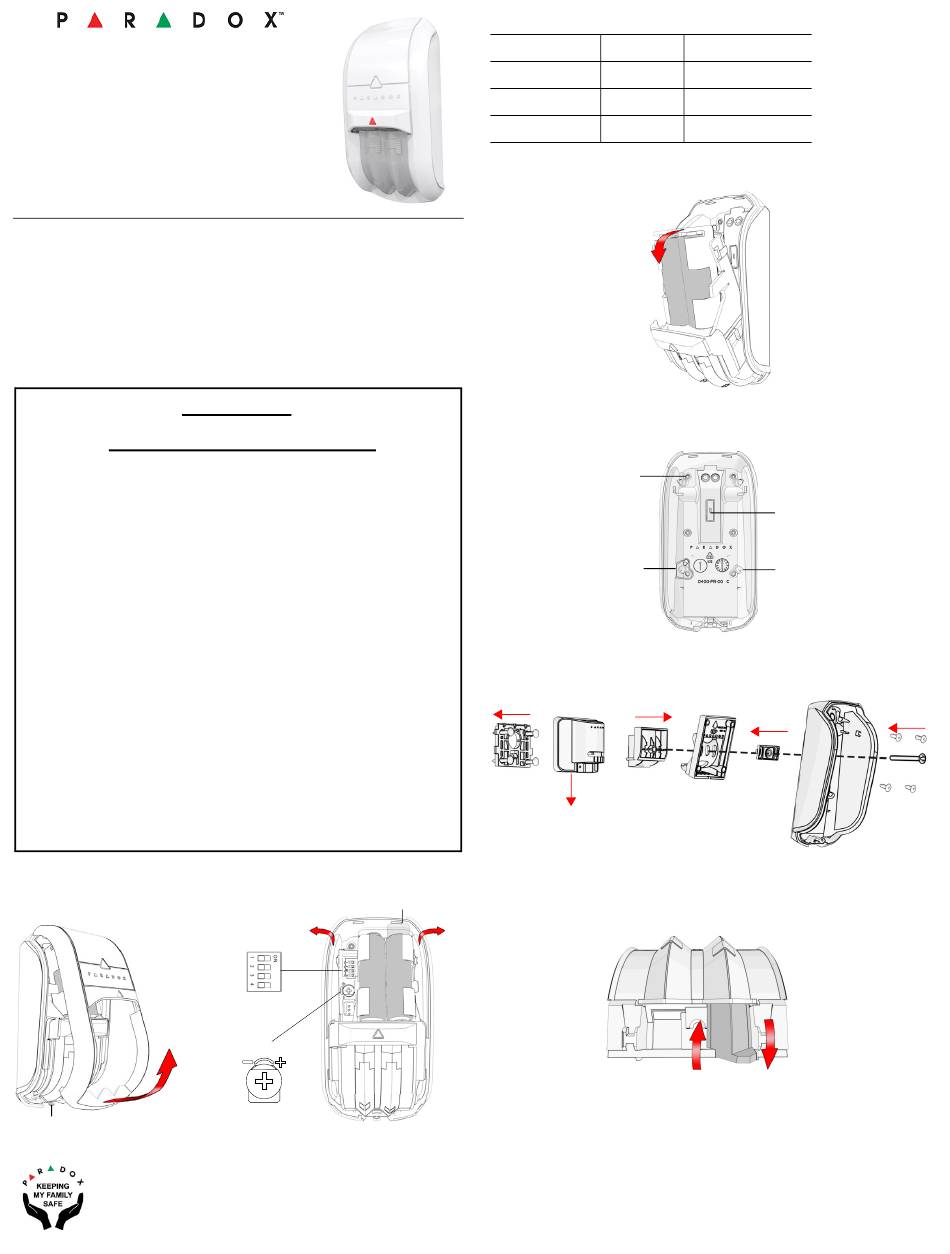

Paradox NV75MR Installation Manual

NV75MR
Installation Manual V1.0
Wireless
16 Meter Indoor Dual
Mironel Optics, Anti-Mask,
Pet Immunity Dual Detector
General Description
The NV75MR is an indoor industry-leading wireless detector
providing superior 16 meter detection with rock solid stability
thanks to the revolutionary dual Mironel Mirror/Fresnel PIR
optics. Combined with Paradox true Pet Immunity and best-
in-the industry active Anti-Mask technology (EN Grade 3).
The NV75MR provides an unmatched high security solution
for any indoor installation.
Please Read
Installing the NV75MR (Step 1)
Installation Height:
Pet Immune ON - 2.0m/6.6ft to 2.4m/7.8ft
Pet Immune OFF - 2.0m/6.6ft to 2.8m/9ft (lever down)*
*For installations higher than 2.6m, when needed, tilt
the detector down a few degrees for best detection
results; use of a bracket is recommended.
Power Up (30 sec.):
Powering up the detector takes about 30 seconds,
indicated with green/red flashing; indicates PIR
stabilizing.
Anti-Mask Calibration:
Once detector is stabilized, as mentioned above, open
and close the tamper to initiate. Anti-Mask calibration
may take up to 60 seconds. Keep away from the
detector, at least 2 meters / 6 feet during calibration,
indicated by flashing green/red LED. Once completed,
the detector is ready.
Step 1
Cover Tamper
paradox.com
Step 2
Battery Tab
OFF ON
DIP Switch
(Table 1)
11m
9m 13m
16m
7m
PIR
SENSITIVITY
Table 1
1 - LED OFF
2 - EDGE DUAL
3 - PET IMM. OFF
4 - MHz 868 MHz
Step 3
Wall Mount
Wall Mount x6
Tamper Screw
Wall/Corner
Bracket Mount
1
3
2
Creep Zone/Pet Selection
UP - Pet
Remove detector assembly as described in Step 1. When
selector is UP, Pet Mode; when DOWN, Creep Zone is
active and there is no Pet Immunity. Above 2.4m Pet
Immune should be OFF (lever down Pet OFF, see
installation height note*.
ON
SINGLE
ON
433 MHz
Bracket Adjustment
Screw Opening
Corner Mount
x4
4
DOWN - Creep
NV75MR-EI00 07/2016
5
