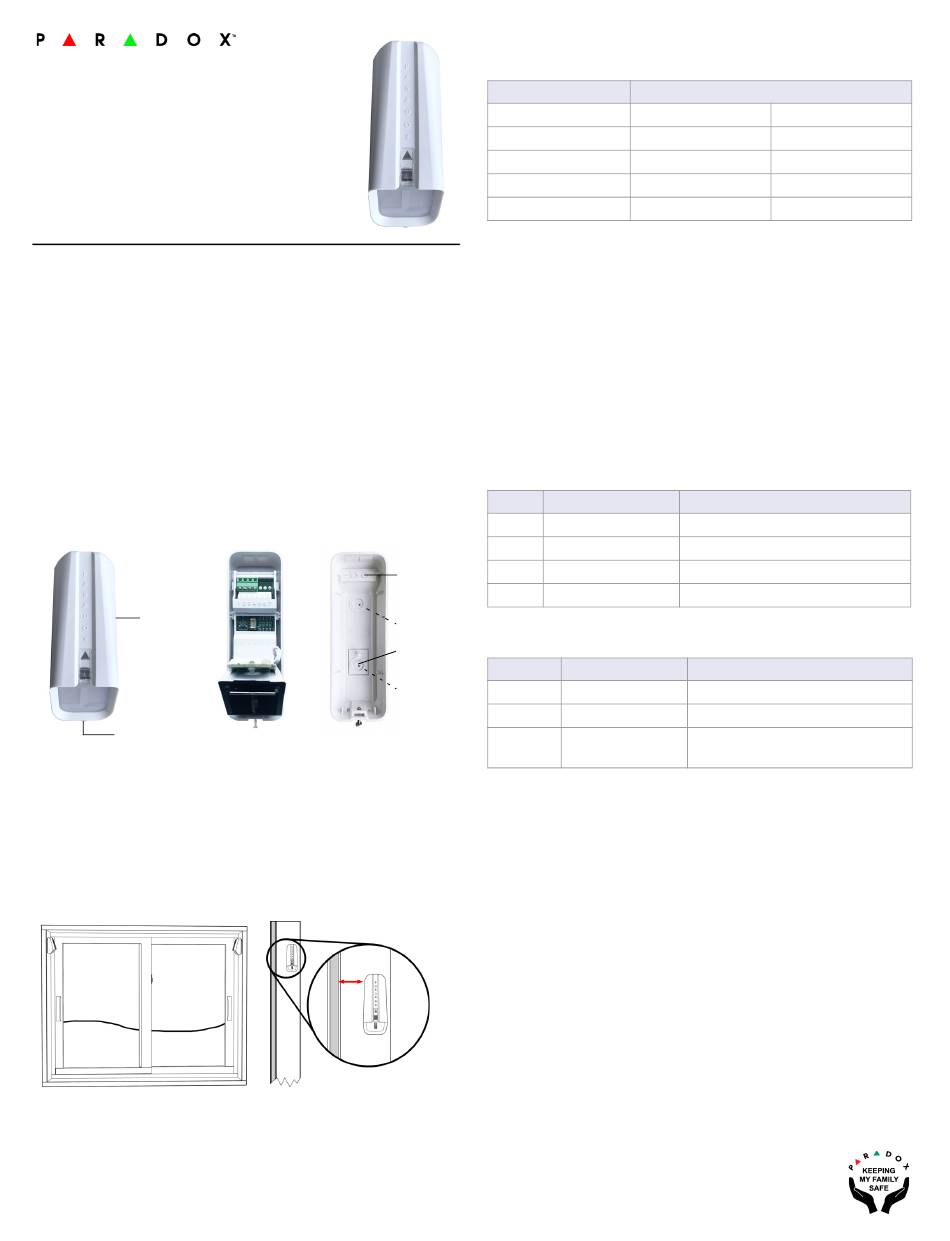

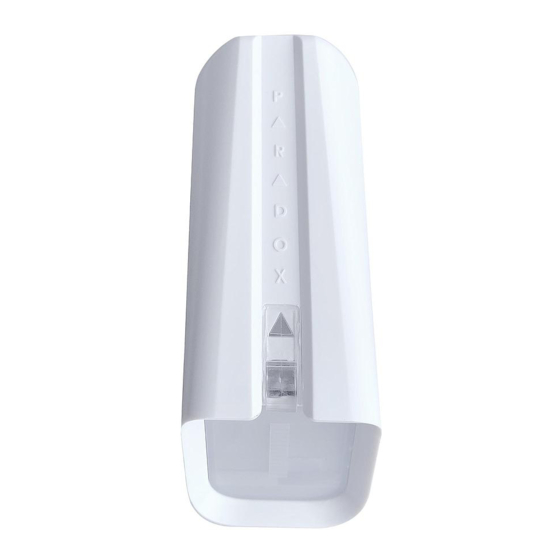

Paradox NV37MX Installation Manual

NV37MX
Installation Manual V1.0 BETA
Outdoor/Indoor Window and Sliding Door
Dual Detector with Anti-Masking and Pet
Immunity
General Description
Thank you for choosing the NV37MX for your professional protection
needs. The NV37MX EVO version will provide you the most advanced
window and sliding door protection either in Pet Immune or Sharp
mode, while programming can be done remotely via EVO bus
connection. If you have any comments please write to us at
Paradox.com/products/feedback.
Pet Recommended Installation (please read)
The NV37MX has been designed to be installed within the frame of
windows and doors when installed outdoors. Make sure that the unit is
not directly exposed to rain; this will ensure the best performance
against false alarms when random pets such as birds, cats and small
dogs access the window sill. Other installation methods can be used
with the NV37MX such as wall beam protection but if installed outside
of the frame its pet immunity may be compromised.
Installing the NV37MX
1. Remove the NV37MX front cover - open the Captive screw.
Front
cover
Captive screw
Figure 1 – Removing the Figure 2 – Main
Front Cover
2. Remove the Main Unit: open the two snap-lock mechanisms on
each side of the back cover attaching the Main Unit to the back
cover as displayed below. Then remove the Main Unit.
3. Pull the wires from the control panel through the knockout holes
and mount the back cover onto the window frame or wall using
screws.
Note: PLEASE KEEP AT LEAST 4 cm / 1.5 in. clearance from
window/shutter.
An optional mounting bracket for the NV37MX is available for
ordering, part number: SB35.
4. Attach the Main Unit to the back cover - ensure the locks snap
closed.
Knockout
holes
Mounting
screw
Tamper
knockout
hole
Tamper
screw
Figure 3 – Back Plate
Unit
4 cm /
1.5 in.
5. Connect the wires to the terminal blocks according to the following
wiring assignment.
Table 1: Wiring Assignment
Terminal Connector Recommended Wiring Assignment
Bus Label
1 12V+
2 Minus (-)
3 Data
4 Clock
6. Replace the front cover and close the Captive screw.
Note: PLEASE KEEP AT LEAST 4 cm / 1.5 in. clearance from
window/shutter.
Do not obscure the detector's field of view.
Programming the NV37MX via Keypad or
BabyWare
Via Keypad
1. Enter EVO Installer Programming Mode, programming section 4003.
2. Enter the detector's 8-digit Serial Number. Enter the 3-digit
Section as per Table 2.
:
Section [001]
Bit Function
LED Display Alarm
[1]
LED Display Trouble O
[3]
Anti-mask
[5]
Anti-mask Sensitivity O
[6]
Section [002]:
Bit Function
[1] Unit Tamper
[2] Wall Tamper
[3] PET Immunity
:
Section [003] 00 (Low), 01 (Medium), 02 (High)
Via BabyWare
1. Double-click the serial number of the NV37MX to open the
detector's programming.
2. Configure the required settings.
Testing the NV37MX
Perform a Walk-Test to test successful installation: Walk slowly across
the far end of the detection range. Ensure detection.
Walk test mode lasts 5 minutes after the tamper screw is closed.
Wire Color
Red
Black
Green
Yellow
Table 2
Status/Description
: Enabled (default) O : Disabled
O
N FF
: Enabled (default) O : Disabled
N FF
: Enabled (default) O : Disabled
O
N FF
: High (default) O : Low
N FF
Table 3
Status/Description
: Enabled (default), : Disabled
O O
N FF
: Enabled (default), : Disabled
O O
N FF
: Enabled (default) (PET Mode)
O
N
: Disabled (SHARP Mode)
O
FF
