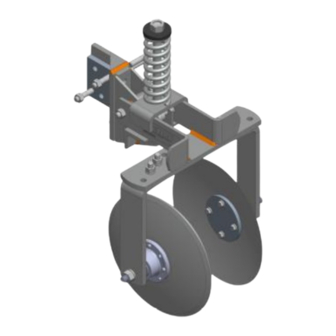

2920-012 DISC SEALER 12" SMOOTH
2920-016 DISC SEALER 16" SMOOTH
2920-016-N DISC SEALER 16" NOTCHED
YETTER MANUFACTURING CO.
FOUNDED 1930
Colchester, IL 62326-0358
Toll free: 800/447-5777
309/776-3222 (Fax)
Website:
E-mail:
info@yetterco.com
OPERATOR'S MANUAL
PARTS IDENTIFICATION
2565-412_REV_H •02/2023
www.yetterco.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Yetter 2920-012
Summary of Contents for Yetter 2920-012
- Page 1 2920-012 DISC SEALER 12” SMOOTH 2920-016 DISC SEALER 16” SMOOTH 2920-016-N DISC SEALER 16” NOTCHED OPERATOR’S MANUAL PARTS IDENTIFICATION 2565-412_REV_H •02/2023 YETTER MANUFACTURING CO. FOUNDED 1930 Colchester, IL 62326-0358 Toll free: 800/447-5777 309/776-3222 (Fax) Website: www.yetterco.com E-mail: info@yetterco.com...
-
Page 4: Mounting Bolts And Hardware
BOLT TORQUE Mounting bolts and hardware Before operating the Disc Sealer for the first time, check to be sure that all hardware is tight. Check all hardware again after approximately 50 hours of operation and at the beginning of each season. All hardware used on the Disc Sealer is Grade 5 unless otherwise noted. -
Page 5: Maintenance
ASSEMBLY “ Barn Yard Setting” – set the sealer blade to 2” closer to the bottom of the knife than the depth that the knife will be used at. Example: knife at 6” depth, set the blades to 4” above the bottom of the knife. -
Page 6: Parts Identification
2520-465 5/8-11 FLANGE NUT GRADE 8 2520-467 5/8-11 JAM LOCKNUT 2520-515 ¾-10 HEX LOCK NUT GRADE A 2525-352 ½ LOCKWASHER 2565-162 YETTER DECAL SMOOTH DISC 12” 2571-181 2920-209 PIVOT ARM 2920-210 MOUNTING BRACKET 2920-211 SHANK MOUNT BRACKET ¾” EYEBOLT WITH 5/8” EYE... - Page 7 2520-465 5/8-11 FLANGE NUT GRADE 8 2520-467 5/8-11 JAM LOCKNUT 2520-515 ¾-10 HEX LOCK NUT GRADE A 2525-352 ½ LOCKWASHER 2565-162 YETTER DECAL SMOOTH DISC 16” 2571-173 2920-209 PIVOT ARM 2920-210 MOUNTING BRACKET 2920-211 SHANK MOUNT BRACKET ¾” EYEBOLT WITH 5/8” EYE...
- Page 8 2520-465 5/8-11 FLANGE NUT GRADE 8 2520-467 5/8-11 JAM LOCKNUT 2520-515 ¾-10 HEX LOCK NUT GRADE A 2525-352 ½ LOCKWASHER 2565-162 YETTER DECAL NOTCHED DISC 16” 2571-187 2920-209 PIVOT ARM 2920-210 MOUNTING BRACKET 2920-211 SHANK MOUNT BRACKET ¾” EYEBOLT WITH 5/8” EYE...
- Page 9 PARTS IDENTIFICATION MANUFACTURED 07-01-1997 TO 06-01-2021...
- Page 10 ITEM PART NO DESCRIPTION 2502-221 5/16-18 X 1 HHFS GRADE 5 2502-222 5/16-18 X 1-1/4 HHFS GRADE 5 2502-225 5/16-18 X 1-1/2 HHFS GRADE 5 2940-560 SET SCREW 2965-500 HUB ASSEMBLY 1.406 SPINDLE 2965-501 HUB ASSEMBLY 2.406 SPINDLE 2965-502 HUB ASSEMBLY 1.157 SPINDLE ITEM PART NO DESCRIPTION...
- Page 11 PARTS IDENTIFICATION 2920-023 DIETRICH BRACKET KIT...
- Page 12 2565-412_REV_H 02/2023...
