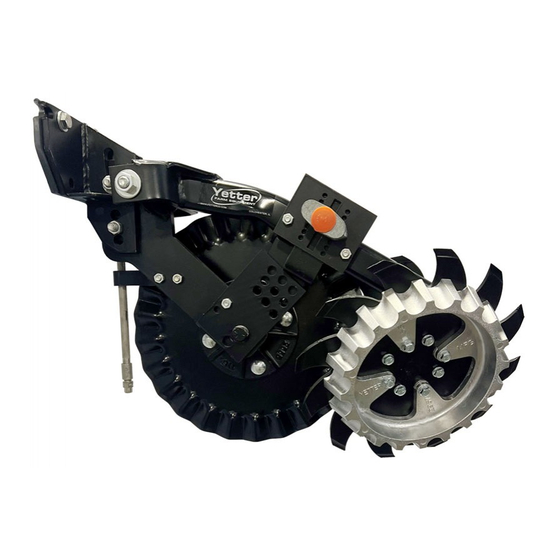

- Page 1 2959 ROW UNIT MOUNTED FERTILIZER COULTER OPERATOR’S / INSTRUCTION MANUAL W/ PARTS IDENTIFICATION MANUAL PART# 2565-482_REV_C – 08/2024 YETTER MANUFACTURING CO. FOUNDED 1930 COLCHESTER, IL 62326-0358 TOLL FREE: 800/447-5777 309/776-3222 (FAX) WEBSITE: WWW.YETTERCO.COM E-MAIL: INFO@YETTERCO.COM...
-
Page 4: General Information
GENERAL INFORMATION The 2959 Fertilizer Coulter can be used as a R.H. opener or a L.H. opener, it is recommended that half of the planter is R.H. assemblies and the other half is L.H. assemblies. NOTICE: The 2959 Fertilizer Coulter is NOT recommended for use in rocky conditions as the coulter arm and fertilizer tube are susceptible to bending. - Page 5 ASSEMBLY INSTRUCTIONS Attach the 2959-203 fert. coulter faceplate w.a. to the planter unit using 3) ½-13 x 1 ½” STEP 1. bolts, flat washers and locknuts. Use the 1 ¾” OD x ¼” thick washer on the lower large slot. On some planter units, this washer may need to be trimmed enough not to interfere with a gusset.
- Page 6 ½” below the surface of the ground. STEP 4. Attach the 2959-200 Injection tube holder to the coulter arm on the same side that the coulter hub is assembled using 2) 3/8-16 x 1 ½” bolts and lock nuts. Insert the 8” pipe nipple and coupler into the tube holder and attach a hose to the fertilizer tube and tighten hose clamps (NOT SUPPLIED).
- Page 7 ASSEMBLY INSTRUCTIONS STEP 5. At the pipe coupler install the appropriate nozzle (not supplied) according to the liquid fertilizer application rate. Nozzles can be ordered through your nearest implement dealer or fertilizer equipment dealer. See the tip application chart in this manual.
-
Page 8: Operation Precautions
NOTICE: failure to properly set the planter frame height and levelness can result in less than successful operation of the planter and the Yetter product and may result in damaged equipment. All operators should read and thoroughly understand the instructions given prior to using the Yetter product. - Page 9 PLANTER ADJUSTMENT...
-
Page 10: Parts Identification
PARTS IDENTIFICATION... -
Page 12: Troubleshooting
May have to use a tillage implement to loosen soil Soil too hard/compacted Raise the coulters. Coulters could hold planter out of 2959 fertilizer coulter blade ground if set too deep adjusted too deep Assemble equal number of RH and LH coulter assemblies... - Page 13 However, the use of the information provided is beyond the control of Yetter Mfg. Co. and in no case shall Yetter Mfg. Co. or any seller of its products be responsible for any damages that may occur from the use of this information.
