Summary of Contents for Colorful BATTLE-AX B360M-HD DELUXE V21

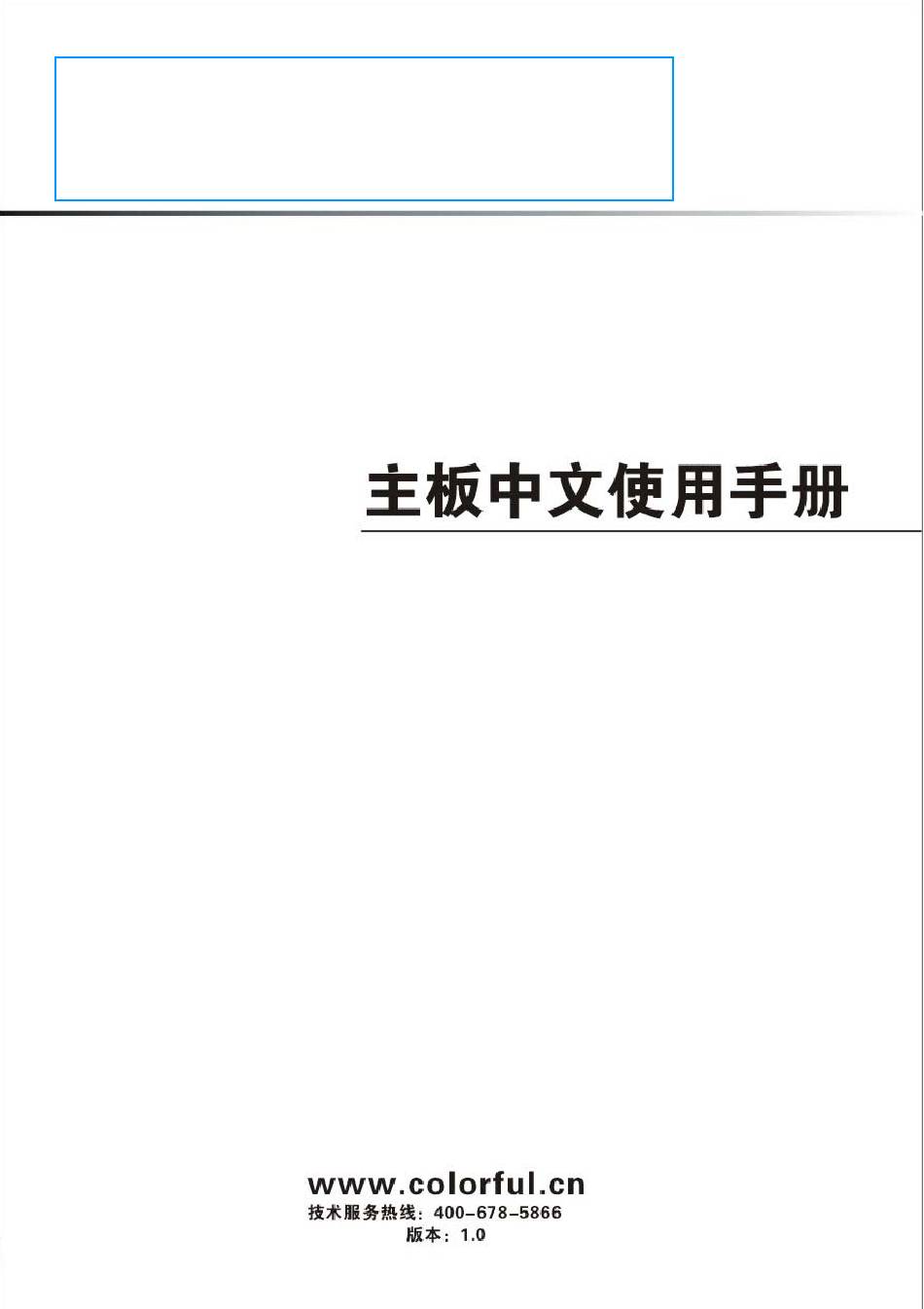

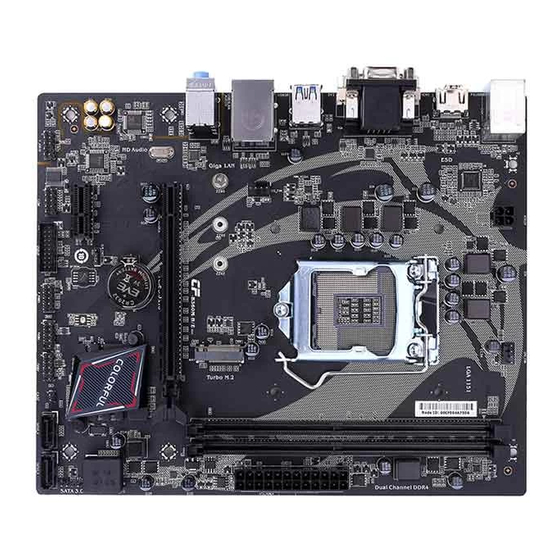

  • Page 1 BATTLE-AX B360M-HD DELUXE V21...
  • Page 2: Table Of Contents

    BATTLE-AX B360M-HD DELUXE V21 目录 第一章 简介 ......................1 1-1 主板特色 ......................1 1-2 主板规格 ....................... 1 1-3 主板布局图 ....................3 第二章 硬件安装 ....................4 2-1 基本硬件安装 ....................4 2-2 跳线设置 ...................... 7 2-3 连接器和引脚连接头 ................. 7 2-4 背板接口介绍 .................... 12 第三章...
  • Page 3 根据中华人民共和国信息产业部发布的《电子信息产品污染控 制管理办法》所展开的 SJ/T11364-2006 标准要求, 本产品污染控制标识 以及有毒有害物质或元素标识说明如下: 产品有毒有害物质或元素标识: 产品中有毒有害物质或元素的名称及含量 有毒有害物质或元素 部件名称 铅(Pb) 汞(Hg) 镉(Cd) 六价铬 多溴联苯 多溴二苯醚 (Cr(VI)) (PBB) (PBDE) PCB 板 × ○ ○ ○ ○ ○ 结构件 ○ ○ ○ ○ ○ ○ 芯片 ○ ○ ○ ○ ○ ○...
  • Page 4 版权 本手册版权属于世和资讯公司所有, 未经本公司书面许可, 任何人不得对此说 明书和其中所包含的任何资料进行复制、拷贝或翻译成其它语言。 声明 本用户手册没有任何形式的担保、立场表达或其它暗示。若有任何因本用户手 册或其所提到之产品的所有信息, 所引起直接或间接的数据流失、利益损失或 事业终止, 七彩虹及其所属员工恕不为其担负任何责任。除此之外, 本用户手 册所提到的产品规格及信息仅供参考, 内容亦会随时升级, 恕不另行通知。本 用户手册的所有部分, 包括硬体及软体, 若有任何错误, 七彩虹没有义务为其 担负任何责任。 商标版权 本手册使用的所有商标均属于该商标的持有者所有。 AMD, Athlon™, Athlon™ XP, Thoroughbred™ 和 Duron™是 Advanced Micro Devices 的注册商标。 Intel® 和 Pentium® 是 Intel Corporation 的注册商标。 PS/2 和...
  • Page 5 访问七彩虹的官方网站 (http://www.colorful.cn/) 获取产品和驱动程序等信息支持, 还可以登录七彩虹官方论坛(http://bbs.colorful.cn), 获取技术指导。 通过拨打 400-678-5866 客户服务热线进行咨询, 此外还可以直接与七彩虹各属 地平台服务中心联系, 具体联系方法如下: 七彩虹科技全国区域售后服务平台业务范围及联系方式 平台名称 服务范围 联系方法 北京、天津、河北、河南、 北京服务平台 010—51261907 山东、山西、内蒙古 沈阳服务平台 辽宁、吉林、黑龙江 024—31321755 武汉服务平台 湖北、湖南、江西 027—87865811 南京服务平台 江苏、安徽、浙江 025—83611912 上海服务平台 上海 021—64681880 广州服务平台 广东、广西、福建、海南 020—85276624 成都服务平台 四川、重庆、云南、贵州、西藏 028—85240735 西安服务平台 陕西、甘肃、宁夏、青海、新疆 029—87895086 深圳服务平台...
  • Page 6 在您开始之前 主板包装盒内附标准组件 在您打开本主板包装盒之后, 请马上检查下面所列出的各项标准配件是否 齐全。 1 块 BATTLE-AX B360M-HD DELUXE V21 主板 2 条 SATA 数据线 1 张驱动光盘 1 片后置面板 IO 档板 1 本主板中英文使用手册 注意:以上配件仅供参考, 请以实物为准, 七彩虹科技保留修改的权利。 Note: 若以上列出的任何一项配件有损坏的情形, 请尽快与您的经 销商联络或致电七彩虹客服。 注意: 产品规格/CPU 支持/产品附件以产品发布之时为准。...
  • Page 7: 第一章 简介

    感谢您购买七彩虹主板, 该主板提供了非常优越的性能和品质保证。 1-1 主板特色 BATTLE-AX B360M-HD DELUXE V21 主 板采 用 Intel B360 芯 片 组 , 支 持 Intel LGA1151 接 口 Coffee Lake-S 系 列 处 理 器 , 支 持 双 通 道 DDR4 2133/2400/2666MHz 规格内存, 支持 PCI-E3.0 规范。...
  • Page 8 BATTLE-AX B360M-HD DELUXE V21 存储设备 主板提供 4 个 SATA3.0 6Gb/s 硬盘接口 6 声道音频设备 整合 6 声道高清晰数字音频控制器 支持 6 声道 3D 环绕声效 网络功能 主板采用千兆网卡 支持 10/100/1000Mbps 数据传输率 USB 接口 主板提供 6 个 USB2.0 和 6 个 USB3.0 接口(含扩展) 板载连接头/跳线/按钮 1 个前置音频接口连接头(F_AUDIO)...
  • Page 9: 主板布局图

    简介 1-3 主板布局图 (仅供参考)...
  • Page 10: 第二章 硬件安装

    第二章 硬件安装 请参照以下步骤, 完成电脑的安装: 安装中央处理器(CPU) 安装内存 装入机箱 安装所有扩展卡 连接所有讯号线、排线、电源线及面板控制线 2-1 基本硬件安装 安装中央处理器和风扇 本主板具备一个 Socket 1151 处理器插槽, 本插槽是专为 Intel LGA1151 接口 Coffee Lake-S 系列处理器所设计。请依照以下步骤安装处理器和风扇: 1. 找到位于主板上的处理器插槽, 将 CPU 插座旁的锁定杆从锁定状态 拔到未锁定状态。 2. 安装 CPU, 将 CPU 的金色三角形标示对准主板 CPU 插槽上的三角形 标示, 确定针角 1 的方向正确, 不要用力插 CPU, 确信 CPU 完全插入插 槽中, 将锁定杆从未锁定状态拔到锁定状态。(这一过程非常重要, 如...
  • Page 11 硬件安装...
  • Page 12 BATTLE-AX B360M-HD DELUXE V21 安装内存 主板提供 2 个 DDR4 内存条插槽。下图所示为 DDR4 内存条插槽在主板上 的位置。 一条内存: 插入到 DIMM1 或 DIMM2 插槽。 两条内存: 插入到 DIMM1 和 DIMM2 插槽,以组建双通道。 CAUTION: 1.请选择使用相同的内存模组安装到双通道。2. 如果您正确 插入了内存模组, 您将不会看到金手指部分。 安装显卡 主板提供 1 个 PCI Express 3.0x16 插槽, 用于安装显卡。安装时, 将显卡垂...
  • Page 13: 跳线设置

    硬件安装 2-2 跳线设置 CMOS 清除插针:CLR_CMOS 此跳线可以清除主板的 CMOS 资料(例如:日期及 BIOS 设定),回到出厂 设定值。如果您要清除 CMOS 资料,请使用跳线帽短接该跳线的 Pin2-3 针 脚数秒钟。(PCB 板上白色丝印为“1”的针脚, 为跳线的第 1 针脚) CLR_CMOS CLR_CMOS 1-2 闭合正常 2-3 闭合清除 CMOS CMOS 清除设置 注意: 1.清除 CMOS 资料前 请先关闭计算机并拔除电源线。 2.清除 CMOS 资料后在启动计算机前 请记得移除 Pin2-3 两针脚间的跳线帽 否...
  • Page 14 BATTLE-AX B360M-HD DELUXE V21 前面板开关和指示灯连接:F_PANEL PWR_ON:ATX 电源开关。短接此引脚可以开机。 RST:重启开关。短接此引脚,不需要关闭系统电源即可重新启动计算机。 PWR_LED:电源指示灯。当系统电源开启时,此灯会亮起。 HD_LED: 硬盘指示灯。对硬盘进行数据存取时,此灯会亮起。 SATA 端口连接器:SATA1-4 主板提供 4 个 SATA3.0 6Gb/s 硬盘接口。...
  • Page 15 硬件安装 M.2 插槽 主板提供 1 个 M.2 插槽,支持 2242/2260/2280 尺寸规格的 SSD,数据传 输率最高可达 32Gb/s。支持 PCI-e x4 SSD,支持 Intel OPTANE。 请依下列步骤将 M.2 SSD 正确安装于插槽: 1.请用螺丝起子依序将螺丝和螺柱拆下,依实际要安装的 M.2SSD 规格 找到适合螺丝孔位之后,先锁上螺柱。 2.将 M.2 SSD 以斜角方式放入插槽。 3.压住 M.2 SSD 之后,再将螺丝锁上。 前置音频接口连接:F_AUDIO 您可以在前置面板接口上连接一个音频接口,它是和 I/O 前置面板连接规格 兼容的。...
  • Page 16 BATTLE-AX B360M-HD DELUXE V21 USB2.0 接口扩展连接头:FUSB1, FUSB2 主板提供 2 个 USB2.0 连接头,可扩展至 4 个 USB2.0 接口。USB2.0 接口传 输速率最高可达到 480Mbps, 可以提供高速的互联网连接、互动式电脑游 戏,还可以同时运行高速的外围设备。 USB3.0 接口扩展连接头:F_USB3.0 主板提供 1 个 USB3.0 连接头,可扩展至 2 个 USB3.0 接口。USB3.0 传输速 率最高可达到 5Gbps,比 USB2.0 快 10 倍。 外形和普通的 USB 接口基本一致,...
  • Page 17 硬件安装 风扇插座:CPU_FAN, PCHFAN1 主板提供 2 个风扇插座,其中 CPU_FAN 是 CPU 风扇插座,连接 CPU 风扇,用 来降低 CPU 温度。 SYS_FAN 是系统风扇插座, 连接风扇用来降低系统温度。 串行设备连接头:JCOM 主板提供 1 个 COM 连接头,用来连接串口(COM)。将串口模组的排线连 接至这个插座,接着将该模组安装至机箱后侧面板空的插槽中。...
  • Page 18: 背板接口介绍

    BATTLE-AX B360M-HD DELUXE V21 LPC 连接头:JLPC 这个是调试主板的接口,可以转接一个数码卡来分析主板问题故障。 2-4 背板接口介绍 后置面板提供丰富的输入和输出接口。 主板背板接口包括:PS2 鼠标和键盘通用端口、USB2.0 接口、HDMI 接口、 DVI 接口、VGA 接口、USB3.0 接口、千兆网络接口、1 组 3 孔 6 声道音频 接口(音频输入/音频输出/麦克风)。...
  • Page 19: 第三章 驱动程序安装说明

    第三章 驱动程序安装说明 插入七彩虹主板驱动程序安装光盘 安装程序会自动运行 弹出下面窗口。 CAUTION: 安装完成硬件后, 必须安装对应的驱动程序, 才能发挥主板 的强劲性能。 (请以实物为准) 驱动光盘能自动检测主板所使用的芯片组型号、声卡型号、板载显卡型号 或者板载网卡型号,点击相应的按钮安装相应的驱动。...
  • Page 20: 第四章 Bios 设置

    第四章 BIOS 设置 该章介绍如何通过 BIOS 设置来更改系统设置,详细内容请参考此章。 该章包含下列内容: Main(系统信息) Advanced(高级 BIOS 设置) Chipset(高级芯片组特征) Security(安全设置) Boot(启动设置) Save & Exit(退出设置) CAUTION: 由于主板的 BIOS 版本在不断的升级, 所以, 本手册中有关 BIOS 的描述仅供参考。 4-1 进入 BIOS 主界面 本章提供了 BIOS Setup 程序的信息,让用户可以自己配置优化系统设置。 如下情形您需要运行 SETUP 程序: Note: 1. 系统自检时屏幕上出现错误信息,并要求进入 SETUP 程序。 2.
  • Page 21 BIOS 设置 控制键位 < ↑↓←→ > 向上、向下、向左或向右移动光标以选择项目 < Enter > 选定此选项 < +/PU > 增加数值或改变选择项 < -/PD > 减少数值或改变选择项 < F1 > 主题帮助,仅在状态显示菜单和选择设定菜单有效 < F7> 恢复前次的 BIOS 设定值,仅在选择设定菜单时有效 < F9> 载入优化缺省值 < F10> 保存改变后的 BIOS 设定值并退出 < Esc > 退出菜单或者从子菜单回到主菜单 Setup BIOS Information American Megatrends...
  • Page 22: Bios 主界面

    BATTLE-AX B360M-HD DELUXE V21 子菜单 如果你发现在左边某一区域有向右的指针符号(如上图所示),这就意味 此项附加了子菜单。选中此项,按下回车即可进入此选项子菜单。然后您 可以使用控制键在子菜单直接移动并改变设定值。回到主菜单,按下 <Esc>。 主题帮助 BIOS 设定程序提供了帮助屏幕。 你可以通过简单地按下<F1>键从任何菜单 中调出此帮助屏幕。此帮助屏幕列出了相应的键和可能的选择项目。按下 <Esc>退出帮助屏。 4-2 BIOS 主界面 Main(系统信息) 使用此菜单可查看 BIOS 信息, 并设置 BIOS 语言、时间和日期。 Advanced(高级 BIOS 设置) 使用此菜单可对系统的高级特征进行设定。 Chipset(芯片组设置) 使用此菜单可以对芯片组性能进行相应的设定。 Security(安全设定) 使用此菜单可以对 BIOS 密码进行相应的设定。 Boot(启动设置) 使用此菜单可以对计算机启动设备进行相应的设定。 Save & Exit(退出设置)...
  • Page 23: 系统信息(Main

    BIOS 设置 4-3 系统信息 (Main) Setup BIOS Information American Megatrends BIOS Vendor Main 5.13 Core Version Advanced UEFI 2.7; PI 1.6 Compliancy Chipset 1COFF 0.59 X64 Project Version Security Build Date and Time 12/20/2018 16:41:59 Boot Access Level Administrator Save & Exit Total Memory 8192MB 2400 MHZ...
  • Page 24: 高级 Bios 设置(Advanced

    BATTLE-AX B360M-HD DELUXE V21 4-4 高级 BIOS 设置 (Advanced) Setup CPU Configuration OverClocking Performance Menu Main Advanced ACPI Settings Chipset Super IO Configuration Security Boot Hardware Monitor Save & Exit USB Configuration CSM Configuration NVMe Configuration CPU Configuration(CPU 设置) Intel(R)SpeedStep(tm)...
  • Page 25 BIOS 设置 OverClocking Performance Menu(超频选项菜单) OverClocking Feature 开启或关闭内存超频。设定值有:Enabled、Disabled。选择“Enabled” 时,将会出现下面选项: Memory Configuration(内存设置) Memory Profile(内存参数设置) 设置内存时序。设定值有:Default Profile(默认配置)、Custom Profile(自 定义设置,选择此选项,可以对内存进行超频设置)、XMP Profile1。XMP 全名为“Extreme Memory Profile”,它是英特尔提出的一种内存超频模式, 就是把内存的超频频率和参数设置以文件的方式存在内存条的 SPD 模块 中。BIOS 启动 XMP 就是直接从 SPD 中读取超频设置参数设置内存频率。 以下内容可作为超内存频率时参考使用: Memory Frequency 设置内存频率。 此项控制了 C A S 延迟,它决定了在 SDRAM 在接收指令后开始读取的延 迟时间(在时间周期中)。...
  • Page 26 BATTLE-AX B360M-HD DELUXE V21 ACPI Settings(ACPI 高级配置) Enable ACPI Auto Configuration 设置 ACPI 自动配置。开启此选项, 则 ACPI 会打开所有支持的睡眠模式; 关闭此选项,则会弹出以下选项: Enable Hibernation 开启或关闭操作系统睡眠功能。此选项仅对部分操作系统有效。 ACPI Sleep State 选择 OS 下待机模式。 设定值有: Suspend Disabled、 S3 (Suspend to RAM) 。 Wake on LAN Enable 设置网络唤醒。设定值有:Disabled、Enabled。...
  • Page 27 BIOS 设置 CPU Temperature 显示当前 CPU 运行的温度。 SYS Temperature 显示当前系统运行的温度。 CFAN1 Speed 显示当前 CPU 风扇运行的速度。 SFAN1 Speed 显示当前系统风扇运行的速度。 CPU/ DIMM /VIN2/VIN4 Voltage 显示当前“CPU 电压/内存电压 /VIN2/VIN4”的电压值。 USB Configuration(USB 设置) Legacy USB Support 开启或关闭传统 USB 设备功能。传统 USB 就是老的 1.1USB 设备,USB 键 盘和鼠标都属于传统 USB。使用 USB 键盘和鼠标时,此选项需设置为 “Enabled”。设定值有:Enabled、Disabled、Auto。...
  • Page 28: 芯片组设置(Chipset

    BATTLE-AX B360M-HD DELUXE V21 Storage Rom 在 CSM Support 选项设置为“Enabled”的前提下,用于设置存储设备的 Option ROM 的格式为 UEFI 或 Legacy 模式,比如 RAID 的 Option ROM。设 定值有:Disabled、UEFI、Legacy。 Video Rom 在 CSM Support 选项设置为“Enabled”的前提下,用于设置显示设备的 Option ROM 的格式为 UEFI 或 Legacy 模式,比如显卡的 VBIOS。设定值有: Disabled、UEFI、Legacy。 Other PCI devices 在...
  • Page 29: 安全设置(Security

    BIOS 设置 PCH Device Configuration(南桥设备配置) Configuration SATA And RST SATA 设备选项设定。选择此选项,将会出现下面选项: SATA Controller(S) 开启或关闭 SATA 控制器。设定值有:Enabled、Disabled。 SATA Mode Selection 设置 SATA 控制器工作模式。设定值有:AHCI、RAID/Intel RST With Intel Optane System Acceleration。 Serial ATA Port1-4 此选项显示 SATA1-4 接口的连接状况。 Onboard Lan Controller 开启或关闭板载网卡控制器。设定值有:Disabled、Enabled。 HD Audio Controller 开启或关闭板载高保真音频控制器。设定值有:Disabled、Enabled。...
  • Page 30 BATTLE-AX B360M-HD DELUXE V21 Administrator Password 本项目用于设置系统管理员密码。请按照下列步骤操作: Password” 1. 选择“ 项目并按下“Enter”键。 Administrator 2. 当“Greate New Password”窗口出现时, 输入欲设置的密码, 可以 是六个字节内的英文、数字与符号, 输入完成按下“Enter”键。 3. 按下“Enter”键后会出现“Confirm New Password”窗口, 再一次输 入密码以确认密码正确。若出现“Invalid Password”提示信息, 代表于 密码确认时输入错误, 需重新操作。 若要更改系统管理员的密码, 请依照上述程序再运行一次密码设置。 按“F10”键保存后退出, 密码设置即可生效。 User Password 在管理员密码设置成功后, 会出现此选项, 用于设置普通用户密码。选择 “User Password “项目并按下“Enter”键。其余步骤,同管理员密码设...
  • Page 31: 启动设置(Boot

    BIOS 设置 4-7 启动设置(Boot) BIOS Configuration Setup Main Setup Prompt Timeout Advanced Chipset Bootup Numlock State Security Boot Boot Menu Save & Exit Full LOGO Display Boot Option Priorities Boot Option#1 Fast Boot Setup Prompt Timeout 设置启动时屏幕提示等待时间(秒), 需要键入秒数, “65535”表示无限 期的等待。 Bootup Numlock State 设置启动时小数字键盘状态, 设定值有:On(开)、Off(关)。...
  • Page 32: 退出设置(Save & Exit

    BATTLE-AX B360M-HD DELUXE V21 Boot Option Priorities(安装操作系统时的设置) 启动设备优先权设置。如果用户要安装操作系统, 请把“Boot Option#1” 设为你的光驱设备(CD-ROM)或你的 U 盘设备(前提是你的光驱里面的光 盘有操作系统或者是你的 U 盘里有 PE 系统), 设置完成后按“F10”键保 存退出, 系统将从光驱或 U 盘启动。 4-8 退出设置 (Save & Exit) 退出选项包括:保存设置并重启/不保存并重启/保存/不保存/载入优化缺 省值。 Save Changes and Reset(储存设置并重启) 若当你选择“Save Changes and Reset”,就会出现如下的信息: Save configuration and Reset ?...
  • Page 33: Chapter 5 English Introduction

    Thanks for purchasing Colorful motherboard which provides excellent performance and quality assurance. 5-1-1 Motherboard features BATTLE-AX B360M-HD DELUXE V21 motherboard based on Intel B360 chipset, support Intel LGA1151 Coffee Lake-S processors, support dual channel DDR4 2133/2400/2666MHz memory, support PCI-E3.0 standard.
  • Page 34 BATTLE-AX B360M-HD DELUXE V21 Slots 1*PCI Express 3.0x16 slot 1*PCI Express 3.0x1 slot 1*M.2 slot(Support PCI-e x4 and Intel OPTANE) Storage 4*SATA3.0 6Gb/s ports 6-CH audio devices Onboard 6-channel audio chipset Support 3D surround sound effect integrated 1000M LAN chipset...
  • Page 35: Hardware Installation

    Introduction 5-1-3 motherboard Layout 5-2 Hardware Installation This section will guide you through the installation of the motherboard. The topics covered in this section are: Preparing the motherboard Installing the CPU Installing the CPU fan Installing the memory Installing the motherboard Connecting cables and setting switches...
  • Page 36 BATTLE-AX B360M-HD DELUXE V21 5-2-1 Safety Instructions To reduce the risk of fire, electric shock, and injury, always follow basic safety precautions. Remember to remove power from your computer by disconnecting the AC main source before removing or installing any equipment from/to the computer chassis.
  • Page 37 Hardware Installation The CPU fits in only one correct orientation. DO NOT force the CPU into the socket to prevent bending the connectors on the socket and damaging the CPU! Installing Memory DIMMs Your new motherboard has 2 slots for DDR4 memory. They support dual channel DDR4 memory technology.
  • Page 38 BATTLE-AX B360M-HD DELUXE V21 Use the following procedure to install memory DIMMs into the slots on the motherboard. Note that there is only one gap near the center of the DIMM slot. This slot matches the slot on the memory DIMM to ensure the component is installed properly.
  • Page 39 Hardware Installation I/O shield does not fit into the chassis, you would need to obtain the proper size from the chassis supplier. Securing the Motherboard into the Chassis Most computer chassis have a base with mounting studs or spacers to allow the mother board to be secured to the chassis and help to prevent short circuits.
  • Page 40 BATTLE-AX B360M-HD DELUXE V21 Serial ATA 3.0 6Gb/s connectors (7-pin) These connectors connect to Serial ATA 3.0 6Gb/s hard disk drives and optical drives via Serial ATA 3.0 6Gb/s signal cables. USB 3.0 connectors This connector is for USB 3.0 devices.
  • Page 41 Hardware Installation USB 2.0 connectors These connectors are for USB 2.0 ports. Connect the USB module cable to any of these connectors, then install the module to a slot opening at the back of the system chassis. These USB connectors comply with the USB 2.0 specification that supports up to 480Mbps connection speed.
  • Page 42 BATTLE-AX B360M-HD DELUXE V21 System panel connector This connector supports several chassis-mounted functions. System power LED (2-pin PLED) This 2-pin connector is for the system power LED. Connect the chassis power LED cable to this connector. The system power LED lights up when you turn on the system power, and blinks when the system is in sleep mode.
  • Page 43 Hardware Installation CPU、Chassis and Power fan connectors (CPU_FAN,SYS_FAN) Connect the fan cables to the fan connectors on the motherboard, making sure that the black wire of each cable matches the ground pin of the connector. PCI Express 3.0 x1 Slot The PCI Express3.0 x1 slots that are designed to accommodate less bandwidth-intensive cards, such as a modem or LAN card.
  • Page 44 BATTLE-AX B360M-HD DELUXE V21 M.2 Slot The motherboard has one M.2 slot, supports PCI-e X4 and Intel OPTANE, and supports the 2242/2260/2280specification,the data transfer rate can be as high as 32Gb/s. Please install M.2 SSD correctly in the slot following the following steps: 1.
  • Page 45 Hardware Installation COM header:JCOM This COM header is for COM serial devices SPEAK header:SPEAK This SPEAK header is for Speaker serial devices...
  • Page 46 BATTLE-AX B360M-HD DELUXE V21 ME header:JME Intel Management Engine Interface,it is Intel management engine driven, is a heat management driver launched by Intel for its desktop series chipset.When you start the machine, Using a jumper cap or a metal short JME header in seconds, the ME program will be brushed and written.
  • Page 47 CLR_CMOS CLR_CMOS 1-2 Normal 2-3 clear CMOS Clear CMOS 5-2-3 Back Panel IO Connector <The back panel IO connector of BATTLE-AX B360M-HD DELUXE V21> Parts PS/2 Mouse/ This connector is for a PS/2 mouse/Keyboard. Keyboard Connector The standard RJ-45 jack is for connection to LAN Jack single Local Area Network (LAN).
  • Page 48 BATTLE-AX B360M-HD DELUXE V21 Onboard VGA port, connect to VGA Monitor Onboard DVI port, connect to DVI Monitor HDMI Onboard HDMI port, connect to HDMI Monitor These connectors are for attaching USB devices USB Ports such as keyboard, mouse, or other USB-compatible devices.
  • Page 49 BIOS Setting  (Press the <DEL> key to enter BIOS Setup) If the boot self test (POST) program information is disappeared before you respond,you can turn it off and then turn on,or press the Reset button on the chassis to restart your computer, can also press <...
  • Page 50 BATTLE-AX B360M-HD DELUXE V21 Setup BIOS Information American Megatrends BIOS Vendor Main Core Version 5.13 Advanced Compliancy UEFI 2.7; PI 1.6 Chipset Project Version 1COFF 0.59 X64 12/20/2018 16:41:59 Security Build Date and Time Administrator Boot Access Level Save & Exit...
  • Page 51 BIOS Setting  5-3-2 BIOS Setup Menus Main(System Information) Use this menu to view BIOS and memory basic information, and set the BIOS time and date。 Advanced(Advanced BIOS Features) Use this menu to set the advanced features of the system. Chipset(Chipset settings) Using this menu, the chip group can be set to optimize the performance of the system Security(security settings)...
  • Page 52 BATTLE-AX B360M-HD DELUXE V21 System Language Selects the default language used by the BIOS. Options: English, Chinese, etc. System Date Set the date, the date format is <week><month><date><year> Week:from Sun.to Sat.,defined by the BIOS, read-only Month:from Jan.to Dec. Date:from 1 to 31,can be modified with numeric keys...
  • Page 53 BIOS Setting  CPU Configuration Intel(R)SpeedStep(tm) Set up Intel Enhanced Energy Saving Technology to turn on or off. It is an intelligent frequency reduction technology developed by Intel. It can automatically adjust the voltage and frequency of the processor according to the workload of different systems to reduce power consumption and calorific value.
  • Page 54 BATTLE-AX B360M-HD DELUXE V21 This item controls the C A S delay, which determines the delay time (in the time period) that the SDRAM starts reading after the receiving instruction. tRCD/ tRP Set the number of memory clocks to control the S D R A M.
  • Page 55 BIOS Setting  State After G3 Set up power-on automatic boot-up.Options: S0 State(Automatic boot-up state),S5 State(Shutdown state) RTC Wake Set up the system wake-up. Options: Disabled, Fixed Time (timing), Dynamic Time (dynamic time). When the "Fixed Time" is selected, the setting of the specific wake-up time will be popped.
  • Page 56 BATTLE-AX B360M-HD DELUXE V21 CPU VOL/DIMM VOL/VIN2/VIN4 Voltage The current CPU voltage / memory voltage / VIN2/VIN4 voltage is displayed. USB Configuration (USB settings) Legacy USB Support Open or close the traditional USB device function. The traditional USB is an old 1.1USB device, and both the USB keyboard and the mouse belong to the...
  • Page 57 BIOS Setting  Other PCI devices On the premise that the CSM Support option is set to "Enabled", the format of Option ROM for other PCI devices with Option ROM is UEFI or Legacy mode. 5-3-5 Chipset(chipset settings) System Agent (SA)Configuration (North Bridge configuration) Stop Grant Configuration Set automatic/manual stop Grant configuration.
  • Page 58 BATTLE-AX B360M-HD DELUXE V21 SATA Mode Selection Setting up SATA Controller Working Mode.Options:AHCI、RAID/Intel RST With Intel Optane System Acceleration. Serial ATA Port1-4 This option displays the connection status of SATA1-4 ports. Onboard LAN Controller Open or close the board controller. Options: Disabled, Enabled.
  • Page 59 BIOS Setting  3. when the "Enter" key is pressed, the "Confirm New Password" window will appear, and again the password is entered to confirm the correct password. If the "Invalid Password" prompt information is presented, a mistake is entered when the password is confirmed, and reoperation is required.
  • Page 60 BATTLE-AX B360M-HD DELUXE V21 Fast Boot Set the quick start function to turn on or off. When set to Enabled, the system skips some detection items and reduces startup time.Options:Disabled,Enabled. Set Boot Priority(Settings for Installing Operating System) Boot device priority settings.If the user wants to install the operating system, please set "Boot Option #1"...
  • Page 61 Copyright Notice The material in this document is the intellectual property of Colorful Technology and Development CO, LTD. We take every care in the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are under continual improvement and we reserve the right to make changes without notice.
  • Page 62 Or our engineer, send the follow information to us! Customer name______________ Purchase date_______________ Contacts____________________ Contact phone_______________ Contact address______________ Product model_______________ Product SN __________________ Dealer name________________ Dealer address _____________ _ Dealer phone ________________ Website: www.colorful.cn Service hotline: +86400-678-5866...
