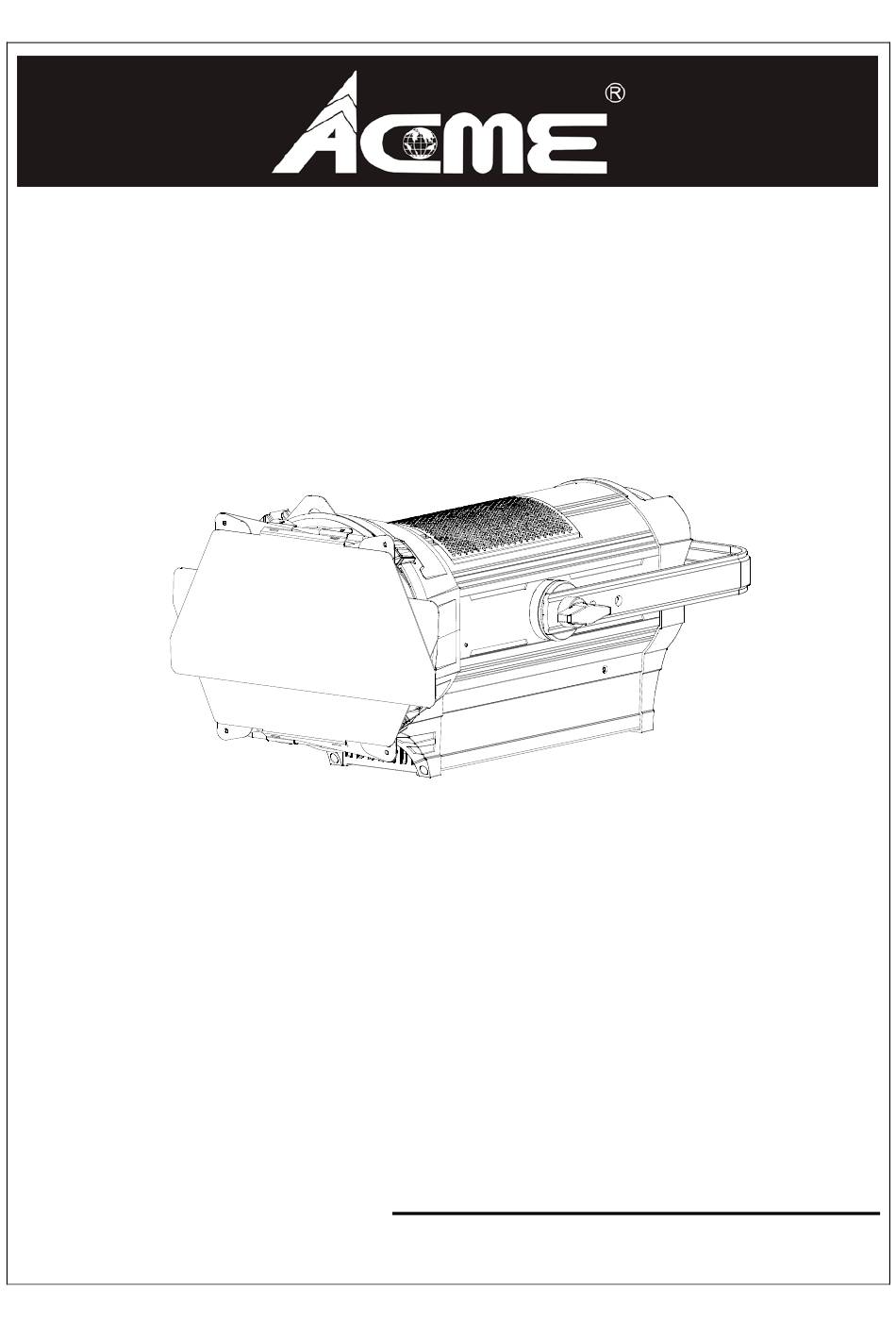

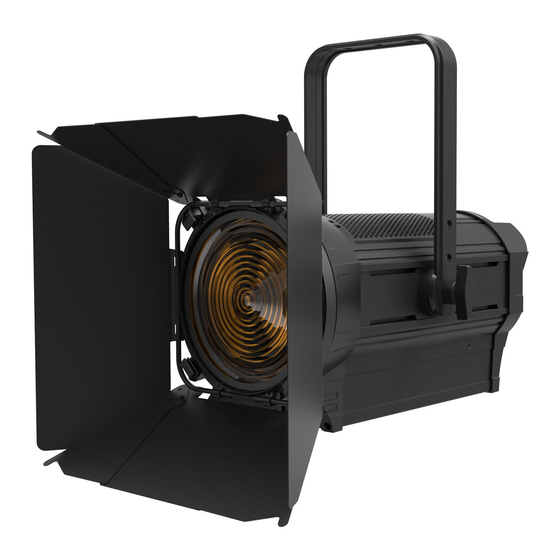

- Page 1 TS-300M CW TS-300M WW User Manual Please read the instruction carefully before use...
-
Page 2: Table Of Contents
CONTENTS 1. Safety Instructions ................. 2 2. Technical Specifications ................. 3 3. The Plate for Color Filter & Barn Door Installation ......... 4 4. How To Set The Unit................5 4.1 Control panel ................... 5 4.2 Main Functions ................6 5. -
Page 3: Safety Instructions
1. Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. ... -
Page 4: Technical Specifications
moisture. DO NOT open the unit within five minutes after switching off. The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged. Caution There are no user serviceable parts inside the unit. DO NOT open the housing or attempt any repairs yourself. -
Page 5: The Plate For Color Filter & Barn Door Installation
3200+200K (TS-300 WW) Light Source: 1 × 300W white LED CRI: WW ≥ 95 CW ≥95 ≥ 95 ≥ 95 Weight: 10 Kgs Dimension: 340×583×284mm 3. The Plate for Color Filter & Barn Door Installation Fig. 1 ○... -
Page 6: How To Set The Unit
Fig. 2 ○ Secondly, please insert the Barn Door into the outside slot from topside as arrow , and fasten the lock (Note: the Barn Door must be fastened into the inside of the lock’s hook ); then flip down ○... -
Page 7: Main Functions
3. Button: MENU To select the programming functions DOWN To go backward in the selected functions To go forward in the selected functions ENTER To confirm the selected functions 4. Dimmer: Manual adjust the dimmer value. 5 Zoom: Manual adjust the zoom value. 6. - Page 9 DMX Address Select DMX Address, press the ENTER button to confirm, the present address will blink on the display. Use the UP and DOWN button to adjust the DMX address from 1 to 512. Once the address has been selected, press the ENTER button to save. Hold and press the MENU button about one second or wait for one minute to exit the menu mode.
- Page 10 minute to exit menu mode. Square Law: Light intensity control is finer at low levels and coarser at high levels. Inverse Square Law: Light intensity control is coarser at low levels and finger at high levels. Linear: The increase in light intensity appears to be linear as DMX value is increased. S-cure: Light intensity control is finger at low levels and high levels and coarser at medium levels.
- Page 11 Select Contrast Ratio, press the ENTER button to confirm, present mode will blink on the display, use the UP/DOWN button to adjust value from 1 to 30, press the ENTER button to save. Press the MENU button back to the last menu or let the unit idle one minute to exit menu mode.
-
Page 12: How To Control The Unit
Firmware Version Select Firmware Version, press the ENTER button to confirm, the software version will show on the display. Press the MENU button back to exit. Factory Setting Select Factory Setting, press the ENTER button to confirm, present mode will blink on the display. Use the DOWN and UP button to select the No or Yes (Switch back to default settings). -
Page 13: Dmx 512 Configurations
functions without any change press the MENU button again. If you use please refer to the following diagram to address your DMX512 channel for the first 4 units. Unit 1 Unit 2 Unit 3 Unit 4 Channel mode Address Address Address Address 1 channels... -
Page 14: Troubleshooting
DMX CONTROLLER DMX OUT 1. Connect the fixture together in a “daisy chain” by XLR plug cable from the output of the fixture to the input of the next fixture. The cable cannot be branched or split to a “Y” cable. Inadequate or damaged cables, soldered joints or corroded connectors can easily distort the signal and shut down the system 2. -
Page 15: Fixture Cleaning
A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2. Measure the mains voltage on the main connector. 3. Check the power on Lamp. B. Not responding to DMX controller 1. - Page 16 D eclaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55103-1: 2009 ; EN55103-2: 2009; EN62471: 2008; EN61000-3-2: 2006 + A1:2009 + A2:2009; EN61000-3-3: 2008. &...
