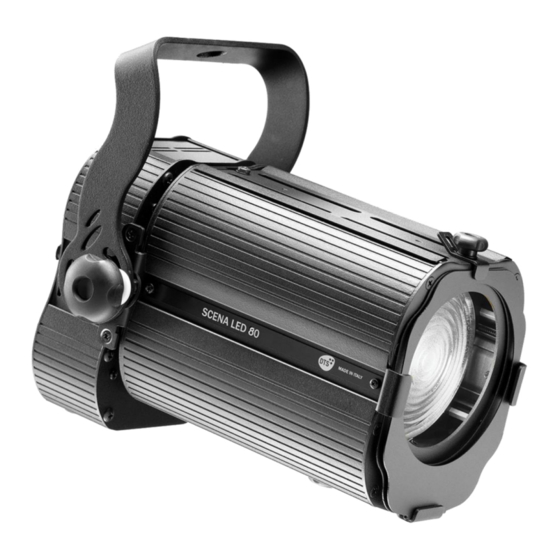

Summary of Contents for DTS SCENA LED 80 CT

  • Page 2 Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso scritto della D.T.S . D.T.S.
  • Page 3: Table Of Contents

    INDEX: 1- SYMBOLS ......................... 4 2- GENERAL WARNING ....................4 3- GENERAL WARRANTY CONDITIONS ..............4 4- TECHNICAL FEATURES ..................5 5- ACCESSORIES ......................6 6- IMPORTANT SAFETY INFORMATION ..............7 6.1 Fire prevention...................... 7 6.2 Prevention of electric shock .................. 7 6.3 Safety ........................
  • Page 4: 1- Symbols

    1- SYMBOLS Graphic symbols used on this manual: THIS SYMBOL INDICATES A HOT SURFACE THIS SYMBOL INDICATES ELECTRIC SHOCK RISK THIS SYMBOL INDICATES GENERAL RISK THIS SYMBOL INDICATES THE MAXIMUM OPERATING AMBIENT TEMPERATURE THIS SYMBOL MEANS “DO NOT STARE AT THE OPERATING LIGHT SOURCE” THIS SYMBOL INDICATES PHOTOBIOLOGICAL SAFETY THIS SYMBOL INDICATES THE EUROPEAN...
  • Page 5: 4- Technical Features

    14° - 77° linear zoom Control DMX 512 / RDM or Manual control Multi-function 4-digit 7-segment LED display + 4 soft keys Internal operating system updatable via DTS Dongle firmware uploader 7 DMX channels (default) 2 DMX channels “CTC” mode...
  • Page 6: 5- Accessories

    - Safety cable 3 x 600 mm - max load 30 Kg (code 0521A010) - Outdoor DMX cable 2 x 0,25 mm² - flame retardant (code 0509C158) - DTS Dongle Firmware Uploader (code 03.LA.206) - Track adapter for electrified rail mounting - black finishing (code 03.LA.235)
  • Page 7: 6- Important Safety Information

    The use of a thermal magnetic circuit breaker is recommended for each SCENA LED 80 CT unit. Use only AC supplies 100-240V 50-60 Hz. SCENA LED 80 CT should never be located in position exposed to rain or in areas of extreme humidity. A good air ventilation is essential for proper equipment work.
  • Page 8: 7- Installation

    7- INSTALLATION The unit is suitable for dry locations only. SCENA LED 80 CT can be installed on a truss or on the ceiling. It is recommend the use of appropriate clamps to fix the unit to the mounting surface.
  • Page 9: 8- Input / Output Connections

    8- INPUT / OUTPUT CONNECTIONS...
  • Page 10: 9- Dmx Signal Connection

    9- DMX SIGNAL CONNECTION: The unit operates using a digital DMX 512 signal. Connection between the controller and the unit or between units must be carried out using a two pair screened ø 0.5 mm. Ensure that the conductors do not touch each other. Do not connect the cable ground to the DMX connector chassis.
  • Page 11: Dmx Addresses

    9.1 DMX addresses SCENA LED 80 CT can be controlled with 7 DMX channels (Default), 2 DMX channels or in “CTC” mode. In order to use the unit in 7 DMX channels mode (Default), set the following addresses on the mixer:...
  • Page 12: 10- Rdm Functions

    10- RDM FUNCTIONS By using a RDM controller it is possible to set DMX address, DMX mode and other parameters. SCENA LED 80 CT accepts the following RDM commands: RDM Device Model ID: 0x0D3F DEVICE_INFO To read the following parameters: •...
  • Page 13: 11- Firmware Updating

    Using these options, it is possible to change the fixture’s setting. Changing the DTS settings can vary the functions of the unit so that it does not respond to the DMX 512 used to control it. Carefully follow the instructions below before carrying out any variations or selections.
  • Page 14 MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION     Display normal orientation for floor mounting position (Default)   Display inverted orientation for suspended mounting position    Display always ON (Default)   Display goes OFF after 10 seconds ...
  • Page 15: 13- Manual Mode

    MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION     To restore default settings     LED temperature monitoring    LED Driver board temperature monitoring     Shows the total unit life time and the Warm White / Cold White LEDs ...
  • Page 16: 15- Dmx Protocol

    15- DMX PROTOCOL 7 CHANNELS MODE (Default) WARM WHITE 2700K COLD WHITE 6000K SHUTTER DIMMER DIMMER FINE FUNCTIONS Name DMX levels WARM WHITE 2700K 0..255 Proportional color from min to max COLD WHITE 6000K 0..255 Proportional color from min to max SHUTTER 0..9 Black-out...
  • Page 17 Name DMX levels FUNCTIONS (staying 0..14 No function on desired option for 15..24 SMOOTH OFF 5 seconds) 25..26 SMOOTH 1 (25 ms) 27..28 SMOOTH 2 (50 ms) 29..30 SMOOTH 3 (75 ms) 31..32 SMOOTH 4 (100 ms) (DEFAULT) 33..34 SMOOTH 5 (125 ms) 35..36 SMOOTH 6 (150 ms) 37..38...
  • Page 18 Name DMX levels NO DMX ACTION – KEEP LAST DMX (DEFAULT) 175..176 NO DMX ACTION – Black-out 177..178 NO DMX ACTION – All channels @ 100% 179..180 NO DMX ACTION – All channels @ 60% 181..182 NO DMX ACTION – 2700K..6000K (active CCT as per display menu > NDMX > WHIT or via RDM Custom 183..184 PIDs (Default = 2700K) 185..194...
  • Page 19 “CTC” MODE DIMMER Name DMX levels DIMMER FINE 0..255 Proportional dimmer from min to max Linear color temperature correction from 2700K to 6000K. Relevant CCT (Correlated Color Temperature) values: 11 = 2700K 54 = 3000K 83 = 3200K 126 = 3500K 169 = 4000K 198 = 4500K 226 = 5000K...
  • Page 20 *0517I287* ● D.T.S. Illuminazione s.r.l. Via Fagnano Selve 12-14 47843 Misano Adriatico (RN) Italy ● Tel.: +39 0541 611131 Fax +39 0541 611111 ● info@dts-lighting.it www.dts-lighting.it 0517I287 Product and specifications subjects to change without notice.
