Edirol V-440HD Owner's Manual

Edirol V-440HD Owner's Manual

Multi-format video mixer
Hide thumbs Also See for V-440HD:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Handbook, Owner's Manual

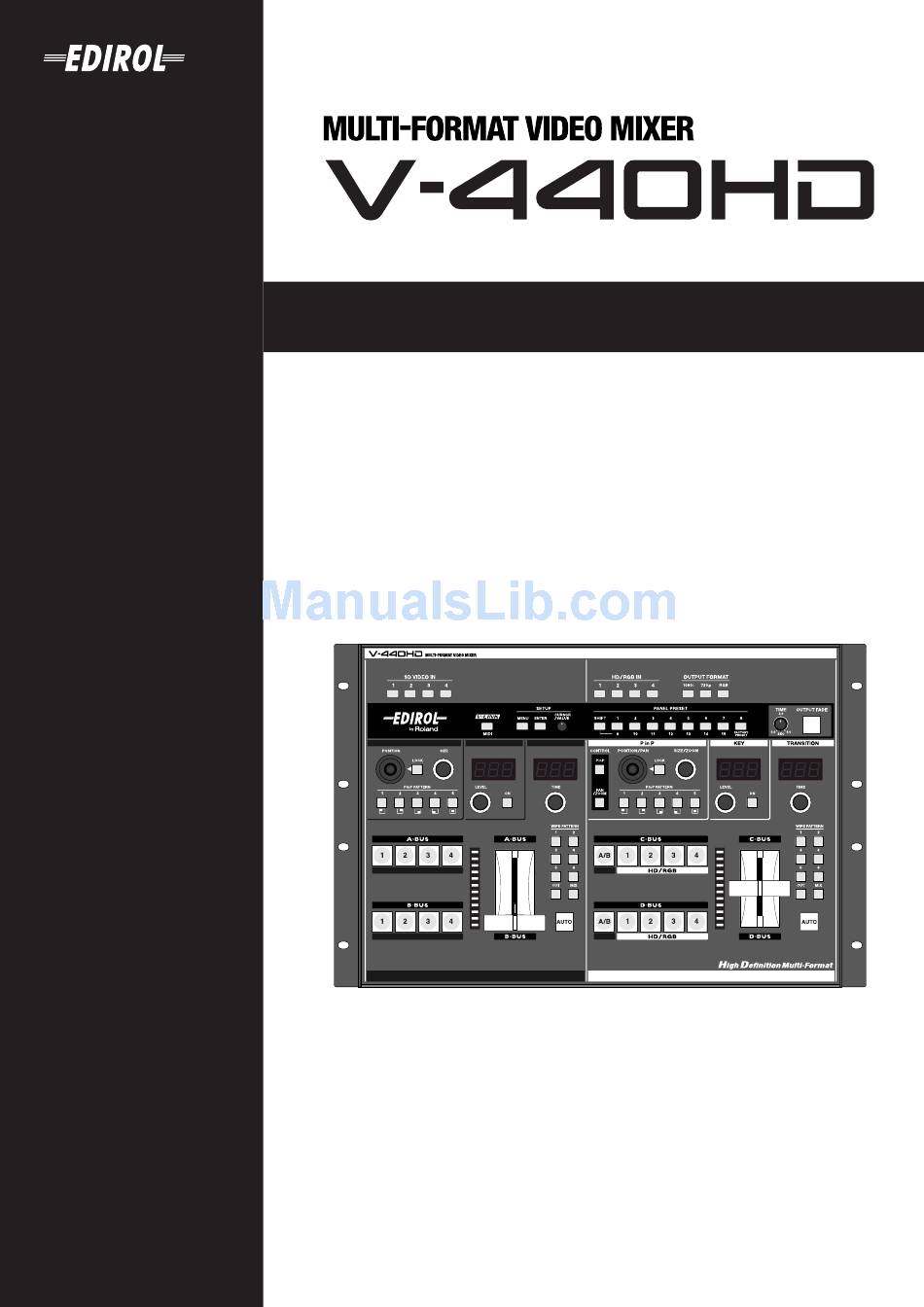

Owner's Manual
201b
Before using this unit, carefully read the sections entitled: "IMPORTANT SAFETY
INSTRUCTIONS" (p. 2), "USING THE UNIT SAFELY" (p. 4), and "IMPORTANT NOTES" (p. 6).
These sections provide important information concerning the proper operation of the unit.
Additionally, in order to feel assured that you have gained a good grasp of every feature
provided by your new unit, Owner's Manual should be read in its entirety. The manual
should be saved and kept on hand as a convenient reference.
202
Copyright © 2005 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the
written permission of ROLAND CORPORATION.
