Tineco CARPET ONE PRO Series Instruction Manual

Smart carpet cleaner
Hide thumbs Also See for CARPET ONE PRO Series:
Table of Contents

Advertisement

Quick Links

CARPET ONE PRO SERIES
Smart Carpet Cleaner
Instruction Manual
*Actual product may differ from illustration.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CARPET ONE PRO Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tineco CARPET ONE PRO Series

Summary of Contents for Tineco CARPET ONE PRO Series

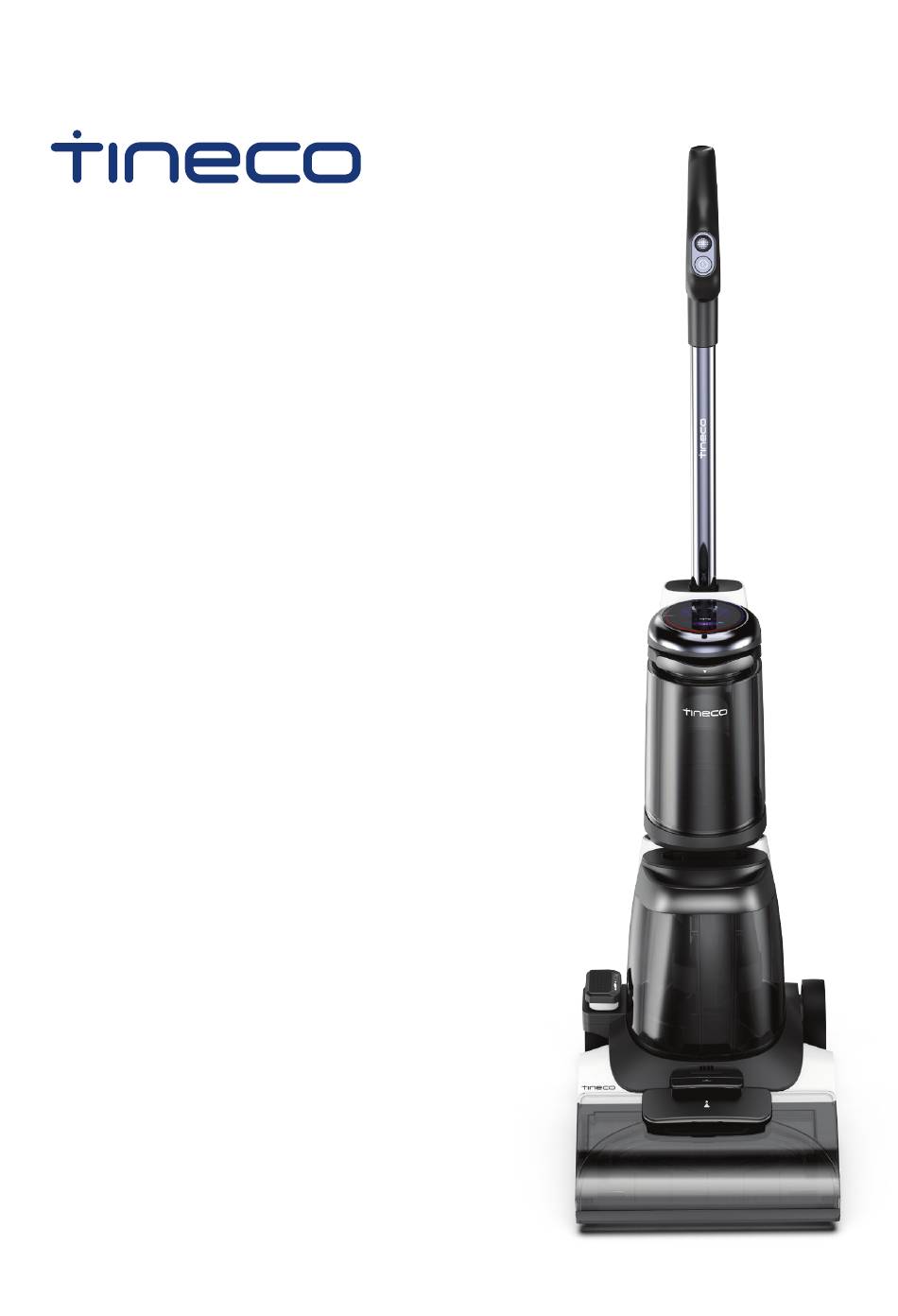

  • Page 1 CARPET ONE PRO SERIES Smart Carpet Cleaner Instruction Manual *Actual product may differ from illustration.

  • Page 3: Table Of Contents

    CONTENTS Important Safety Instructions ............... 2 Specifications ..................5 Overview ....................6 Accessories .................... 7 Assembly ....................8 Operation .................... 11 Maintenance ..................16 Troubleshooting .................. 20 Warranty ....................21...

  • Page 4: Important Safety Instructions

    4. Use only indoors, do not immerse in liquid. To reduce risk of electric shock – Use only on carpet. Do not use on hard floors. 5. To reduce the risk of fire and electric shock – Use only Tineco cleaning products intended for use with this machine.
  • Page 5 34. To avoid hazard, do not run over power cord. 35. To reduce the risk of fire and electric shock due to internal component damage, use only Tineco cleaning fluid/solution: Carpet Deodorizing & Cleaning Solution intended for use with this appliance. See the Cleaning Fluid/Solution section of this manual.
  • Page 6 Range of Usage 1. The Carpet washer is to be used on carpets, such as level loop, etc do not use on hard floors. 2. Keep your appliance away from heat sources, such as fireplace or heater, to avoid casing deformation. 3.

  • Page 7: Specifications

    IPX4 WiFi Frequency Bands 2.4G WiFi Maximum Output Power 19dBm • All data and technical instructions of this manual are based on results from lab tests of Tineco or designated third parties. The company reserves all rights for final explanations.

  • Page 8: Overview

    Overview A. WiFi/Mute/Language Switch Button M. Dirty Water Tank (DWT) B. Back Carry Handle N. Brush Roller Cover Release Button C. Cord Wrap O. Hose Connection Port Cover D. Dirty Water Tank Release Pedal P. Brush Roller Cover E. Recline Pedal Q.

  • Page 9: Accessories

    Carpet Deodorizing & Cleaning Solution Removes dirt, grime, grease and tough stains from most types of carpets. Always use Tineco solution in your appliance. Add two bottle caps of solution to each full tank of clean water. Cleaning Tool A full brush to clean the DWT, brush chamber and opening.

  • Page 10: Assembly

    Assembly How to Assemble/Disassemble To assemble the handle, insert it into the In the event that the handle need to be appliance until you hear a click. disassembled, press the spring to release the handle with a tool (like a screwdriver) and lift the released handle from the appliance.
  • Page 11 Clean Water Tank Press the CWT handle to remove it. Open the tank cap, add two bottle caps of solution to the CWT then fill with tap water to the Max line and tightly close the cap. Note: Only use water under 140°F/60°C. ②...
  • Page 12 Accessory Hose & 2 in 1 Nozzle Choose suitable brush head according to the Pull it up to uncover the accessory connection usage scenario. port. Insert the hose end into the port. You should hear two “Clicks” if done correctly.

  • Page 13: Operation

    Operation Preparing for Use (Appliance) Unwrap the power cord and plug into an electrical outlet. Step on the recline pedal to recline the unit for cleaning position. Tips: • Press the button to turn on/off the voice prompt. • Press the button twice to switch languages.
  • Page 14 Do not grip DWT handle to lift or move the appliance. Stop Working In AUTO/MAX/DRY mode, the appliance will Grip the back carry handle to lift or move stop working when put uprightly and start appliance. Empty CWT and DWT after each running again when you recline.
  • Page 15 Cleaning Mode Selection AUTO Mode • In AUTO mode, the iLoop sensor automatically detects how dirty the carpet is and applies the appropriate volume of water spray. • A red dirt monitoring loop indicates more dirt is detected, and a blue loop indicates less dirt is detected. This mode automatically provides the best cleaning solution.
  • Page 16 Note: Keep sharp objects away from the digital display screen to avoid scratches and scrapes. All the functions can be performed using the Tineco app. Download the Tineco app from the App Store, Google Play and Tineco Official Site. Download on the...
  • Page 17 Voice Prompt (Contents may vary, please in kind prevail.) Status Reminder Quick start guide Maintenance tips Guide for Carpet One Pro Network connection guide Handle dismantling guide Accessory use guide Scan the QR code to download the app and Connect to the appliance connect the appliance WiFi network connected Network connected.

  • Page 18: Maintenance

    Maintenance IMPORTANT! Always switch off the cleaner and remove the power plug from the electricity power supply before cleaning your appliance, when not in use or attempting any maintenance task. Note: • For optimal performance and to prevent odors, always clean and dry DWT, filters, brush roller, brush roller cover, 2 in 1 nozzle completely after each use.
  • Page 19 Dirty Water Tank ② ① Floater Mesh Filter • When dirty water reaches the Max line, the appliance will stop working and show a reminder on the display and play a voice prompt. • Step on the recline pedal and press the DWT handle to remove it. •...
  • Page 20 Brush Roller Cover Press brush roller cover release button on the Rinse with water. Use the provided cover scraper cover and pull upward to remove. to clean the gap in the front side. On floor On carpet When replacing, always latch the brush cover into place to avoid leakage. Brush Roller Remove the brush roller by squeeze the brush Using the cleaning tool, remove the hair and...
  • Page 21 Accessory Hose & 2 in 1 Nozzle ② ① Press the buttons on both sides to remove the Press the release button to remove the hose. accessory brush. Remove the top cover and brush head. Rinse with water. Allow it to dry completely before reinstalling.

  • Page 22: Troubleshooting

    Troubleshooting Problem Possible cause Solution The power cord is not Ensure that the socket is The appliance does not turn on plugged in, or the socket is energized and the power not energized cord is plugged in 1. The mesh filter is blocked 1.

  • Page 23: Warranty

    Warranty 2-YEAR LIMITED WARRANTY Your washer, in the case of domestic use, has a two year parts and labour warranty against product defects and failures when the product is used in accordance with the terms and conditions of this warranty statement. This warranty is provided by Electrical Home-Aids Pty.
  • Page 24 WARRANTY SERVICE Register: We highly recommend that upon purchase, you register your appliance on the Tineco official website (www.tineco.com) and enjoy exclusive benefits. To register, please enter the whole serial number (find it on the back of the appliance).
  • Page 26 Tineco Official Site: www.tineco.com Customer Support & Service Hotline AUS: 1800 815 270 NZ: 0800 282 288 www.godfreys.com.au www.godfreys.co.nz Distributed in Australia & New Zealand, by Electrical Home AIDS Pty Ltd (Godfreys) Brandon Office Park, Building 3, First Floor 530-540 Springvale Road, Glen Waverley VIC 3150 Australia.
