Summary of Contents for Tineco iFLoor

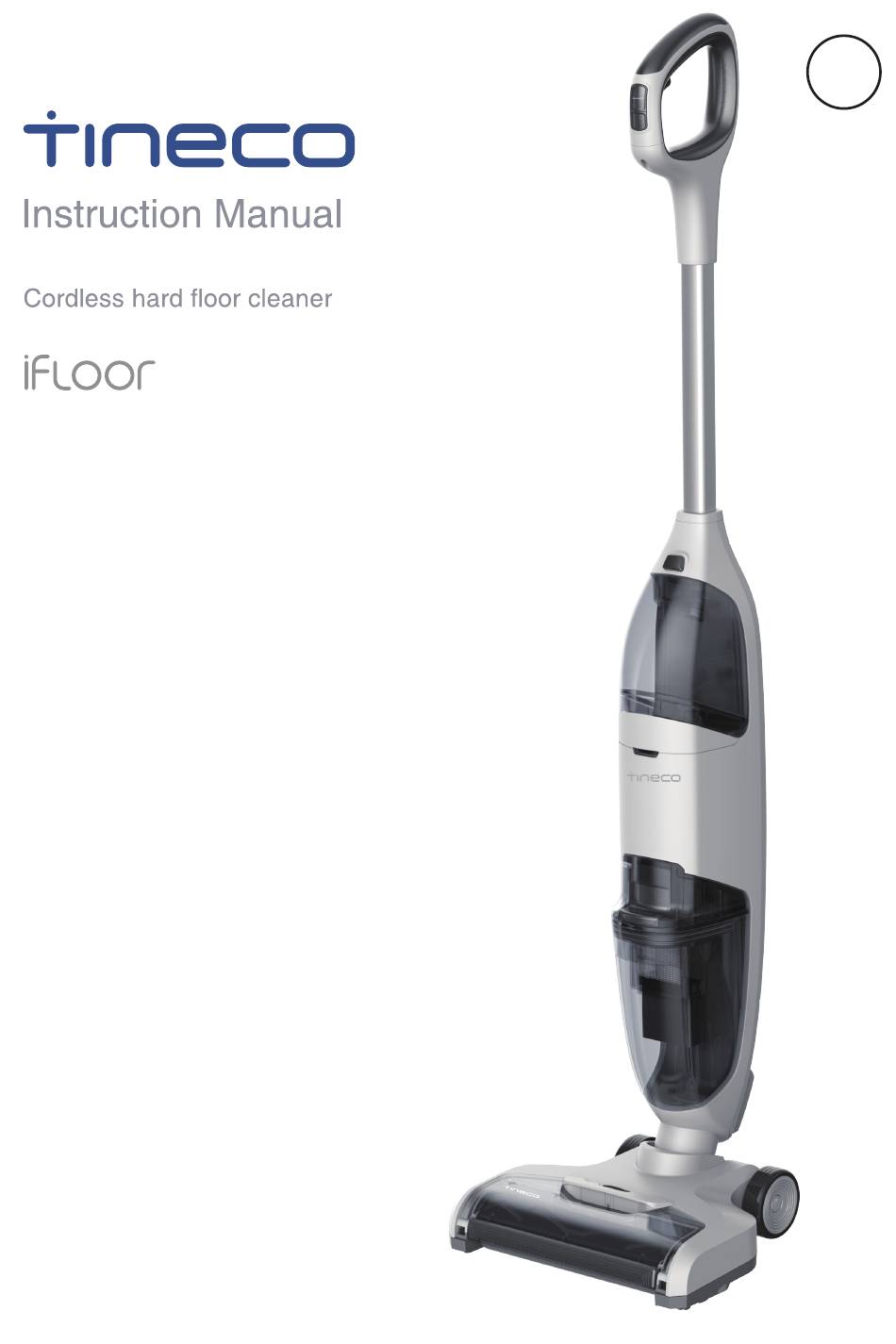

- Page 1 Spot...
-
Page 2: Table Of Contents
CONTENTS 1.Important Safety Instructions 2.Product Components 3.Accessory Instructions 4.Assembly 5.Product Operation 6.Daily Maintenance 7.Trouble Shooting 8.Specification 9.Warranty... -
Page 3: Important Safety Instructions
SAVE THESE INSTRUCTIONS Household use only. When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE), Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. - Page 4 Such preventive safety measures reduce the risk of starting the appliance accidentally. 14. Recharge only with the charger specified by TINECO. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
- Page 5 33. Do not use the appliance when the water depth is more than 5mm above the surface. Range of Usage The iFloor cordless hard floor cleaner is to be used on indoors hard floor, such • as vinyl, tile, sealed wood, etc. Use on a rough surface may not get the best performance.
- Page 6 Do not modify or attempt to repair the cleaner except as indicated in the instruc- • tions for operating and cleaning. Charge the machine with Tineco iFloor adaptor. Input Voltage: AC 100-240V. • Both high and low voltages can damage the adaptor or the machine, even cause danger to the user.
-
Page 7: Product Components
Product Components A. Switch button I. Solution trigger Q. Deodorizing & sanitizing solution B. Spot button J. Handle R. 3 in 1 cleaning tool C. Clean water tank release button K. Handle fix screw S. Charger adaptor D. Indicator light L. -
Page 8: Accessory Instructions
Remove dirt, grime, grease and tough stains from most types of hard surfaces, vinyl, tile, sealed wood, etc. Always use Tineco solution in your machine. Add one bottle cap of solution to the water at a time. 3 in 1 cleaning tool A full brush to clean DWT, brush chamber and the opening;... -
Page 9: Assembly
Assembly To assemble the handle, insert it into In case of product returning, please disassemble the the unit base until you hear a click. handle, first remove the screw with screwdriver, then press the spring located with a tool to release the handle. -
Page 10: Product Operation
Before the first use, please charge the appliance for 3-4 hours (refer to “Charging Instructions” for details). Based on results from Tineco lab tests. Lab temperature 39.2°F (4℃) ~ 104°F (40℃) Use directly when you just need to absorb water; add water/solution when you need to deep clean the floor (refer to “Filling Clean Water Tank Operation”... - Page 11 Product Operation Filling Clean Water Tank Press clean water tank release button to Open the tank cap, fill the tank with warm tap water remove it from the unit. (140°F/60°C MAX) to Max line. When need deep cleaning, add one bottle cap of solution to the water, then close the cap tightly.
- Page 12 • Charge the unit only with the adaptor from TINECO. • For optimal performance, the unit must be charged every 3 months. It may take 3 -4 hours for a full charge.
- Page 13 Product Operation Solid blue light: Normal mode Flashing blue light: Spot mode Flashing red light: The appliance/brush roll is blocked, or out of power During Charging Breathing blue light. Charging Complete Solid blue light for 2 minutes then turns off. *Battery Disposal Warning: •...
-
Page 14: Daily Maintenance
Daily Maintenance Note: • In order to maintain machine performance, it is recommended that you clean the components regularly. • For optimal performance and prevent odor , always clean and dry DWT, floater, filters, pre filter, brush roll, brush roll cover after each use. Main Body To reduce the risk of injury, switch off and disconnect plug from electrical outlet before performing mainte-... - Page 15 Daily Maintenance Dirty Water Tank Note: When dirty water reaches MAX line, the floater will block off your DWT creating a high pitched sound indicating it’s time to switch OFF the appliance. Switch OFF then pull up the tank lid to empty the DWT. Use 3 in 1 cleaning tool to remove remaining debris.
- Page 16 Daily Maintenance Brush roll self-cleaning hold the switch button for 3 sec Note: For optimal performance, use quick self-cleaning • fuction as often as needed. • Please empty the dirty water tank before and after self-cleaning. Place unit on storage tray. The clean water tank should be at least 1/3 full of water.
- Page 17 Daily Maintenance Brush Roll Note: For optimal performance, please clean the brush roll after each use. Remove the brush roll by grabbing the brush Take off the brush roll tab. Remove the hair and roll tab and pulling upward. debris wrapped around the roller with included 3 in 1 cleaning tool.Rinse with water.
-
Page 18: Trouble Shooting
Let the sponge dry out The floater is blocked Remove blockages Note: Please make sure your machine has sufficient power. In any other case or if the solution explained above did not solve the problem, please contact us at support@tineco.com... -
Page 19: Specification
Model iFloor Charging Input 100-240V Voltage 22.2V 2500mAH Li-ion Rated Power 120W Running Time 22mins Charging Time 3-4hrs Normal: about 40ml/min Water Flow Rate Spot: 220ml/min CWT Capacity 17.92FL.OZ.(530ML) DWT Capacity 13.53FL.OZ.(400ML) Waterproof IPX4... -
Page 20: Warranty
Web: www.tineco.com tinecoglobal Email: support@tineco.com US Service Call: +1 (855) 292-8864 Contact us - We'll get back to you within 1 business day. Service Hours: Mon. – Fri. 9am - 6pm (CST)
