- Page 1 3 SERIES Powerful Cordless Vacuum & Washer Instruction Manual Manual De Uso Mode D’emploi *Actual product may differ from illustration.
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions ............... 2 Overview ....................5 Accessories .................... 7 Assembly ....................8 Operation ....................9 Maintenance ..................12 Specifications ..................15 Troubleshooting .................. 16 Warranty ....................17... -
Page 3: Important Safety Instructions
Such preventive safety measures reduce the risk of starting the appliance accidentally. 14. Recharge only with the charger specified by Tineco. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. - Page 4 31. Do not place or submerge appliance in standing water or try to clean flooded areas. 32. All data and technical instructions of this manual are based on results from lab tests of Tineco or designated third parties. The company reserves all rights for final explanations.
- Page 5 1. Do not modify or attempt to repair the appliance except as indicated in the instructions for operating and cleaning. 2. Charge the appliance with the Tineco adaptor. Input Voltage: AC 100-240V. Both high and low voltages can damage the adaptor, appliance, or even cause danger to the user.
-
Page 6: Overview

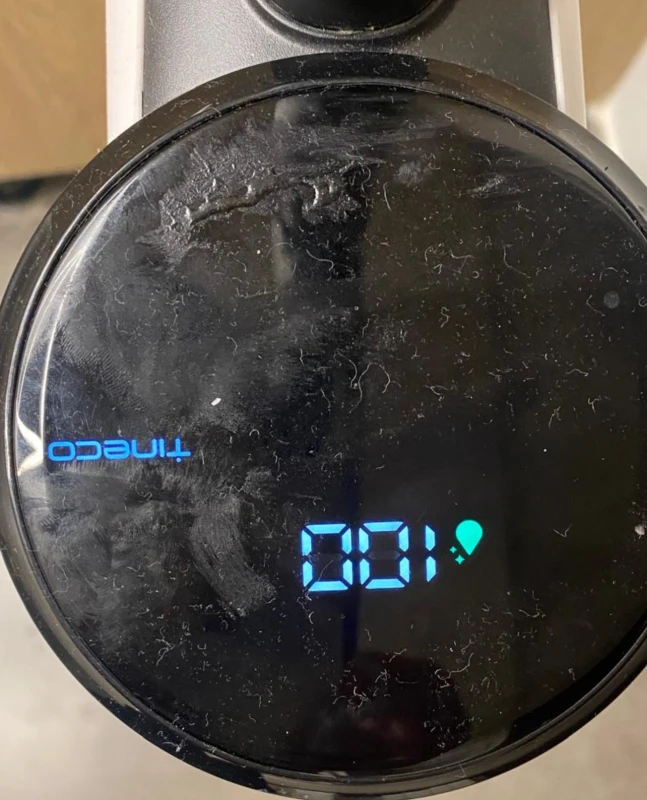

Overview A. Self-cleaning Button L. Dirty Water Tank (DWT) B. MAX/ECO M. Floater C. Power On/Off N. Brush Roller Cover D. Digital Display O. Brush Roller E. Clean Water Tank Release P. Deodorizing & Cleaning Solution F. Clean Water Tank Handle Q. - Page 7 Digital Display A. Self-cleaning Icon D. Battery Indicator B. Brush Roller Tangled Indicator E. CWT Empty C. DWT Full or Blocked F. MAX Power...
-
Page 8: Accessories
Accessories Note: Accessories may vary between markets. If you require more accessories, please go to www.tineco.com or store.tineco.com. Deodorizing & Cleaning Solution Removes dirt, grime, grease and tough stains from most types of hard surfaces, like tile, marble, sealed hardwood floors, and more. -
Page 9: Assembly
Assembly How to Assemble/Disassemble Note: For water tank and brush assembly, please refer to “Operation” and “Maintenance”. To assemble the handle, insert it into the In the event that the product must be returned, appliance until you hear a “Click”. please disassemble the handle. -
Page 10: Operation
Preparing for Use Before first use, please charge the appliance for 4±0.5 hours (refer to “Charging Instructions” for details). * Based on results from Tineco lab tests. Lab temperature 39.2°F (4°C) ~ 104°F (40°C). Press the button and the appliance will start in ECO MAX ECO mode by default. - Page 11 Warning: • Only charge the appliance with the adaptor supplied by Tineco. • During long periods of not being used, the appliance must be charged once every 3 months for optimal performance. It may take 4±0.5 hours for a full charge.
- Page 12 • Estimated runtime data was obtained by a Tineco Laboratory. Charging Time • A full charge takes approximately 4±0.5 hours. • Estimated data was obtained by a Tineco Laboratory using ambient temperatures between 39.2°F (4°C) to 104°F (40°C). Indicator When in Use...
-
Page 13: Maintenance
Maintenance Note: • For optimal performance and to prevent odors, always clean and dry DWT, floater, filters, brush roller, brush roller cover completely after each use. • Please make sure each part is installed correctly or the appliance may not work properly. •... - Page 14 Filter & Floater If the filter and the floater have been blocked, rinse with water. Remove the filter from the tank lid, remove the floater, and rinse both parts with water. HEPA Grasp recessed area on each side of the HEPA and pull upward. Rinse under running water and must be completely dry before recombining with the lid of the DWT.
- Page 15 Brush Roller Cover Grab the front handle while pressing the button Rinse with water. and pull upward to remove. ② ① When replacing, always latch the brush cover into place to avoid leakage. Brush Roller Remove the brush roller by grabbing the brush Remove the brush roller tab.
-
Page 16: Specifications
Specifications Product iFloor 3 SERIES Charging Input 100~240V Voltage 21.6V 3000mAh Lion Rated Power 220W Running Time 18/25 mins Charging Time 4±0.5 hrs Water Flow Rate 30/100ml per min CWT Capacity 0.6L DWT Capacity 0.5L Waterproof IPX4... -
Page 17: Troubleshooting
Self-cleaning icon Brush roller is dirty Start self-cleaning blinking MAX icon blinking Motor malfunction Contact Customer Service Note: If the above troubleshooting guide fails to provide a solution, please contact us at support@tineco.com or visit our website www.tineco.com for further support. -
Page 18: Warranty
WHAT IS COVERED? • Your Tineco appliance has a 2-year warranty against original defects in material and workmanship, when used for private household purposes in accordance with the Tineco Instruction Manual. Motorized accessories and battery bought separately come with a 1-year warranty. - Page 19 All work will be carried out by Tineco or its authorized agency. Any replaced defective parts will become the property of Tineco.
- Page 20 Contact us - We’ll get back to you within 1 business day. support@tineco.com Comuníquese con nosotros, lo contactaremos dentro de 1 día hábil. 1-855-292-8864 Contactez-nous – Nous vous répondrons dans un délai d’un jour ouvrable. Mon. - Fri. 9am - 6pm (CST)
