- Page 1 FLOOR ONE S7 SERIES Smart Cordless Floor Washer Instruction Manual *Actual product may differ from illustration.
-
Page 3: Table Of Contents
CONTENTS Important Safety Instructions ............... 3 Specifications ..................6 Overview ....................7 Accessories .................... 8 Assembly ....................9 Operation .................... 10 Maintenance ..................16 Troubleshooting .................. 20 Warranty ....................21... - Page 4 Precautionary measures: 1. Do not operate the hard floor washer too close to heaters, radiators or other hot surfaces. 2. Before inserting the charger into the wall, make sure your hands are dry. 3. Before turning on the hard floor washer, safely remove any large objects from the floor or cleaning surface in order to prevent damage to the filter.
-
Page 5: Important Safety Instructions
Important Safety Instructions IMPORTANT! Always switch off the hard floor washer before cleaning, when not in use or attempting any maintenance task. The charger must only be connected to an AC power supply at the voltage shown on the rating label. This hard floor washer should only be used for its intended purpose as described in this instruction manual. - Page 6 23. Keep your hands away from the roller 14. Before using the hard floor washer, remove any large or sharp objects from brush while the hard floor washer is the floor or cleaning surface in order to switched on. 24. To prevent unnecessary wear on the prevent damage to the filter.
- Page 7 Battery use and care 1. The appliance is only to be used with the charger provided with the appliance. 2. Only charge the battery inside the washer or the charging dock. Only use the specifically designated charger to charge the product. 3.
-
Page 8: Specifications
Specifications Product FLOOR ONE S7 SERIES AC Input 100-240V~ Voltage 25.2V 3900mAh Lion Rated Power 230W Running Time AUTO/ULTRA/SUCTION: ~40 mins MAX: ~28 mins Charging Time 4-5 hrs Water Flow Rate 20~100ml/min CWT Capacity ~0.85L DWT Capacity ~0.72L Waterproof IPX4 WiFi Frequency Bands 2.4G... -
Page 9: Overview
Overview A. Menu Button K. Dirty Water Tank (DWT) B. Power On/Off L. Brush Roller Cover C. Digital Display M. Brush Roller D. Dirty Water Tank Release N. Deodorizing & Cleaning Solution E. Dirty Water Tank Handle O. Cleaning Tool F. -
Page 10: Accessories
Removes dirt, grime, grease and tough stains from most types of hard surfaces, like tile, marble, sealed hardwood floors, and more. Always use Tineco solution in your appliance. Add one bottle cap of solution to each full tank of clean water. -
Page 11: Assembly
Assembly How to Assemble/Disassemble Note: For water tank and brush assembly, please refer to “Operation” and “Maintenance”. To assemble the handle, insert it into the In the event that the handle need to be appliance until you hear a click. disassembled, press the spring to release the handle with a tool (like a screwdriver) and lift the released handle from the appliance. -
Page 12: Operation
• Before first use, please charge the appliance for 4-5 hours (refer to “Charging Instructions” for details). * Based on results from Tineco lab tests. Lab temperature 39.2°F (4°C) ~ 104°F (40°C). • For the first use, the appliance will display the Quick Start Guide and Interactive Tutorial, press the Self-cleaning button to exit. - Page 13 Press the button and the appliance will start in AUTO mode by default, press the Select button to switch between different modes. Stop Working Start Again The appliance will stop working when put uprightly Place the appliance on the charging base and start running again when you recline.
- Page 14 Warning: • Only charge the appliance with the adaptor supplied by Tineco. • During long periods of not being used, the appliance must be charged once every 3 months for optimal performance. It may take 4-5 hours for a full charge.

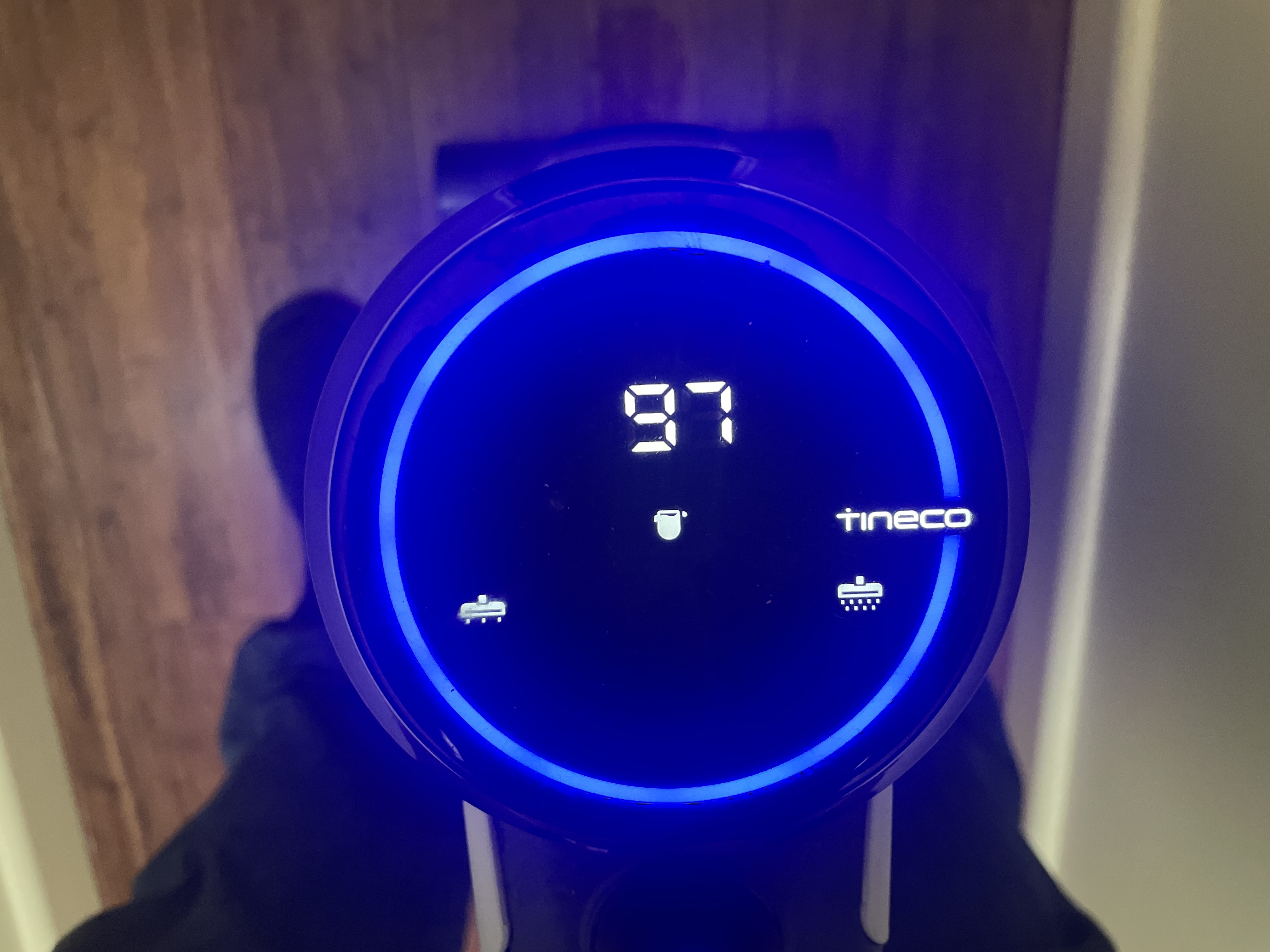

- Page 15 Digital Display An updated display shows everything with interactive animation, giving you a brand new experience during and after cleaning. Note: Keep sharp objects away from the digital display screen to avoid scratches and scrapes. Cleaning Mode Selection AUTO Mode •...
- Page 16 • Estimated data was obtained by a Tineco Laboratory using ambient temperatures between 39.2°F (4°C) to 104°F (40°C). All the functions can be performed using the Tineco app. Download the Tineco app from the App Store, Google Play and Tineco Official Site.
- Page 17 Voice Prompt (Contents may vary, please in kind prevail.) Status Reminder Hi, welcome to Tineco Assistant. Let’s begin the Before first use Quick Start Guide. Voice prompts on Voice prompts on. Voice prompts off Voice prompts off. Scan QR code to download app and connect Connect the Tineco app appliance.
-
Page 18: Maintenance
Maintenance Note: • For optimal performance and to prevent odors, always clean and dry DWT, filters, brush roller, brush roller cover completely after each use. • Please make sure each part is installed correctly or the appliance may not work properly. •... - Page 19 Dirty Water Tank • When dirty water reaches the Max line, the appliance will stop working and show a reminder on the display and play a voice prompt. • Pull up the tank lid to empty the DWT. Use the cleaning tool to remove remaining debris. Rinse the inside of the DWT and place back into the appliance.
- Page 20 Brush Roller Self-cleaning 1. Place the appliance on the charging base after use, the sensor will auto-detect the level of dirt. 2. Press the self-cleaning button and you can select the Quick Self-cleaning (takes 2 minutes) or Super Self- cleaning (takes 6 minutes) to begin the process. 3.
- Page 21 Brush Roller Remove the brush roller by grabbing the Using the cleaning tool, remove the hair and brush roller tab and pulling out. debris wrapped around the roller and rinse with water. Replace the brush roller back into the accessory holder, and allow it to dry completely before reinstalling.
-
Page 22: Troubleshooting
Troubleshooting Problem Possible cause Solution 1. No power 1. Charge the appliance 2. Auto protection for The appliance does not turn on 2. Restart after cooling down overheating The dry filter is not installed, or Install the dry filter or clean and Weak suction the dry filter is dirty allow it to dry completely... -
Page 23: Warranty
Warranty 2-YEAR LIMITED WARRANTY Your washer, in the case of domestic use, has a two year parts and labour warranty against product defects and failures when the product is used in accordance with the terms and conditions of this warranty statement. This warranty is provided by Electrical Home-Aids Pty. - Page 24 If proof of purchase cannot be provided at the time of a warranty claim or service, any work carried out on the washer is chargeable. The repair of the washer under this warranty does not extend the original period of warranty. The benefits conferred by this warranty are in addition to all other rights and remedies in respect of the product as outlined under the Competition and Consumer Act and other State and Territory laws.
- Page 28 Tineco Official Site: www.tineco.com Customer Support & Service Hotline AUS: 1800 815 270 NZ: 0800 282 288 www.godfreys.com.au www.godfreys.co.nz Distributed in Australia & New Zealand, by Electrical Home AIDS Pty Ltd (Godfreys) Brandon Office Park, Building 3, First Floor 530-540 Springvale Road, Glen Waverley VIC 3150 Australia.
