Tineco Pure One S12 Instruction Manual

Smart vacuum cleaner
Hide thumbs Also See for Pure One S12:

Advertisement

Table of Contents

Instruction Manual
Smart Vacuum Cleaner

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pure One S12 and is the answer not in the manual?

Questions and answers

Eli Britt
January 24, 2025

How too install wall mounting

0
1 comments:
Mr. Anderson
February 10, 2025

To install the wall mount for the Tineco Pure One S12:

1. Determine the Location: Choose a suitable wall location for mounting.
2. Assemble the Brackets: Attach the two bracket components together until you hear a “click,” indicating correct assembly.
3. Measure the Height: Position the dock so that the lower screw hole is approximately 120 cm from the floor. Adjust if necessary based on your situation.
4. Secure the Dock: Use the provided screws to affix the dock to the wall.
5. Safety Precautions:
- Ensure the wall area is free of gas, water pipes, electrical cables, and wires.
- Make sure the dock is firmly installed to prevent it from falling.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Tineco Pure One S12

Summary of Contents for Tineco Pure One S12

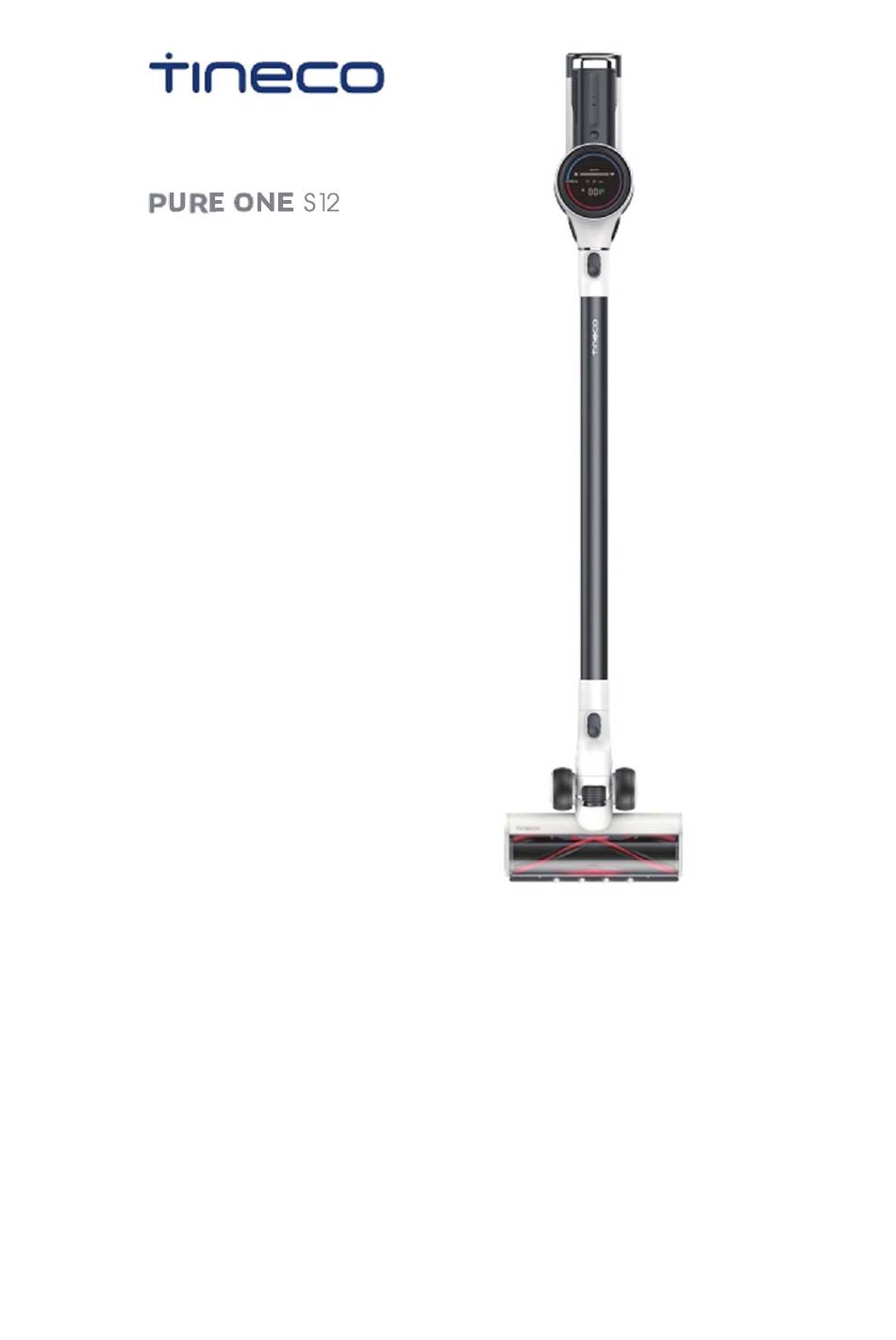

  • Page 1 Instruction Manual Smart Vacuum Cleaner...

  • Page 2: Table Of Contents

    CONTENTS ............ 1.Important Safety Instructions ..................2.Overview ..............3.Product Components 4.Accessory Instructions ................................ 5.Assembly 6.Product Operation ............................7.Daily Maintenance ................8.Specification 9.Troubleshooting ................10.Warranty ..................

  • Page 3: Important Safety Instructions

    A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. 16. Use appliances only with specifically designated TINECO battery packs. Use of any other battery packs may create a risk of injury and fire.
  • Page 4 18. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. 19. Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
  • Page 5 Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. such modifications could void the user’s authority to operate this equipment This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment.

  • Page 6: Overview

    Overview A B C D E F G H I J K L M A. Dust sensor G. Switch lock B. Digital display screen H. Dustbin release button C. Dust empty release button I. Switch button D. Dustbin J. Power control slider E.
  • Page 7 A. Battery icon E. Air channel blocked B. Brush roller tangled F. Dust sensor defective C. Dust monitoring loop G. Power indicator （Red to blue according to the H. Tineco logo dust amount） I. WiFi indicator D. AUTO mode J. Battery level...

  • Page 8: Product Components

    Product Components Item PURE ONE S12 PURE ONE S12 PLUS Main body Tube Direct-drive LED multi-tasker power brush Mini power brush 2-in-1 dusting brush Crevice tool Soft dusting brush Flexible long crevice tool LED soft-roller power brush Multi-angle folding tube...

  • Page 9: Accessory Instructions

    Accessory Instructions Note: · Test an inconspicuous area of a sensitive surface before using an accessory on it. · All accessories can be directly connected to the main body or to the tube. Direct-drive LED multi-tasker power brush Direct-drive technology increases the cleaning efficiency and creates a highly dynamic operation, very effective for agitating dirt embedded in the carpet, easy to clean fine dust and debris.
  • Page 10 Flexible extension hose Excellent extension and flexibility to get into hard-to-reach spaces, great for in-car usage. Use with TINECO accessories, except motorized brush. Automatic pre-filter cleaning tool Dirty filter is a main cause of suction loss, this tool is designed for a deeper &...

  • Page 11: Assembly

    Assembly Install the Tube Insert tube. Press the release button and remove tube. Install the Brush Inset the power brush. Press the release button and remove power brush.
  • Page 12 Assembly Install the Dustbin ① ② To better clean the dustbin, press the Incline the dustbin, the slot on the dustbin dustbin release button and pull out. towards the hook on the main body. Push upward until the hook fixed into the slot. A 'click' sound will be heard when it has been successfully accomplished.

  • Page 13: Product Operation

    Product Operation Start to Work Note: · Before the first use, please charge the appliance (see“Charging the battery”) for 3-4 hours in an area where the temperature is higher than 39.2°F (4℃) but lower than 104°F (40℃), and the above charging time based on the condition that the battery is cooled. ·...
  • Page 14 Then area. install the wall-mounted dock to the · To avoid the dock dropping down, please make sure it must be installed firmly. wall with the nails provided by Tineco. Plastic Expansion Size: φ4.8mm Φ7.6mm Length 37.7mm Screw Size:φ5*38 ①...
  • Page 15 Product Operation Cleaning Mode Selection AUTO mode · In AUTO mode, the power indicator and the color of dust monitoring loop change along with the dust amount. The color change from red to blue as the place getting cleaner. You can get the best cleaning solution automatically.
  • Page 16 Product Operation Manual mode Power up Power down In AUTO mode, swipe the power control slider, and the appliance switches to Manual mode with “AUTO” indicator off. In Manual mode, you can control the power as needed. Note: Please keep your hands dry when using it. Oil and water stains on your finger may affect screen swiping.
  • Page 17 Product Operation App User Guide · All the functions can be performed using the Tineco App. Download Tineco App to access more features. Tineco iOS 8.0 or later Android 5.0 or later Download App Register and log in Add a device Click "Add a device", select the model and connect to the network.
  • Page 18 Product Operation WiFi ③ Switch ① Release ② button Ensure that the appliance has enough power, press Please choose your the switch for 2s to activate. network and enter the Press release button to remove the dustbin, hold password for the first WiFi reset button for 2s and wait for connection.
  • Page 19 Dual adaptor can charge two battery packs at the same time. Warning: · Charge the unit only with the adaptor from TINECO. · When you won't use the lithium battery for a long time, please store in a cool dry place.
  • Page 20 · Data is obtained by Tineco laboratory using one battery and non-motorized accessories. Charging Time · A full charge takes about 3-4 hours. · Based on results from Tineco lab tests. Lab test environment: temperature between 39.2°F (4℃) to 104°F(40℃). Indicator Light ·...
  • Page 21 Fully charged (Battery level up to 100%) In 5 mins Battery icon & Battery indicator: Solid green light. Tineco indicator lights up. 5 mins later: All off. Battery icon blinking green light: No battery pack or battery pack installed improperly.

  • Page 22: Daily Maintenance

    Daily Maintenance In order to maintain appliance performance, it is recommended that you clean the components periodically. Note: · Clean the dustbin and filters every time after use. · The HEPA and pre-filter are consumable. Replace them with new ones when the suction performance cannot get back to normal after cleaning.
  • Page 23 Daily Maintenance Pre-filter Please turn off the appliance before cleaning and take out the dirty pre-filter from the mesh filter-holder. Activate the appliance to clean the pre-filter and it will automatically shut off in 1 min once finished. Then remove the filter for backup after cleaning.
  • Page 24 Tineco Hair Cleaning Tool. Insert the brush roller into the brush window, and align the two fitting marks. Push down the cover until it securely in place.

  • Page 25: Specification

    Specification Model MODEL &Voltage Rated Power 500W Dustbin Capacity 0.6L Charging Time 3-4 hrs 100-120V～ Charging Input Running Time(Two betteries） 50*2 min. (MAX mode: 10.5*2 Adapter Model：CHA12NA Disposal · The battery contains materials that are harmful to the environment and must be removed from the appliance before it is discarded. ·...

  • Page 27: Troubleshooting

    Troubleshooting...
  • Page 28 Install the battery on the main installed improperly during blinking green light body properly charging Note: In any other case or if the solution explained above did not solve the problem, please contact us at support@tineco.com or visit our website www.tineco.com for further support.

  • Page 29: Warranty

    This limited warranty is subject to the following terms: WHAT IS NOT COVERED? TINECO shall not be liable for costs, damages or repairs incurred as a result of: Machines purchased from an unauthorized dealer. Careless operation or handling, misuse, abuse and/or lack of maintenance or use not in ac- cordance with the TINECO Instruction Manual.
  • Page 30 Your remedy for breach of this warranty is limited to the warranty service described above. TINECO will not be liable for any consequential damage or incidental damages you may incur in connection with your purchase and use of your machine. This limitation is not allowed by some regions and so this limitation may not apply to you.
  • Page 32 Live Easy Enjoy Life tinecoglobal +1(855)292-8864 Mon. - Fri. 9am - 6pm (CST) Support and Feedback Support@tineco.com www.tineco.com   Contact us - We'll get back to you within 1 business day.
