Mounting - Control unit CPL-B

Place the central unit at eye level on the wall in the shaft head (highest cabin position).
Align temperature sensor
vertically, ensure distance
from heat sources
(e.g. braking resistor).

Mounting - Point detector in the lift shaft PD-RJ-AIO

- Arrange point detectors vertically in a line if
possible.
- The corresponding RJ cable lengths with
coupling are supplied depending on the shaft
height.
- Mount the point detector on the lift shaft wall in
the shaft pit using the mounting brackets.
Leave a free space of 13.5 cm.
- Fix the cables to the shaft wall with mounting
dowels and cable ties.
- Connect the top point detector to the „SD" socket
on the central unit.
Fastening materials:
2x nail dowels 6x40 mm / detector
Mounting dowel with cable ties - for RJ45 cable
12/40
AIO Basic

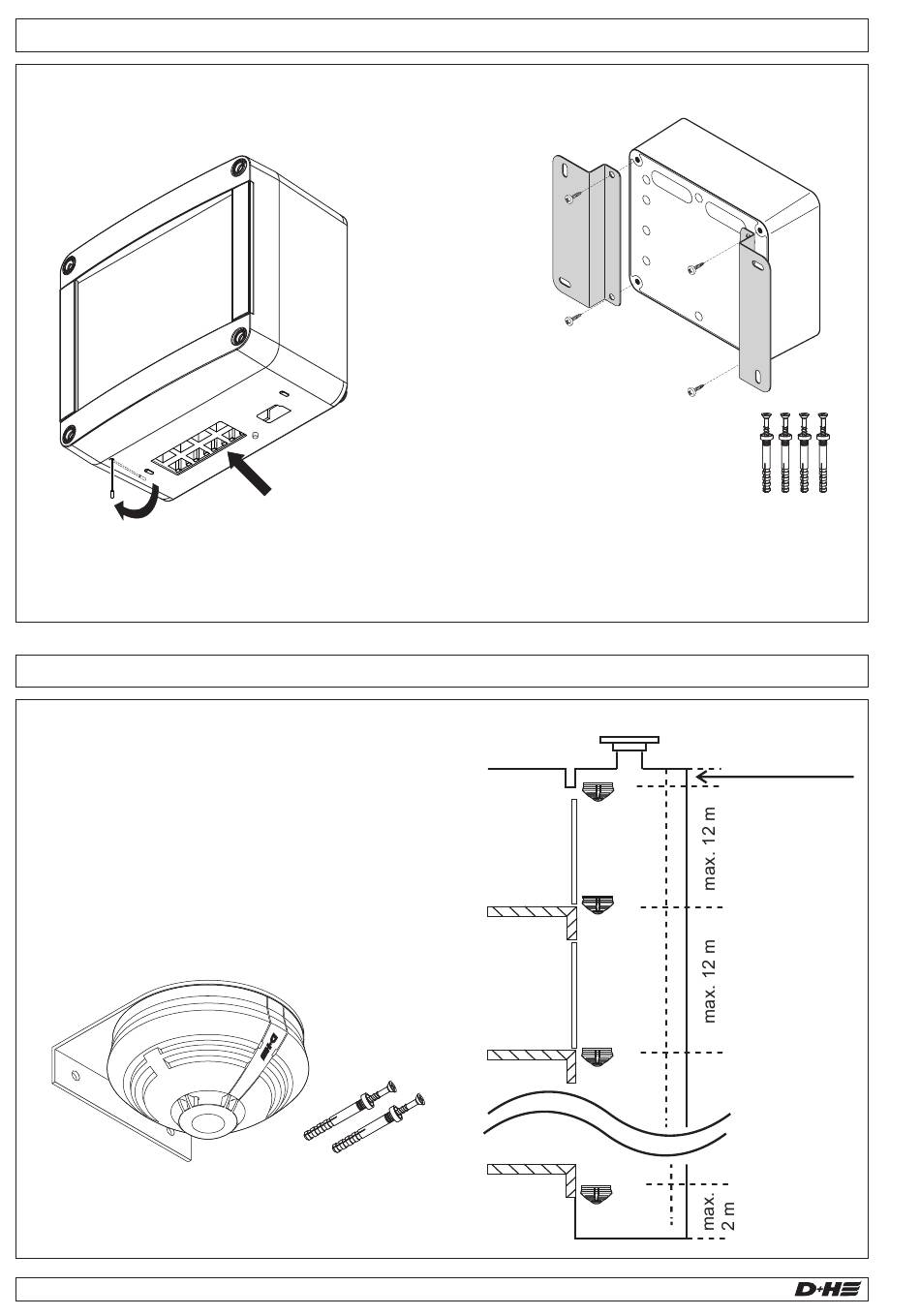

Fasten the mounting brackets
for rear ventilation with
self-tapping screws.
Terminals at the bottom,
status LEDs must be
clearly visible
English
Fastening materials:
2 x mounting bracket
4 x self-tapping screw for mounting bracket
4 x nail dowel 6 x 40 mm
99.829.07 1.2/06/23
max. 45 cm
below the
shaft ceiling
