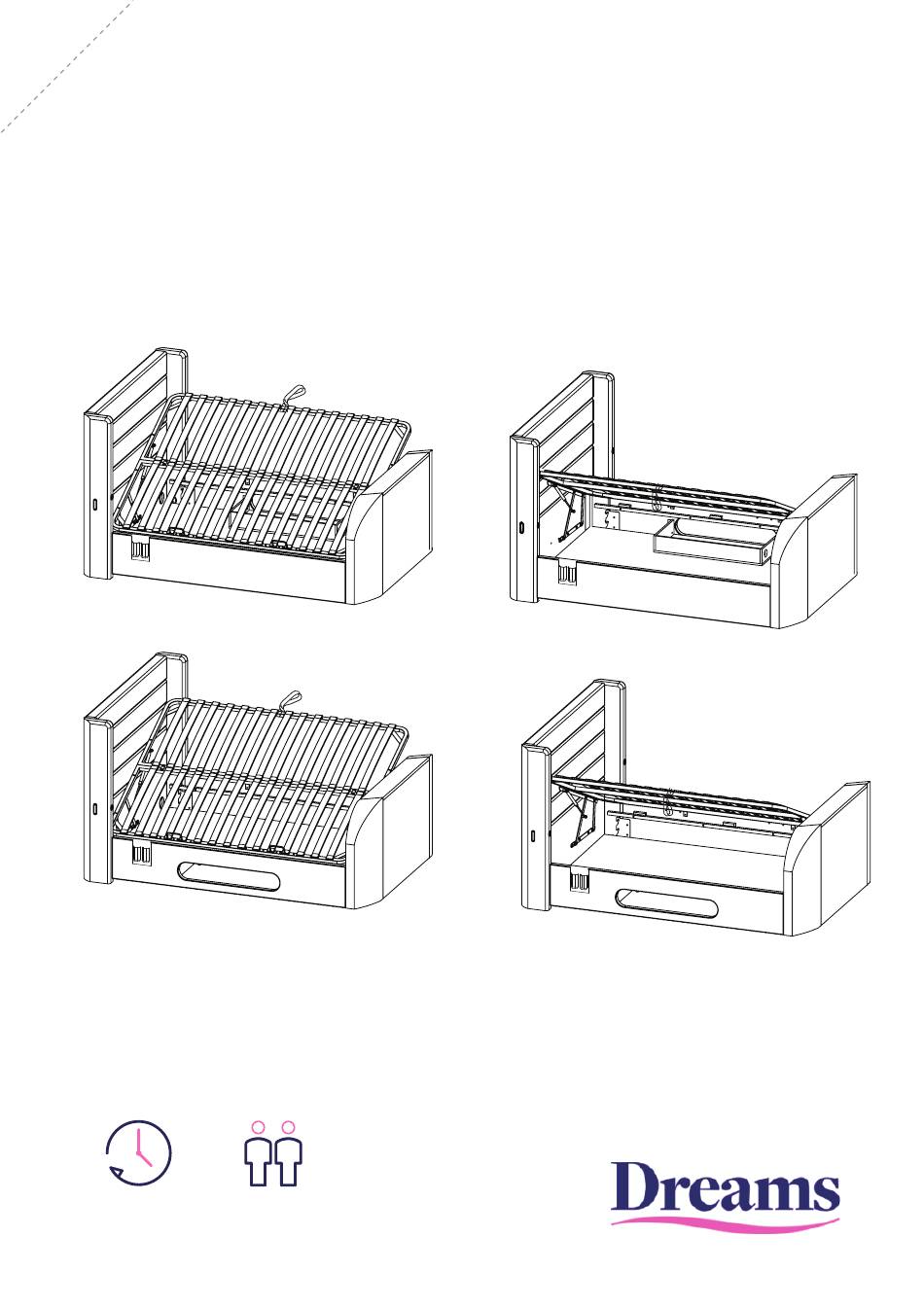

- Page 1 DRIFT TV BED WHEN THE OTTOMAN UPGRADE IS SELECTED - PLEASE USE THIS AI -- IGNORE THE STANDARD BED AI IN PACK 3 1.5 hour approx Two person assembly time assembly MK1 220422...
-
Page 2: Assembly Tips
Thank You Dear Customer, Thank you for choosing to purchase your bed from Dreams - we hope it brings you your best ever night’s sleep. Before you begin building your bed, please take a moment to read through the instructions and make sure that you've got all the relevant parts listed on the following pages. - Page 3 WARNING: ONLY USE THE HANDLE TO LIFT & TO AVOID ACCIDENTS LOWER THE BED FRAME TO TO ACCESS THE STORAGE AREA THE OTTOMAN FRAME MUST BE FULLY OPENED AND THEN FULLY CLOSED AFTERWARDS AVOID TRAPPING FINGERS! Drift TV Bed - Assembly guide - Page 3...
-
Page 4: Parts List
Angled hook bracket - Footend LH TV Installation Kit Angled hook bracket - Footend RH Remote Control Holster Metal Slat Support Rail USB Connection Cable Cushion Block Slat Frame Wooden Support Rail HDMI 90° Adapter Drift TV Bed - Assembly guide - Page 4... - Page 5 Bolts (M8x30mm) for fitting Plastic barrel nuts Screws (5x50mm) for cable guard to footboard for bolts (m) assembling cable guard Flat washer for M8 bolts Drift TV Bed - Assembly guide - Page 5...
-
Page 6: Tools Required
0 10 1 Fit wings to the headboard one at a time. Unzip both access compartments. Release USB cables from bottom of the wings. & iii) Put first wing close to the headboard. Drift TV Bed - Assembly guide - Page 6... - Page 7 - tighten with Allen key (d). Repeat on the other side. x3 sets Each Side Connect the the two USBs to the ‘Y’ cable. Drift TV Bed - Assembly guide - Page 7...
- Page 8 100%. Fit the brackets (K, L & M) using x12 bolt sets tightening them 90%. p(b) 10mm p(a) Align with Blue labels Bolts should be in centre of long holes Drift TV Bed - Assembly guide - Page 8...
- Page 9 100% Fit the brackets (K, L & M) using x12 bolt sets tightening them 90%. 10mm p(a) p(b) Align with Red labels Bolts should be in centre of long holes Drift TV Bed - Assembly guide - Page 9...
- Page 10 Foot Board sets, fix to RH side Side rail as shown. Rail Drift TV Bed - Assembly guide - Page 10...
- Page 11 & footboard, this has red connections at each end. Connect the black LED connections at each end of the side rail. LH Wing Headboard Left hand side rail Footboard Left hand side rail Drift TV Bed - Assembly guide - Page 11...
- Page 12 Birds Eye View of the support bars (N) 15mm Right 15mm Inside the bed 10mm 10mm Left Left Right side rail side rail Footend Fit the four cushion pads (O) and the two central supports (P). Drift TV Bed - Assembly guide - Page 12...
- Page 13 At each end, fix the cables neatly to the velcro tabs on the faces of the headboard & footboard. Drift TV Bed - Assembly guide - Page 13...
- Page 14 (W) to your wall socket - for safety this must have an earthed power supply. Connect aerial lead (X). Prepare to fit the television. Press the “UP” button to raise the TV lift. Drift TV Bed - Assembly guide - Page 14...
- Page 15 Right side rail Once the three cables are lined up and all connected, slide the upper base board across into position making sure the cables are not trapped underneath the glides. Drift TV Bed - Assembly guide - Page 15...
- Page 16 TV and re-tighten the two bolts. iii) The upper part of each support (o) slides to hold front of TV in place. Please follow the instructions on how to correctly set these supports in Step 13 Drift TV Bed - Assembly guide - Page 16...
- Page 17 Once set, lightly push down on top of centre of the TV and tighten the two Vesa bolts 100%, these should be in the centre of the long holes as shown. Drift TV Bed - Assembly guide - Page 17...
- Page 18 REMOVE DUST-CAP SOCKET When the HDMI socket is on the back of the TV, this 90º adapter (AF) must be used or cable may be damaged by the TV compartment lid. Drift TV Bed - Assembly guide - Page 18...
- Page 19 Press the “DOWN” button to lower the TV lift Assemble the media tray. n x2 iii) m x7 n x7 n x2 Drift TV Bed - Assembly guide - Page 19...
- Page 20 , use clips (Z) to keep cables neat. RC for TV 100 % Assemble the cable guard. m x4 Drift TV Bed - Assembly guide - Page 20...
- Page 21 Using four bolt sets (r, b & c) fit the metal connection plates (v) into the threaded inserts on top of the frame. Use Allen key (d) to tighten all four bolts 100%. Drift TV Bed - Assembly guide - Page 21...
- Page 22 8mm, as in the sketch below right. iii) Hold frame firmly then tighten all six bolt sets 100% using spanner (u) & Allen key (d). Drift TV Bed - Assembly guide - Page 22...
- Page 23 Note: Be very careful what you store under the bed -the top of an item, like a suitcase or a box, must not touch the slats or they may be damaged. Maximum storage height is 170mm. Drift TV Bed - Assembly guide - Page 23...
- Page 24 JACKPLUG INTO THIS SOCKET TOTAL POWER IS 5V 2.1A. AND SOUND FROM MAIN SPEAKERS IS CUT OFF. NOTE THIS USB IS FOR CHARGING ONLY, IT CANNOT PLAY MUSIC OR VIDEOS THROUGH THE SYSTEM. Drift TV Bed - Assembly guide - Page 24...
-
Page 25: Care And Maintenance
Metal tends to be more resilient to everyday wear and tear. We recommend to gently dust your metal furniture and keep it dry to maintain its look. Thank you for shopping with us - we hope you have a great night's sleep. - Care and maintenance guide - Page 25 Drift TV Bed... - Page 26 TV BED SAFETY INFORMATION GENERAL INFORMATION It is very important not to place any vessel containing liquids, e.g. drinks or vase of flowers, on top of the TV footboard which may accidentally spill and enter the TV compartment as this could cause damage to the TV and/or the TV lifting equipment. If this happens, please contact Customer Services - ring 0800 652 6750.
- Page 27 Little dreamers Keep the little ones entertained while you assemble your new purchase.
Need help?
Do you have a question about the DRIFT TV BED and is the answer not in the manual?
Questions and answers

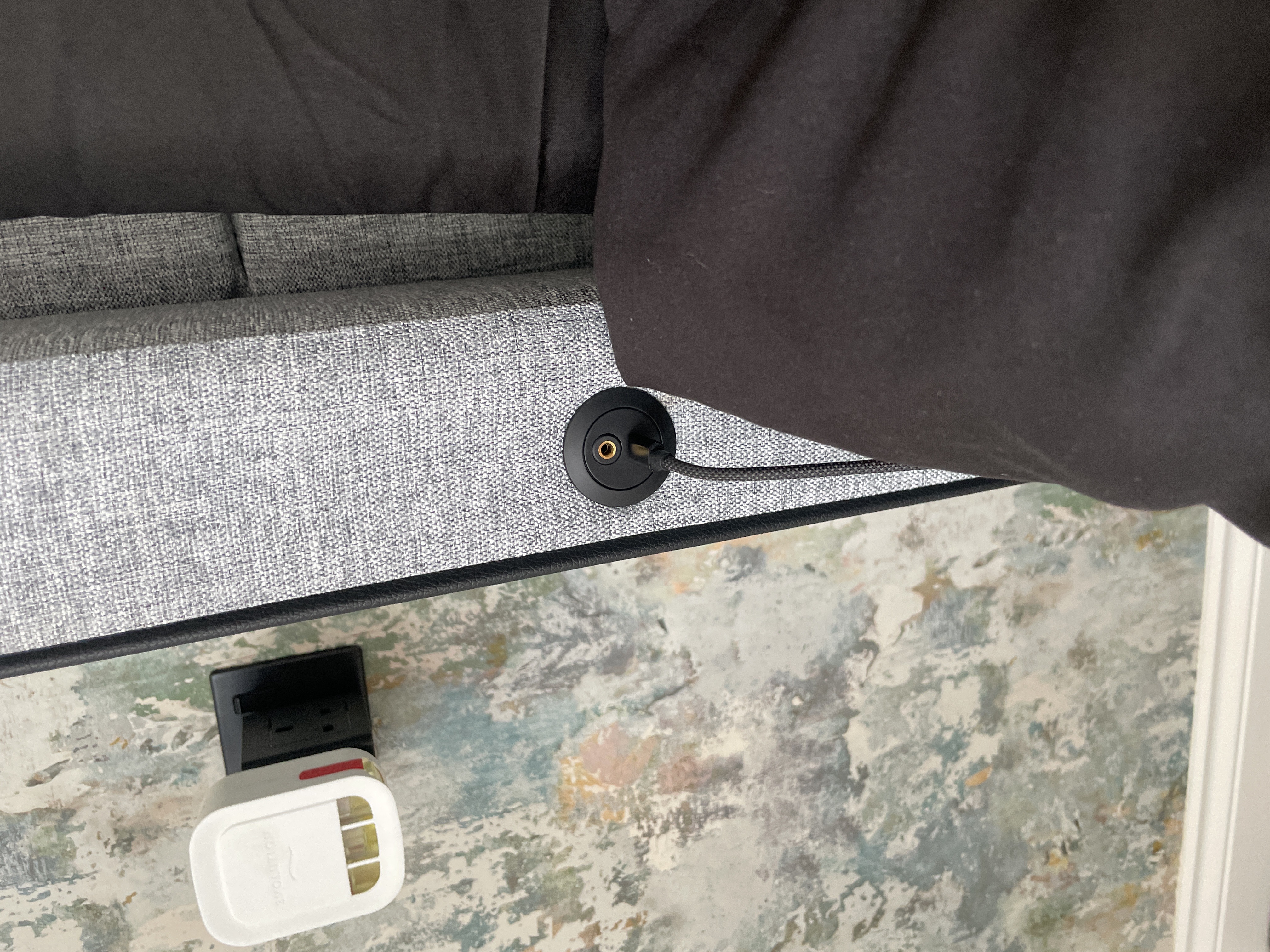

The phone power cable doesn’t work on both sides. I haven’t tried the headphone port yet.
