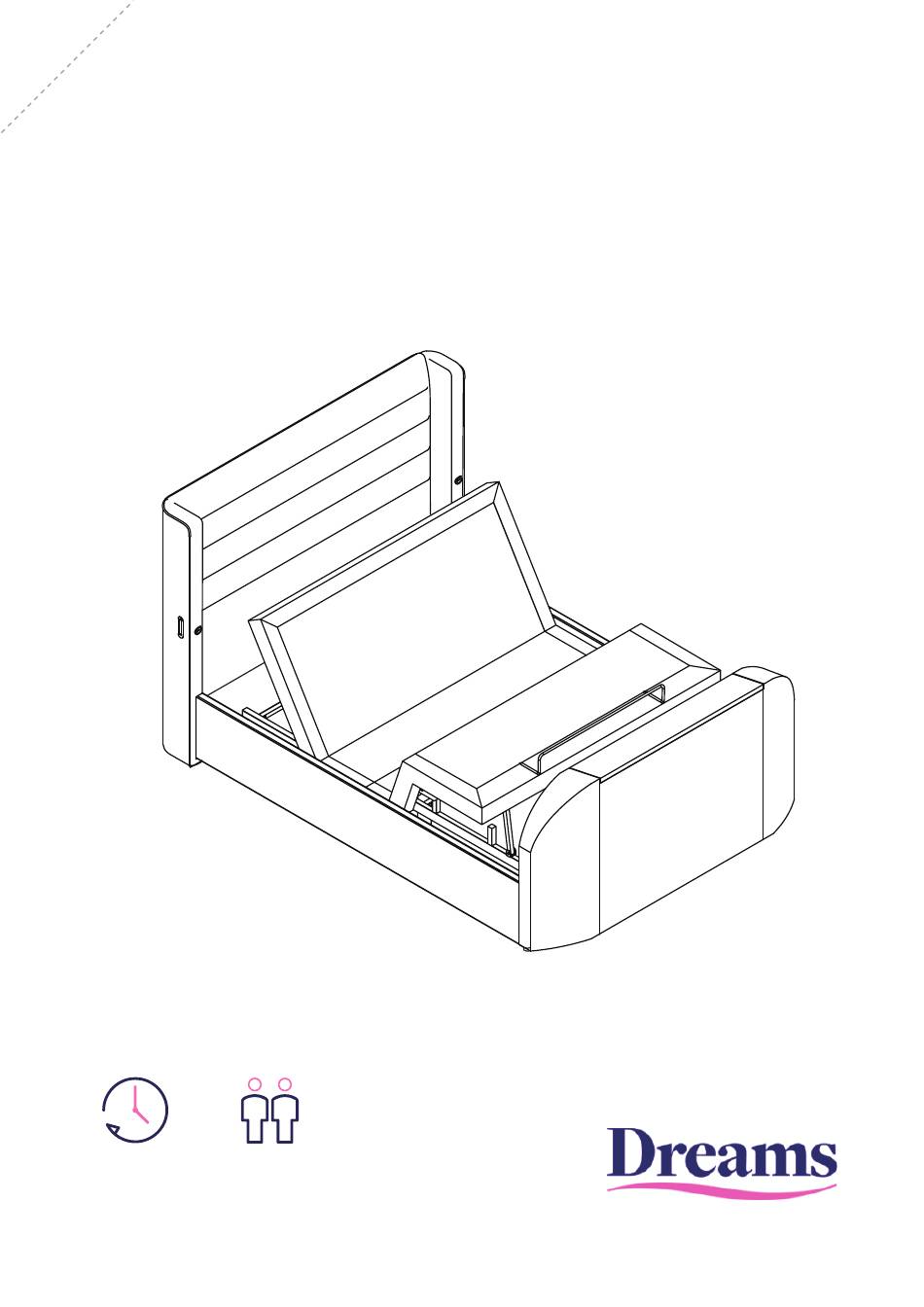

Thank you Hello, thanks for choosing to purchase your bed from Dreams - you're now on your way to your best ever night's sleep. Before you begin building your bed, please take a moment to read through the instructions and make sure that you've got all the relevant parts listed on the following pages.
Parts The bed you have purchased comes with a Sleepmotion 200i Lifestyle electric base. Once the base is built, place it in the location where it shall be used then please follow the steps in this Assembly Instruction to build your bed-frame around the base disregarding the assembly guide packed inside Pack 3.
Fittings Please check you have all the parts listed below with your product: Hardware needed for fitting wings to headboard and fitting side rails to head & foot boards Packed in the accessory box in footboard Pack 2 - hardware Pack (A) a x20 b x26 c x26...
Page 5
Fit the wings to the headboard. & Un-tie USB leads from bottom of the wings. Fit both wings, one at a time. Put first wing close to the headboard. iii) Unzip both access compartments. Pass the USB lead through the hole in the bottom of the headboard making sure it is not trapped.
Page 6
Connect the the two USBs to the ‘Y’ cable. Bolt the brackets (F, G & H) to the headboard & footboard as shown. Fit the brackets using x12 bolt sets (a, b & c) tightening them 90%. 10mm Drift Sleepmotion Lifestyle TV Bed - Assembly guide - Page 6...
Page 7
Assemble the bed frame around the bed base. Screw in the eight 6" (15cm) legs as shown. Position the bed base. Place the headboard in the location in which it shall be used and attach the right hand side rail using hardware from pack (A).
Page 8
Connect the mains power lead for electric base to your wall socket - for safety this must be an earthed power supply. Raise the head and foot ends of the bed base using the electric bed remote control. Position the footboard. LH Wing Stand the footboard in position aligning it with the end of the RH...
Page 9
Connect to the mains power socket. Connect the small plug of the mains power lead to the socket on footboard. Power supply Pass the 3 pin plug on the end of the for the Electric mains power lead (W) through the Bed Base hole in left side of the headboard routing to the outside through the...
Page 10
Note: For illustration purposes only, connections to the TV may vary. Before fitting the TV, push leads through each duct from the top choosing the best side to use depending on where the connection ports are on back of your TV. If optical socket is on RH side of TV, looking from the rear, the plug is in the correct position (see red circle below).
Page 11
Route the cables together as shown - make sure there are no ends left loose to get trapped or snagged. If the aerial port is on the left side of the television (looking from the rear) pass the aerial lead through the hole on the left side of the headboard and route to the outside through the corner of the left access flap zipper.
Page 12
Height of TV is normally pre-set - follow this guide if it needs to be changed. Measure the height of the TV. Add 5mm to it's height then adjust the column to suit. Max TV Height 573mm Loosen the two column adjustment bolts, slide column so the curved lid lifter is just above the TV and re-tighten the two bolts.
Page 13
IF HARDWARE IS SUPPLIED WITH THE TV, PLEASE USE IT IN PREFERENCE Fitting the television. When spacers are provided it is very important that these are fitted in the Check the hardware supplied with TV and if Vesa correct place, fit between TV & TV bolts and spacers are supplied please use these bracket, as in this sketch.
Page 14
Note: For illustration purposes only, connections to the TV may vary. TV Power Lead supplied with the TV and adhere clips to back of the TV PLUG IN - KEEP ALL CABLES TIGHT - USE CLIPS & TIES PROVIDED. HDMI Optical connection detail..
Page 15
Connect power to the television. This three pin socket is not continuously live so only use to connect the power lead supplied with the TV. Press the “DOWN” button to lower the TV lift Make sure everything is working properly then fit the left hand side rail. Prepare to fit the LH side rail to the brackets on the headboard and footboard.
Page 16
iv ) iii) Connect both LEDs Make sure the bed is squared up as shown. Check the bolts on the side rail are sitting down in the keyhole slots then tighten all x20 bolt sets 100%. 100% Fit the accessories and check the gaps. Hang your headphones.
Page 17
AUDIO OPERATION GUIDE TURN AMPLIFIER ON or OFF. DRIFT TV BED 1) Turn on the mains power to the TV Bed. 2.1 STEREO SYSTEM 2) Press the Remote Control (RC) ON button for 2 seconds to synchronise and prepare the system, system voice shall say 'Power On'.
Overall Dimensions (LWH mm) Small Double: 2260 x 1405 x 1 320 Double: 2260 x 1555 x 1320 King: 2360 x 1705 x 1320 Internal Dimensions (LWH mm) Small Double: 1930 x 1230 Double: 1930 x 1380 King: 2030 x 1530 Floor to top of base Top of base to...
Page 19
TV BED SAFETY INFORMATION GENERAL INFORMATION It is very important not to place any vessel containing liquids, e.g. drinks or vase of flowers, on top of the TV footboard which may accidentally spill and enter the TV compartment as this could cause damage to the TV and/or the TV lifting equipment. If this happens, please contact Customer Services - ring 0800 652 6750.
