IMPORTANT: BEFORE STARTING TO ASSEMBLE THE BED - PLEASE READ THE HELP GUIDE PAGE

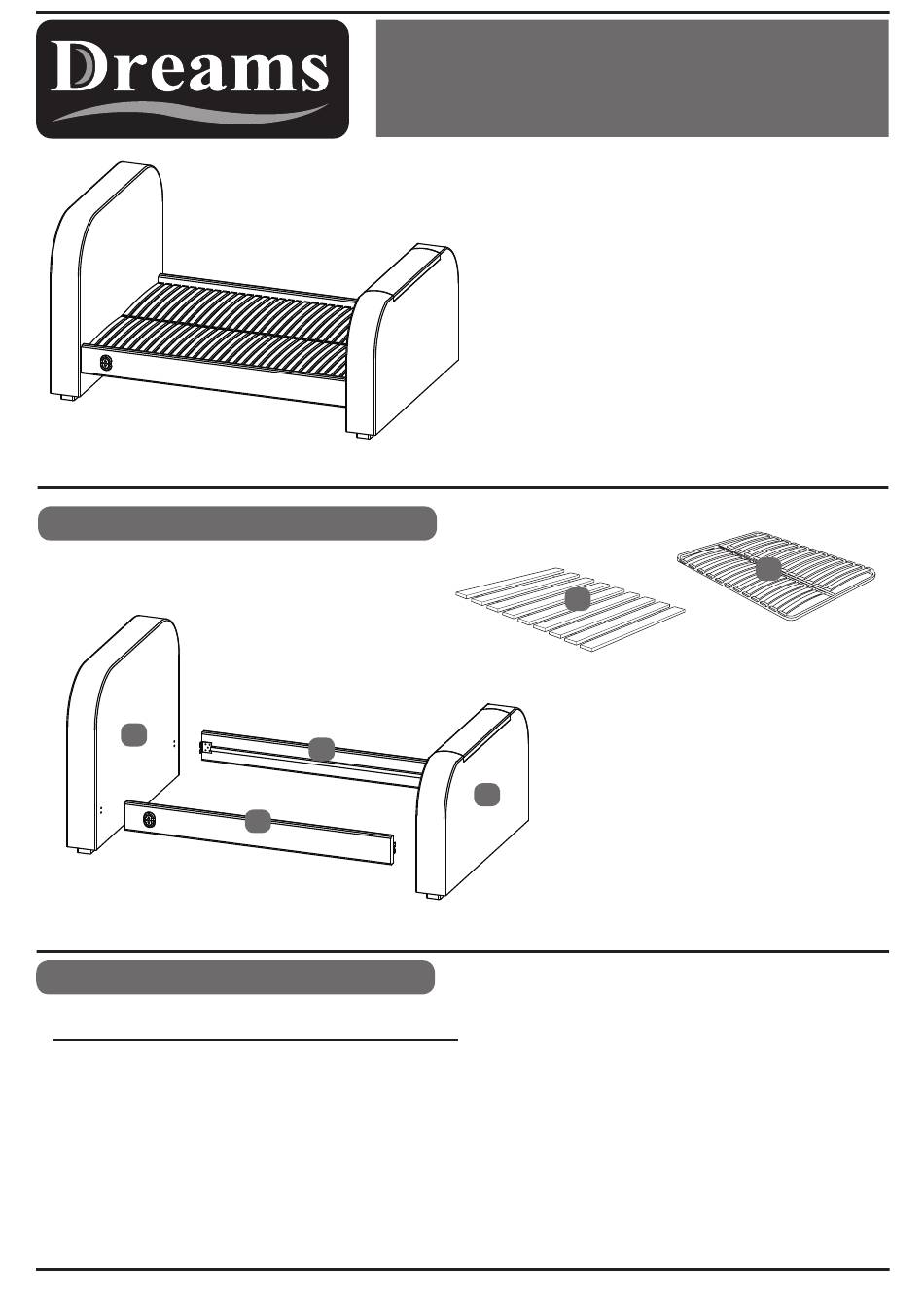

Parts Identification
1
Parts Checklist
Ref.
Description
1
Headboard
2
Footboard
3
Right Side Rail
4
Left Side Rail
5
Wooden Slats
6
Metal Sprung Slat System*
3
4
Qty
1
1
1
1
1 Set
1 Frame
Page
San Diego TV Bedstead
PLEASE READ this sheet prior to assembly to familiarise
yourself with the various stages of construction. Carefully
open the pack supplied and check the contents against the
parts and fittings check list.
Do not destroy any of the packaging until you are certain
that you have all the necessary parts for the assembly.
Please ensure that the packaging is disposed of in a
safe environmentally friendly way.
CAUTION: There are small components used in the
construction of this unit. These loose items should be kept
a way from young children whilst assembling your unit to
avoid the danger of choking hazards.
5
2
*Only supplied if upgraded sprung system chosen
1 of 6
6
14
Note:
Standard wooden slat frame (part 5)
Upgraded sprung slat frame (part 6)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DREAMS San Diego TV Bedstead
Summary of Contents for DREAMS San Diego TV Bedstead
- Page 1 San Diego TV Bedstead PLEASE READ this sheet prior to assembly to familiarise yourself with the various stages of construction. Carefully open the pack supplied and check the contents against the parts and fittings check list. Do not destroy any of the packaging until you are certain that you have all the necessary parts for the assembly.
- Page 2 Fittings Checklist Code Description Code Description Sleeve Nut (M6x16mm) Bolt (M8x30mm) Allen Key (4mm) Bolt (M6x40mm) Flat Washer (6mm) Spring Washer Screw (3x20mm) Flat Washer (8mm) TV Lift Switch (Battery - A23-12Volt) Allen Key (5mm) Note: The following fillings will be found in the box which contains the sprung slat frame, not with the bed frame assembly hardware pack.
- Page 3 Bed Assembly Stage 10mm Fit the bolts (A), spring washers (C), and flat washers (D) to the holes in the headboard (1) and footboard (2) as shown. Note: Do not fully locate the bolts, but leave 10mm protruding. Fit the side rail (3 & 4) to the headboard and footboard locating the brackets behind the flat washers. Once all four corners are located, fully tighten the bolts using the allen key (E).
- Page 4 Bed Assembly Stage BED SLAT FIXING Lay the set of slats (5) onto the slat support rails on the side rails. Align the first and last slat with the end of the rails, and secure in place using the bolts (B), washers (H) and sleeve nuts (F).
- Page 5 Help Guide We hope you will be very happy with your TV Bedstead but please read these points carefully; they will help you assemble the bed and media successfully: IMPORTANT: BEFORE FITTING THE MATTRESS… Please do the following 1) In the compartment of the footboard (with red label), open the lid and carefully remove the long accessory box and ALL transit material.
- Page 6 Help Guide TROUBLE - SHOOTING 1) If TV fails to work , check power connections and that TV is UP as power will be off when it is down. Check TV Guide for trouble-shooting help if necessary. 2) If your TV Lift does not operate, please check all power connections at the wall socket and into the base of the footboard.
