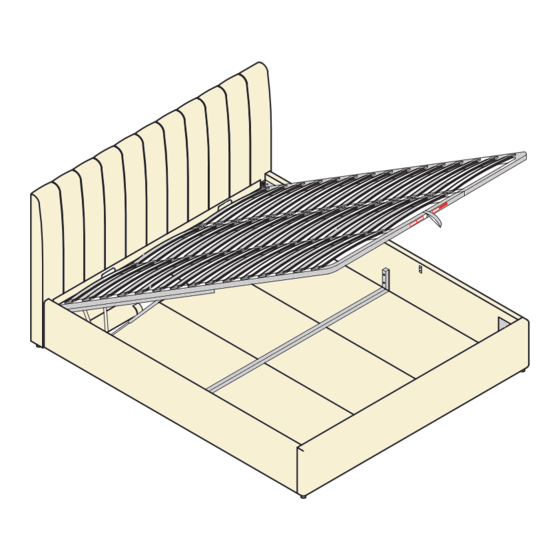

Mount Ottoman Bed
Double & King Size
Important - read this guide carefully and retain for future reference.
Ottoman Safety Warnings
•
You must ensure that the mattress is on the bed frame before operating the lift mechanism – Failure
to do so could result in injury.
•
Keep hands clear of the mechanism when opening or closing the ottoman.
•
Beware of entrapment – Never reach in through the mechanism to access the storage area.
•
Always ensure that the ottoman is FULLY opened before accessing the storage area.
•
Do not exceed the maximum weight as specified in the table below:
Bed
Mount
Don't lift without mattress
1.5 hour approx
Two person
assembly time
assembly
MK1 220620
Bed Size
Min Weight (kg) Max Weight (kg)
20
Double
20
King
Super King
20
Ensure mattress is on before lifting
Super King Size
58
58
58
