Summary of Contents for de Jong Duke Zia 1.000 Series

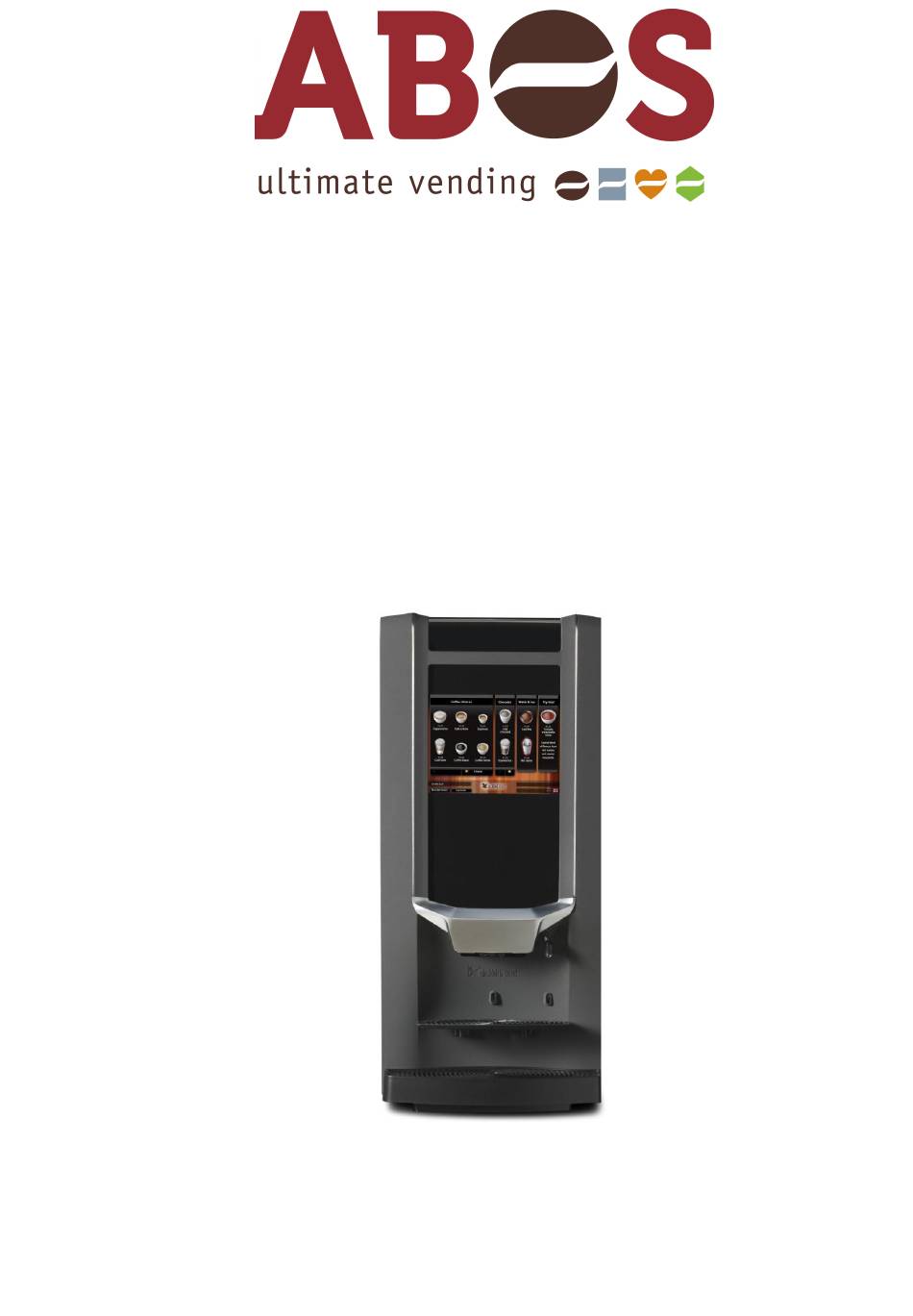

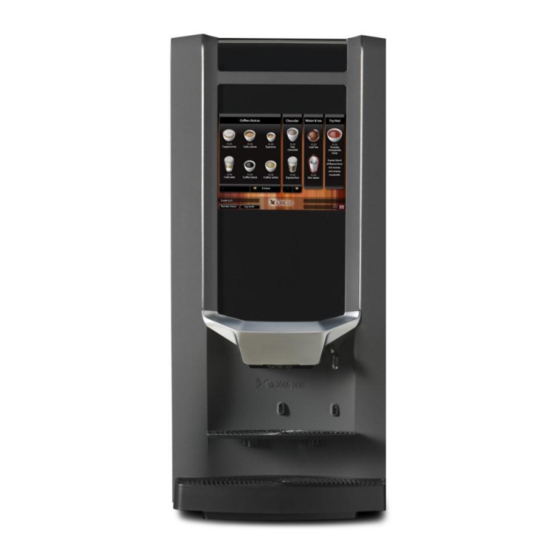

- Page 1 Coffee Machine Zia 1.000 series Instant User Manual User Manual EN Picture: Zia 1.000 series Filename: Zia-1000_9INB_UserManual_5DUINP20a_EN_v01-01.docx...
-
Page 2: Disclaimer Manufacturer
Zia 1.000 series Disclaimer Manufacturer: Although this user manual has been put together with the utmost care, J.M. de Jong Duke automatenfabriek b.v. accepts no liability for inaccuracies or omissions. No liability is accepted for the consequences arising from operation of the equipment in accordance with the information contained in these instructions. -
Page 3: The Machine Supplier/ Dealer Is
User Manual Zia 1.000 series The machine supplier/ dealer is: Company name: Address: Area code – City: Country: Telephone: Fax: Internet: e-mail: For service and support, always contact the dealer / supplier of the machine by using the telephone service number below. -
Page 4: Table Of Contents
User Manual Zia 1.000 series Index: Disclaimer Manufacturer: ..................2 Copyright: ......................2 Manufacturer: ......................2 The machine supplier/ dealer is: ................3 Preface: ........................ 3 Index: ........................4 Safety ......................5 Safety and Risk levels: .................. 5 Safety and Warnings ..................6 Standards and norms: ................... -
Page 5: Safety
User Manual Zia 1.000 series 1. Safety Safety and Risk levels: Four safety and risk levels are used in this manual. The risk levels and explanations are described below. To warn persons / readers about the possibility of Danger: serious or fatal injury to themselves or others. -
Page 6: Safety And Warnings
User Manual Zia 1.000 series Safety and Warnings The general safety warnings apply to the entire document. The risk level associated with the explanation below. Do not use water in or near the machine unless the instructions contain explicit directions to the contrary. -
Page 7: Standards And Norms
User Manual Zia 1.000 series Standards and norms: The machine is build according to CE norms The machine complies with the following standards: ● Machine standard: 89/392/EEG ● EMC standard: 89/336/EEG, The machine complies with the following norms: ● EN 292: safety of machines. -
Page 8: Description Of The Machine
User Manual Zia 1.000 series 2. Description of the machine: General: Hot drinks are dispensed from the machine Take care to avoid scalding yourself. If cups or jugs are not correctly placed The machine will spill hot liquid down the front. -
Page 9: Overview Of The Machine Interior
User Manual Zia 1.000 series Overview of the machine interior: Lid Cabinet Base cabinet Instant canisters Instant canisters Outlet tube(s) Outlet tube(s) Mixing bowls Mixing bowls Mixers Mains Power switch Outlet tubes Mixer bayonet Dispensing catch nozzles Drip tray Zia-1000_9INB_UserManual_5DUINP20a_EN_v01-01.docx... -
Page 10: Type Plate
User Manual Zia 1.000 series Type plate: The type plate is mounted on the inside of the machine, at the top left. The following data is mentioned on the type plate: ● Name of manufacturer ● Serial number ● Type/model specification ●... -
Page 11: Technical Specifications
User Manual Zia 1.000 series Technical specifications: Dimensions of the machine: Height: 31.2 Width: 14.5 Depth: 20.9 Weight (empty): 37 ~ 41 81.5 ~ 90.4 Electricity: Mains supply (Europe): V AC Frequency: 50 ~ 60 Max. capacity: Mains supply (North America):... -
Page 12: Measure Of Cup And Jug Heights
User Manual Zia 1.000 series Measure of cup and jug heights: Max cup diameter: 3.34 Measure A: Mounted default Max cup height: 4.33 Mounted low Max cup height: 4.92 Mounted high Max cup height: 3.74 Min height: Able to receive a volume of consumption Max Jug diameter: 5.31... -
Page 13: Before Use
User Manual Zia 1.000 series 3. Before use: Installation: Installation, transportation, and adjustment of the machine is specialized work. Only properly trained service personnel should carry this out. For instructions about transportation, unpacking, and installation of the machine, see the technical manual. -
Page 14: Operation
User Manual Zia 1.000 series 4. Operation: Operating the machine in free vend mode: Risk of burn injuries when taking out the HOT beverages. When the hot beverages come in contact with a person, this can lead to serious scalding injuries. -
Page 15: Jug Dispensing
User Manual Zia 1.000 series Jug dispensing. Risk of burn injuries when taking out the HOT beverages. When the hot beverage comes in contact with a person, this can lead to serious scalding injuries. If cups or jugs are not correctly placed. -
Page 16: Maintenance And Filling
User Manual Zia 1.000 series 5. Maintenance and filling: Daily maintenance: Failing to perform the daily maintenance negatively affects the quality of the products and can lead to malfunctioning of the machine. Open the door of the machine. Install the safety key (see paragraph: install safety key) Flush mixers: Place a jug underneath the nozzle to collect the hot water. -
Page 17: Weekly Maintenance
User Manual Zia 1.000 series Weekly maintenance: Failing to perform the weekly maintenance negatively affects the quality of the products and can lead to malfunctioning of the machine. Open the door of the machine Clean the mixing system: Remove the mixing system according to paragraph “Disassembling the mixing bowl”. -
Page 18: Monthly Maintenance
User Manual Zia 1.000 series Monthly maintenance: Failing to perform the monthly maintenance negatively affects the quality of the beverages and can lead to malfunctioning of the machine. Apart from the weekly maintenance, the following tasks must be performed monthly to ensure the machine operates correctly and optimal beverage quality is maintained. -
Page 19: Fill Canisters
User Manual Zia 1.000 series Fill canisters: Do not fill the canisters further than necessary for one or two days. This will keep the products fresh. Make sure that the canisters remain filled with a layer of at least 4-cm of product. - Page 20 User Manual Zia 1.000 series Fill canisters: 5. Fill the canister with the product indicated on the canister. Place the lid back on the canister. 6. Place the canister back in the machine. Make sure the drive at the back of the canister fits well on the motor drive.
-
Page 21: Place Safety Key
User Manual Zia 1.000 series Place safety key: The machine is now powered up with open door. Warning: Parts in the machine can move automatically and hot water can flow out. Open the door and locate the safety key. Insert the safety key and turn a quarter turn clockwise or counter clockwise. -
Page 22: Disassembling The Mixing System
User Manual Zia 1.000 series Disassembling the mixing system: 1. Open the door. 2. Remove the mixers using the following procedure. 3. Remove the outlet pipes from the mixers. 4. Turn the bayonet catch counterclockwise (approx. 10º). Remove the mixer house. - Page 23 User Manual Zia 1.000 series Disassembling the mixing system: 6. Pull the mixer parts towards you. 7. Pull the whipper blade towards you and off the shaft. 8. Turn the base plate counterclockwise and pull it towards you. 9. Ready Picture may be different based on model.
-
Page 24: Assembling The Mixing System
User Manual Zia 1.000 series Assembling the mixing system: Procedure to assemble the mixer. Install the base plate. The arrow on the whipper blade must on the flat side Caution: of the mixer shaft. Install the whipper blade. Be sure that the arrow is at the flat side of the shaft. - Page 25 User Manual Zia 1.000 series Assembling the mixing system: Turn the bayonet catch clockwise until it is locked. Install the outlet pipes on the mixers. Close the door. Check correct functionality by taking test beverages. Picture may be different based on model.
-
Page 26: Failure And Error Messages
User Manual Zia 1.000 series Failure and Error messages: Always check whether an error message is shown on the display. If no error message is shown and the machine does not work correctly, you may find the possible cause and solution in the following table. -
Page 27: Document Control
User Manual Zia 1.000 series Water level to low Consult the service engineer Shortcut temperature sensor Consult the service engineer Temperature sensor disconnected Consult the service engineer Temperature boiler too high Consult the service engineer Water level too low Consult the service engineer... -
Page 28: Notes
User Manual Zia 1.000 series Notes: Zia-1000_9INB_UserManual_5DUINP20a_EN_v01-01.docx Page 28 of 29... - Page 29 User Manual Zia 1.000 series Zia-1000_9INB_UserManual_5DUINP20a_EN_v01-01.docx Page 29 of 29...
