Video inserter
CI-RL4-PCM60
Compatible with
Porsche
vehicles
with PCM 4.1, PCM 5.0 and PCM 6.0 infotainment
and 12.3inch monitor
Video-inserter for front- and rear-view camera
and two more video inputs
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for rear-view camera
1 CVBS Input for front camera
2 CVBS Video-inputs for after-market Video sources (e.g. USB-Player, DVB-T Tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10 seconds
Activatable parking guide lines for rear-view camera (not available for all vehicles)
Activatable PDC (not available for all vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC compatible
Version 11.05.2023
HW: CAM(V100)/UP(V30) right
CI-RL4-PCM60
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Car-Interface.com CI-RL4-PCM60
Summary of Contents for Car-Interface.com CI-RL4-PCM60

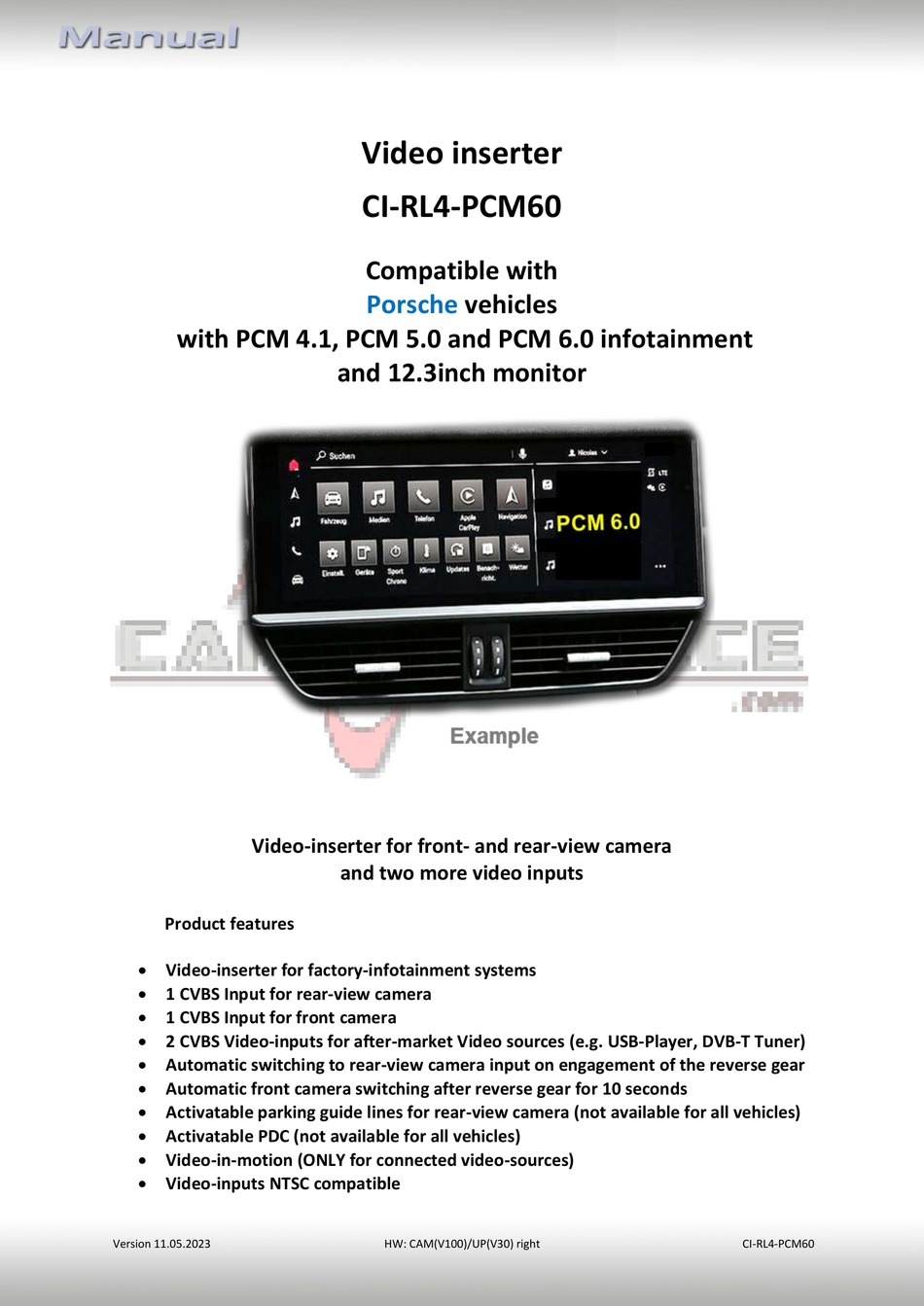

- Page 1 Video inserter CI-RL4-PCM60 Compatible with Porsche vehicles with PCM 4.1, PCM 5.0 and PCM 6.0 infotainment and 12.3inch monitor Video-inserter for front- and rear-view camera and two more video inputs Product features Video-inserter for factory-infotainment systems 1 CVBS Input for rear-view camera ...
-
Page 2: Table Of Contents
Case 1: Interface receives the reverse gear signal 2.5.3.2. Case 2Interface does not receive the reverse gear signal 2.6. Connection - video-interface and external keypad 2.7. Picture settings 3. Interface operation 4. Specifications 5. FAQ – Trouble Shooting-Interface functions Version 11.05.2023 HW: CAM(V100)/UP(V30) right CI-RL4-PCM60... -
Page 3: Prior To Installation
Due to changes in the production of the vehicle manufacturer there’s always a possibility of incompatibility. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 11.05.2023 HW: CAM(V100)/UP(V30) right CI-RL4-PCM60... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
A manually front camera switching is possible by external keypad. Guidelines and PDC Displayed guidelines and optical PDC are not available in all vehicles. Video input signal Only NTSC video sources compatible Version 11.05.2023 HW: CAM(V100)/UP(V30) right CI-RL4-PCM60... -
Page 5: Boxes And Connectors - Video Interface
Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and converts them for the video interface. Version 11.05.2023 HW: CAM(V100)/UP(V30) right CI-RL4-PCM60... -
Page 6: Settings - 8 Dip Switches (Black)
*The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. A correct display of the PDC is only possible if it is by factory displayed on the RIGHT side of the monitor. See the following chapters for detailed information. Version 11.05.2023 HW: CAM(V100)/UP(V30) right CI-RL4-PCM60... -
Page 7: Activating The Front Camera (Dip 1)
If there is no change of picture visible after having changed the setting, retry and disconnect the 6pin plug at the interface box between every change of the dip setting. Version 11.05.2023 HW: CAM(V100)/UP(V30) right CI-RL4-PCM60... -
Page 8: Activation Of The Factory Pdc Display (Dip 8)
Dip position up is ON and position down is OFF. Fahrzeug/Navigation Dip 1 Dip 2 PCM 4.1 (Harman) PCM 5.0 (Alpine) PCM 6.0 (Aptiv/Delphi) After each Dip-switch-change a power-reset of the video interface has to be performed! Version 11.05.2023 HW: CAM(V100)/UP(V30) right CI-RL4-PCM60... -
Page 9: Installation
Before the final installation, we recommend a test-run of the interface. Due to changes in the production of the vehicle manufacturer, there’s always the possibility of incompatibility. 2.1. Place of connection The interface is supposed to be installed at a suitable location behind the vehicle`s head- unit. Version 11.05.2023 HW: CAM(V100)/UP(V30) right CI-RL4-PCM60... -
Page 10: Connection Schema
2.2. Connection schema Version 11.05.2023 HW: CAM(V100)/UP(V30) right CI-RL4-PCM60... -
Page 11: Connection - Factory Head Unit
HSD connector of the head unit Note: Depending on the installation conditions, the enclosed picture signal cable may also be mounted upside down, concerning it’s HSD connectors . However, it‘s connection must only be made at the head unit! Version 11.05.2023 HW: CAM(V100)/UP(V30) right CI-RL4-PCM60... -
Page 12: Vehicles With Pcm
HSD connector of the head unit. Note: Depending on the installation conditions, the enclosed picture signal cable may also be mounted upside down, concerning it’s HSD connectors . However, it‘s connection must only be made at the head unit! Version 11.05.2023 HW: CAM(V100)/UP(V30) right CI-RL4-PCM60... - Page 13 HSD connector of the head unit. Note: Depending on the installation conditions, the enclosed picture signal cable may also be installed upside down, concerning it’s HSD connectors . However, its’ connection must only be made at the head unit! Version 11.05.2023 HW: CAM(V100)/UP(V30) right CI-RL4-PCM60...
-
Page 14: Connection - Quadlock - Can
Clip in the grey coloured female 12pin connector of the PNP harness in the previously become free position of the female Quadlock connector. After that, finish the Quadlock reconnection at the rear-side of the head-unit. Version 11.05.2023 HW: CAM(V100)/UP(V30) right CI-RL4-PCM60... - Page 15 Clip in the grey coloured female 12pin connector of the PNP harness in the previously become free position of the female Quadlock connector. After that, finish the Quadlock reconnection at the rear-side of the head-unit. Version 11.05.2023 HW: CAM(V100)/UP(V30) right CI-RL4-PCM60...
- Page 16 Clip in the grey coloured female 12pin connector of the PNP harness in the previously become free position of the female Quadlock connector. After that, finish the Quadlock reconnection at the rear-side of the head-unit. Version 11.05.2023 HW: CAM(V100)/UP(V30) right CI-RL4-PCM60...
-
Page 17: Connection - Power
2.3.3. Connection - Power Connect the single yellow wire of the 10pin power/CAN cable to +12V permanent and stabile power supply. Connect the single black wire of the 10pin power/CAN cable to the vehicle’s negative ground. Version 11.05.2023 HW: CAM(V100)/UP(V30) right CI-RL4-PCM60... -
Page 18: Analogue Power Supply
If, after connecting the PNP harness, no interface LED lightens up while the ignition is turned on, the purple coloured wire Manual ACC of the 12pin interface cable has to be connected additionately to S-contact terminal 86s +12V (e.g. glove compartment illumination). Version 11.05.2023 HW: CAM(V100)/UP(V30) right CI-RL4-PCM60... -
Page 19: Power Supply Output For Front Cam
+12V (max. 3A) when reverse gear is engaged incl. 10 seconds delay after reverse gear is disengaged and +12V by manual switching to front camera by keypad (short press) Dip 1 OFF +12V ACC Version 11.05.2023 HW: CAM(V100)/UP(V30) right CI-RL4-PCM60... -
Page 20: Connection - Video-Sources
Connect the front camera’s video RCA connector to the 12pin interface cable’s female RCA connector „Front V3“. Connect the video RCA of the AV source 1 and 2 to the 12pin interface cable’s female RCA connector “Left (V1)” ”Right (V2)”. Version 11.05.2023 HW: CAM(V100)/UP(V30) right CI-RL4-PCM60... -
Page 21: Audio Insertion
(short press) from any image mode. The power supply output gives +12V then, as well (if Dip 1 is set to ON and the front camera input is selected). Attention: A long press of the external keypad push button will switch the interface to the next source. Version 11.05.2023 HW: CAM(V100)/UP(V30) right CI-RL4-PCM60... -
Page 22: After-Market Rear-View Camera
“Camera IN” while the reverse gear is engaged. Additionally, the +12V (max. 3A) power supply for the rear-view camera can be taken from the green wire of the 12pin interface cable. Version 11.05.2023 HW: CAM(V100)/UP(V30) right CI-RL4-PCM60... -
Page 23: Case 2Interface Does Not Receive The Reverse Gear Signal
Connect the output connector (87) of the relay to the rear-view camera’s power- cable, like you did it to the green “Reverse-IN” cable before. Connect stabile and permanent +12V to the relay’s input connector (30). Version 11.05.2023 HW: CAM(V100)/UP(V30) right CI-RL4-PCM60... -
Page 24: Connection - Video-Interface And External Keypad
Connect the female 4pin connector of the keypad to the male 4pin connector of the 12pin interface cable. Note: Even if switching through several video sources by the keypad mightn’t be required, the invisible connection and availability is strongly recommended. Version 11.05.2023 HW: CAM(V100)/UP(V30) right CI-RL4-PCM60... -
Page 25: Picture Settings
Note: The OSD menu is only shown when a working video source is connected to the selected video-input of the interface. The following settings are available: Contrast Brightness Saturation Position H (horizontal picture position) Position V (vertical picture position) H-SIZE (horizontal picture size) V-SIZE (vertical picture size) Version 11.05.2023 HW: CAM(V100)/UP(V30) right CI-RL4-PCM60... -
Page 26: Interface Operation
7V - 25V Stand-by power drain Power 340mA @12V Video input 0.7V - 1V Video input formats NTSC Temperature range -40°C to +85°C Dimensions video-box 117 x 25 x 103 mm (W x H x D) Version 11.05.2023 HW: CAM(V100)/UP(V30) right CI-RL4-PCM60... -
Page 27: Faq - Trouble Shooting-Interface Functions
Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 11.05.2023 HW: CAM(V100)/UP(V30) right CI-RL4-PCM60... - Page 28 Interface switches compatibility to vehicle is ends. If problem still occurs, additionally cut the white video-sources by itself. limited. wire of 6pin to 8pin cable and isolate both ends. 10R-05 0068 Made in China Version 11.05.2023 HW: CAM(V100)/UP(V30) right CI-RL4-PCM60...
