Video inserter
CI-RL4-UCON10
Compatible with
Fiat
vehicles with Uconnect 5 infotainment
with 10inch or 10.25inch ultrawide monitor
Jeep
vehicles with Uconnect 5 infotainment with 10.1inch monitor
Video-inserter for front- and rear-view camera
and two more video inputs
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for rear-view camera
1 CVBS Input for front camera
2 CVBS Video-inputs for after-market Video sources (e.g. USB-Player, DVB-T Tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10 seconds
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC and PAL compatible
Version 24.01.2023
HW: CAM(V100) / (V30 + V30.3)
CI-RL4-UCON10
Advertisement
Table of Contents
Related Manuals for Car-Interface.com CI-RL4-UCON10
Summary of Contents for Car-Interface.com CI-RL4-UCON10

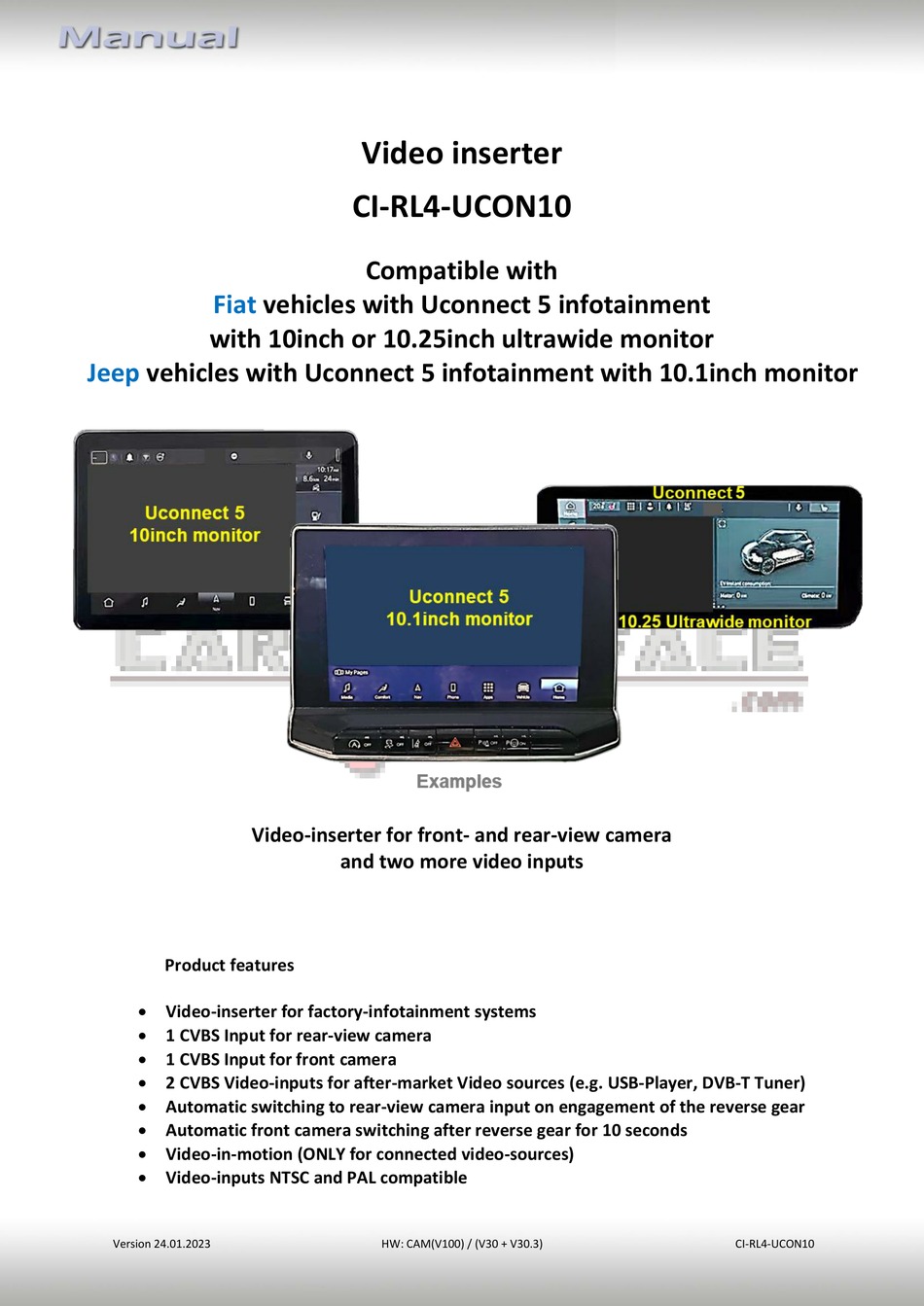

- Page 1 Video inserter CI-RL4-UCON10 Compatible with Fiat vehicles with Uconnect 5 infotainment with 10inch or 10.25inch ultrawide monitor Jeep vehicles with Uconnect 5 infotainment with 10.1inch monitor Video-inserter for front- and rear-view camera and two more video inputs Product features Video-inserter for factory-infotainment systems ...
-
Page 2: Table Of Contents
Case 1: Interface receives the reverse gear signal 2.5.3.2. Case 2Interface does not receive the reverse gear signal 2.6. Connection - video-interface and external keypad 2.7. Picture settings 3. Interface operation 4. Specifications 5. FAQ – Trouble Shooting-Interface functions Version 24.01.2023 HW: CAM(V100) / (V30) CI-RL4-UCON10... -
Page 3: Prior To Installation
Due to changes in the production of the vehicle manufacturer there’s always a possibility of incompatibility. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 24.01.2023 HW: CAM(V100) / (V30) CI-RL4-UCON10... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
After market front camera The front camera will automatically be switched 10 seconds after disengaging the reverse gear. A manually front camera switching is possible by external keypad. Version 24.01.2023 HW: CAM(V100) / (V30) CI-RL4-UCON10... -
Page 5: Boxes And Connectors - Video Interface
Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and converts them for the video interface. Version 24.01.2023 HW: CAM(V100) / (V30) CI-RL4-UCON10... -
Page 6: Settings - 8 Dip Switches (Black)
*The front camera will automatically be switched for 10, 15 or 20 seconds after disengaging the reverse gear (according to the menu adjustments). See the following chapters for detailed information. After each Dip-switch-change a power-reset of the Video interface has to be performed! Version 24.01.2023 HW: CAM(V100) / (V30) CI-RL4-UCON10... -
Page 7: Activating The Front Camera (Dip 1)
If there is no change of picture visible after trying all options, retry and disconnect the 6pin connector at the interface box between every change of the dip setting. Version 24.01.2023 HW: CAM(V100) / (V30) CI-RL4-UCON10... -
Page 8: Settings - 2 Dip Switches (Selection Head-Unit - Black)
Before the final installation, we recommend a test-run of the interface. Due to changes in the production of the vehicle manufacturer, there’s always the possibility of incompatibility. 2.1. Place of installation The interface is supposed to be installed at a suitable location behind the vehicle`s head- unit. Version 24.01.2023 HW: CAM(V100) / (V30) CI-RL4-UCON10... -
Page 9: Connection Schema
2.2. Connection schema Version 24.01.2023 HW: CAM(V100) / (V30) CI-RL4-UCON10... -
Page 10: Connection - Factory Head Unit
Note: Depending on the installation conditions, the enclosed picture signal cable may also be mounted upside down, concerning it’s HSD connectors . However, it‘s connection must only be made at the head unit! Version 24.01.2023 HW: CAM(V100) / (V30) CI-RL4-UCON10... - Page 11 10-pin power/CAN cable. Connect the two opposing female green and blue 12- and 32pin sockets of the 10-pin Power/CAN cable to the previously become free male 12- and 32pin connectors of the head unit. Version 24.01.2023 HW: CAM(V100) / (V30) CI-RL4-UCON10...
-
Page 12: Analogue Power Supply
If, after connecting the PNP harness, no interface LED lightens up while the ignition is turned on, the purple coloured wire Manual ACC of the 12pin interface cable has to be connected additionately to S-contact terminal 86s +12V (e.g. glove compartment illumination). Version 24.01.2023 HW: CAM(V100) / (V30) CI-RL4-UCON10... -
Page 13: Power Supply Output For Front Cam
+12V (max. 3A) when reverse gear is engaged incl. 10, 15 or 20 seconds delay* after reverse gear is disengaged and +12V by manual switching to front camera by keypad (short press) Dip 1 OFF +12V ACC Version 24.01.2023 HW: CAM(V100) / (V30) CI-RL4-UCON10... -
Page 14: Connection - Video-Sources
Connect the front camera’s video RCA connector to the 12pin interface cable’s female RCA connector „Front V3“. Connect the video RCA of the AV source 1 and 2 to the 12pin interface cable’s female RCA connector “Left (V1)” ”Right (V2)”. Version 24.01.2023 HW: CAM(V100) / (V30) CI-RL4-UCON10... -
Page 15: Audio Insertion
(short press) from any image mode. The power supply output gives +12V then, as well (if Dip 1 is set to ON and the front camera input is selected). Attention: A long press of the external keypad push button will switch the interface to the next source. Version 24.01.2023 HW: CAM(V100) / (V30) CI-RL4-UCON10... -
Page 16: After-Market Rear-View Camera
“Camera IN” while the reverse gear is engaged. Additionally, the +12V (max. 3A) power supply for the rear-view camera can be taken from the green wire of the 12pin interface cable. Version 24.01.2023 HW: CAM(V100) / (V30) CI-RL4-UCON10... -
Page 17: Case 2Interface Does Not Receive The Reverse Gear Signal
Connect the output connector (87) of the relay to the rear-view camera’s power- cable, like you did it to the green “Reverse-IN” cable before. Connect stabile and permanent +12V to the relay’s input connector (30). Version 24.01.2023 HW: CAM(V100) / (V30) CI-RL4-UCON10... -
Page 18: Connection - Video-Interface And External Keypad
Connect the female 4pin connector of the keypad to the male 4pin connector of the 12pin interface cable. Note: Even if switching through several video sources by the keypad mightn’t be required, the invisible connection and availability is strongly recommended. Version 24.01.2023 HW: CAM(V100) / (V30) CI-RL4-UCON10... -
Page 19: Picture Settings
Note: The OSD menu is only shown when a working video source is connected to the selected video-input of the interface. The following settings are available: Contrast Brightness Saturation Position H = horizontal picture position Position V = vertical picture position Version 24.01.2023 HW: CAM(V100) / (V30) CI-RL4-UCON10... -
Page 20: Interface Operation
Stand-by power drain Power 270mA @12V Video input 0.7V - 1V Video input formats NTSC/PAL Temperature range -40°C to +85°C Dimensions video-box 117 x 26 x 103 mm (W x H x D) Version 24.01.2023 HW: CAM(V100) / (V30) CI-RL4-UCON10... -
Page 21: Faq - Trouble Shooting-Interface Functions
Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 24.01.2023 HW: CAM(V100) / (V30) CI-RL4-UCON10... - Page 22 Interface switches compatibility to vehicle is ends. If problem still occurs, additionally cut the white video-sources by itself. limited. wire of 6pin to 8pin cable and isolate both ends. 10R-05 0068 Made in China Version 24.01.2023 HW: CAM(V100) / (V30) CI-RL4-UCON10...
