Video inserter
RL4-IOR
Compatible with Opel vehicles with
Multimedia Radio with 7inch monitor
Multimedia Navi with 7inch monitor
Video-inserter for front- and rear-view camera
and two additional video inputs
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for rear-view camera
1 CVBS Input for front camera
2 CVBS Video-inputs for after-market Video sources (e.g. USB-Player, DVB-T2
Tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10 seconds
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC compatible
Version 12.04.2023
HW:CAM(V100)/(V20+V41)
RL4-IOR
Advertisement
Table of Contents
Related Manuals for Car-Interface.com RL4-IOR
Summary of Contents for Car-Interface.com RL4-IOR

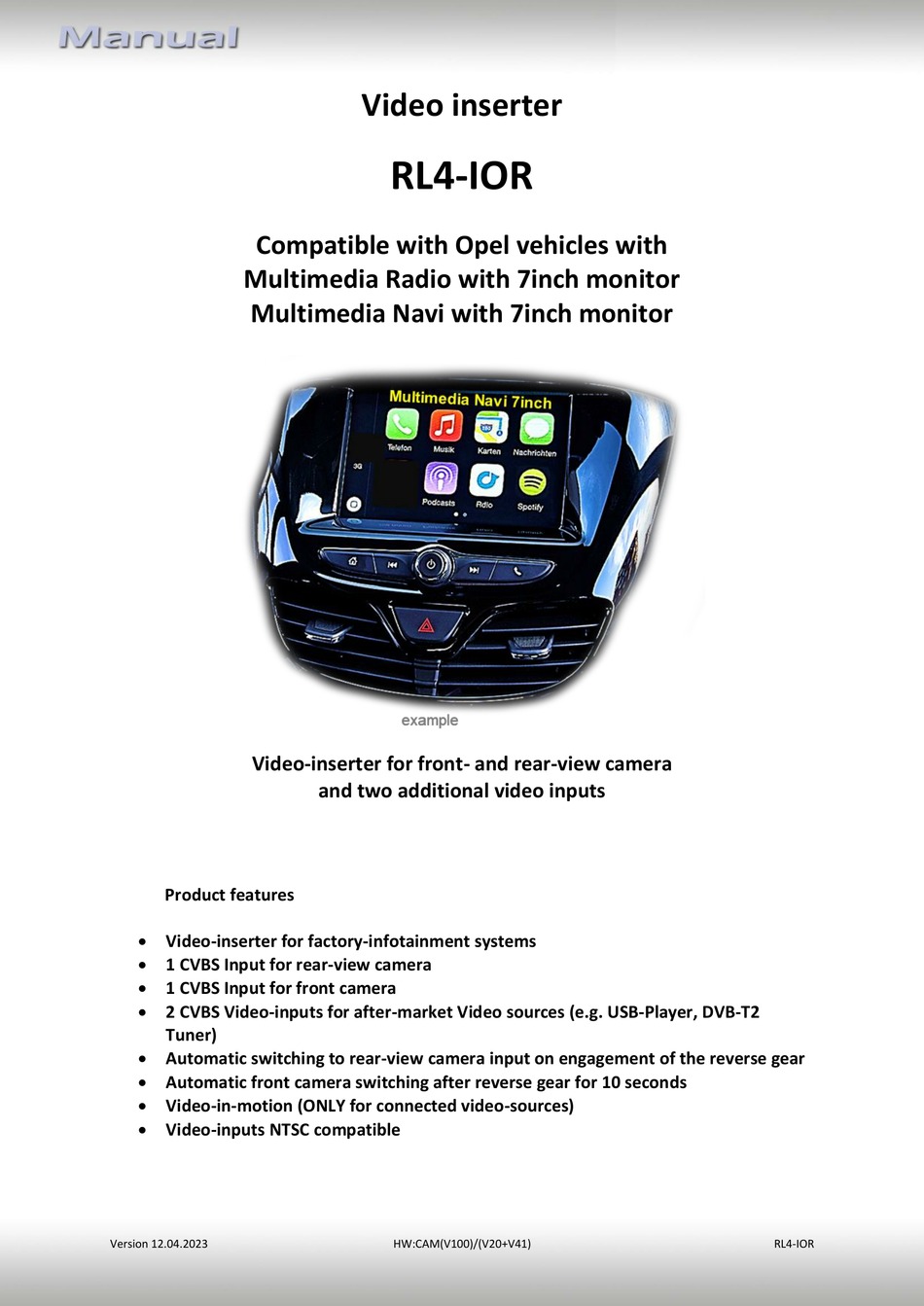

- Page 1 Video inserter RL4-IOR Compatible with Opel vehicles with Multimedia Radio with 7inch monitor Multimedia Navi with 7inch monitor Video-inserter for front- and rear-view camera and two additional video inputs Product features Video-inserter for factory-infotainment systems 1 CVBS Input for rear-view camera ...
-
Page 2: Table Of Contents
Case 2: Interface does not receive the reverse gear signal 2.8. Connection - video-interface and external keypad 2.9. Picture settings 3. Interface operation 3.1. By factory touch display 3.2. By keypad 4. Specifications 5. FAQ – Trouble Shooting-Interface functions 6. Technical support Version 12.04.2023 HW:CAM(V100)/(V20+V41) RL4-IOR... -
Page 3: Prior To Installation
Due to changes in the production of the vehicle manufacturer there’s always a possibility of incompatibility. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 12.04.2023 HW:CAM(V100)/(V20+V41) RL4-IOR... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
The video-interface converts the connected after-market sources video signals into a LVDS signal which is inserted in the factory monitor using separate trigger options. Further it reads the vehicle’s digital signals out of the vehicle’s CAN-BUS and converts them for the video interface. Version 12.04.2023 HW:CAM(V100)/(V20+V41) RL4-IOR... -
Page 5: Settings Of The 8 Dip Switches (Black)
ON *The front camera will automatically be switched for 10 seconds after disengaging the reverse gear. See the following chapters for detailed information. After each Dip-switch-change a power-reset of the video interface has to be performed! Version 12.04.2023 HW:CAM(V100)/(V20+V41) RL4-IOR... -
Page 6: Activating The Front Camera (Dip 1)
OFF. Dip position down is ON and position up is OFF. Vehicle/Navigation Dip 1 Dip 2 Dip 3 Dip 4 All vehicles After each Dip-switch-change a power-reset of the video interface has to be performed! Version 12.04.2023 HW:CAM(V100)/(V20+V41) RL4-IOR... -
Page 7: Installation
The interface needs a permanent 12V source! 2.1. Place of installation The interface is supposed to be installed at a suitable location behind the factory head-unit. Version 12.04.2023 HW:CAM(V100)/(V20+V41) RL4-IOR... -
Page 8: Connection Schema
2.2. Connection schema Version 12.04.2023 HW:CAM(V100)/(V20+V41) RL4-IOR... -
Page 9: Connection - Picture Signal Cable
Connect the picture signal cable’s female white coloured HSD connector to the waterblue coloured male HSD connector of the video interface. Note: The colours of the head unit’s and factory harness’s male and female Mini USB connectors may vary. Version 12.04.2023 HW:CAM(V100)/(V20+V41) RL4-IOR... -
Page 10: Connection - 10Pin Pnp Cable
28pin connectors of the 10pin PNP cable. Connect the 10pin PNP cable’s opposite female grey coloured 28pin connectors both to the head unit’s previously become free male 28pin connectors. Version 12.04.2023 HW:CAM(V100)/(V20+V41) RL4-IOR... -
Page 11: Connection Of The Yellow Line In Case Of Faulty Touch Function Or Non-Off-Switching Of The Video Interface
Cut the yellow wire of the PNP harness near the 10pin connector and connect it to the vehicle’s +12V S-contact terminal 86s (e.g. cigarette lighter) Insulate the other side of the yellow cable, as it is powerded! Attention: The fuse, installed in the yellow cable, has to be connected in every case! Version 12.04.2023 HW:CAM(V100)/(V20+V41) RL4-IOR... -
Page 12: Analog Power Supply For The Video Interface
Connect the 12pin interface cable’s white coloured female 12pin connector to the 12pin connector of the video interface. Connect the purple coloured wire Manual ACC of the 12pin interface cable to +12V ACC power supply Version 12.04.2023 HW:CAM(V100)/(V20+V41) RL4-IOR... -
Page 13: Power Supply Output
+12V (max. 3A) when reverse gear is engaged incl. 10 seconds delay after reverse gear is disengaged and +12V by manual switching to front camera by keypad (short press) Dip 1 OFF +12V (max. 3A) simulated ACC (while CAN has activity) Version 12.04.2023 HW:CAM(V100)/(V20+V41) RL4-IOR... -
Page 14: Connection - Video-Sources
Connect the front camera’s video RCA connector to the 12pin interface cable’s female RCA connector „Front V3“. Connect the video RCA of the AV source 1 and 2 to the 12pin interface cable’s female RCA connector “Left (V1)” ”Right (V2)”. Version 12.04.2023 HW:CAM(V100)/(V20+V41) RL4-IOR... -
Page 15: Audio Insertion
Note: In addition, a manual switch-over to the front camera input is possible via keypad (short press) from any image mode. The power supply output gives +12V then, too (if Dip 1 is set to ON and the front camera input is selected). Version 12.04.2023 HW:CAM(V100)/(V20+V41) RL4-IOR... -
Page 16: After-Market Rear-View Camera
“V4 Reverse” while the reverse gear is engaged. Additionally, the +12V (max. 3A) power supply for the rear-view camera can be taken from the green wire of the 12pin interface cable. Version 12.04.2023 HW:CAM(V100)/(V20+V41) RL4-IOR... -
Page 17: Case 2: Interface Does Not Receive The Reverse Gear Signal
(86) of the relay. Connect the output connector (87) of the relay to the rear-view camera’s power- cable, like you did it to the green “Reverse-IN” cable before. Connect stabile and permanent +12V to the relay’s input connector (30). Version 12.04.2023 HW:CAM(V100)/(V20+V41) RL4-IOR... -
Page 18: Connection - Video-Interface And External Keypad
Connect the female 4pin connector of the keypad to the male 4pin connector of the 12pin interface cable. Note: Even if switching through several video sources by the keypad mightn’t be required, the invisible connection and availability is strongly recommended. Version 12.04.2023 HW:CAM(V100)/(V20+V41) RL4-IOR... -
Page 19: Picture Settings
Note: The OSD menu is only shown when a working video source is connected to the selected video-input of the interface. The following settings are available: Contrast Brightness Saturation Position H (horizontal) Position V (vertical) IR-AV1/2 Guide L/R no function UI-CNTRL no function Size H/V (picture size horizontal/vertical) Version 12.04.2023 HW:CAM(V100)/(V20+V41) RL4-IOR... -
Page 20: Interface Operation
Each long touch will switch to the next enabled input. Inputs which are not enabled will be skipped. Switchover by touch buttons isn’t possible in all vehicles. In some vehicles the external keypad has to be used. Version 12.04.2023 HW:CAM(V100)/(V20+V41) RL4-IOR... -
Page 21: Specifications
7V - 25V Stand-by power drain 12mA Power 250mA @12V Video input 0.7V - 1V Video input formats NTSC Temperature range -40°C to +85°C Dimensions video-box 118 x 23 x 105 mm (W x H x D) Version 12.04.2023 HW:CAM(V100)/(V20+V41) RL4-IOR... -
Page 22: Faq - Trouble Shooting-Interface Functions
Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 12.04.2023 HW:CAM(V100)/(V20+V41) RL4-IOR... -
Page 23: Technical Support
Please note that direct technical support is only available for products purchased directly from NavLinkz GmbH. For products bought from other sources, contact your vendor for technical support. NavLinkz GmbH distribution/tech dealer-support Heidberghof 2 D-47495 Rheinberg +49 2843 17595 00 Email mail@navlinkz.de 10R-05 0068 Made in China Version 12.04.2023 HW:CAM(V100)/(V20+V41) RL4-IOR...
