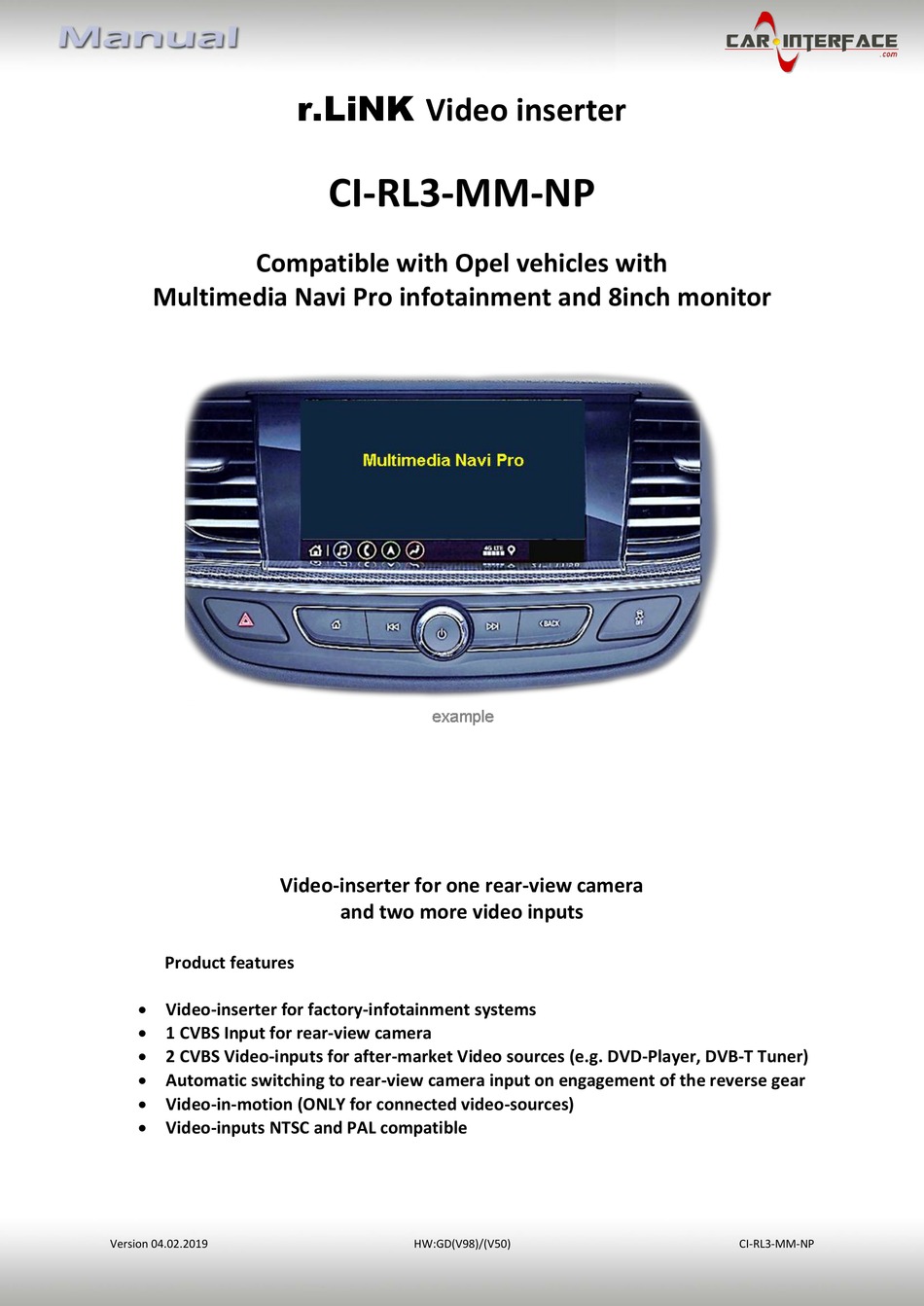

r.LiNK Video inserter
CI-RL3-MM-NP
Compatible with Opel vehicles with
Multimedia Navi Pro infotainment and 8inch monitor
Video-inserter for one rear-view camera
and two more video inputs
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for rear-view camera
2 CVBS Video-inputs for after-market Video sources (e.g. DVD-Player, DVB-T Tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC and PAL compatible
Version 04.02.2019
HW:GD(V98)/(V50)
CI-RL3-MM-NP
Advertisement
Table of Contents
Related Manuals for Car-Interface.com CI-RL3-MM-NP
Summary of Contents for Car-Interface.com CI-RL3-MM-NP
- Page 1 Video inserter CI-RL3-MM-NP Compatible with Opel vehicles with Multimedia Navi Pro infotainment and 8inch monitor Video-inserter for one rear-view camera and two more video inputs Product features Video-inserter for factory-infotainment systems 1 CVBS Input for rear-view camera ...
-
Page 2: Table Of Contents
Case 2: Interface does not receive the reverse gear signal 2.8. Connection - video-interface and external keypad 2.9. Picture settings 3. Interface operation 3.1. By factory infotainment button 3.2. By keypad 4. Specifications 5. FAQ – Trouble Shooting-Interface functions Version 04.02.2019 HW:GD(V98)/(V50) CI-RL3-MM-NP... -
Page 3: Prior To Installation
Due to changes in the production of the vehicle manufacturer there’s always a possibility of incompatibility. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 04.02.2019 HW:GD(V98)/(V50) CI-RL3-MM-NP... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
The video-interface converts the connected after-market sources video signals into a LVDS signal which is inserted in the factory monitor using separate trigger options. Further it reads the vehicle’s digital signals out of the vehicle’s GM-Lan and converts them for the video interface. Version 04.02.2019 HW:GD(V98)/(V50) CI-RL3-MM-NP... -
Page 5: Settings Of The 8 Dip Switches (Black)
All 4 dip-switches of the video interface have no function for normal use and have to be set to OFF. Dip position down is ON and position up is OFF. Vehicle/Navigation Dip 1 Dip 2 Dip 3 Dip 4 All vehicles Version 04.02.2019 HW:GD(V98)/(V50) CI-RL3-MM-NP... -
Page 6: Installation
The interface needs a permanent 12V source! 2.1. Place of installation The interface is supposed to be installed at a suitable location behind the factory head-unit. Version 04.02.2019 HW:GD(V98)/(V50) CI-RL3-MM-NP... -
Page 7: Connection Schema
2.2. Connection schema Version 04.02.2019 HW:GD(V98)/(V50) CI-RL3-MM-NP... -
Page 8: Connection - Picture Signal Cable
Connect the picture signal cable’s female waterblue coloured HSD+2 connector to the bordeaux coloured male HSD+2 connector of the video interface. Note: The colours of the head unit’s and factory harness’s male and female 12pin connectors may vary. Version 04.02.2019 HW:GD(V98)/(V50) CI-RL3-MM-NP... -
Page 9: Connection - 10Pin Pnp Cable
Note: The GM-Lan communication doesn’t succeed in all vehicles. If, after connecting the 10pin PNP cable, no interface LED lightens up while the ignition is turned on, refer to chapter “Analogue power supply for the video interface”. Version 04.02.2019 HW:GD(V98)/(V50) CI-RL3-MM-NP... -
Page 10: Analog Power Supply For The Video Interface
Analog power supply for the video interface Connect the 12pin interface cable’s white coloured female 12pin connector to the 12pin connector of the video interface. Connect the purple coloured wire Manual ACC of the 12pin interface cable to +12V ACC power supply Version 04.02.2019 HW:GD(V98)/(V50) CI-RL3-MM-NP... -
Page 11: Power Supply Output
2.6. Power supply output The red power supply output ACC-out Max 3A can be used to power up an external video-source (max 3A). Version 04.02.2019 HW:GD(V98)/(V50) CI-RL3-MM-NP... -
Page 12: Connection - Video-Sources
Connect the video RCA of the rear-view camera to the 12pin interface cable’s female RCA connector „V4 Reverse“. Connect the video RCA of the AV source 1 and 2 to the 12pin interface cable’s female RCA connector „V1 Left“ „V1 Right“. Version 04.02.2019 HW:GD(V98)/(V50) CI-RL3-MM-NP... -
Page 13: Audio Insertion
“V4 Reverse” while the reverse gear is engaged. Additionally, the +12V (max. 3A) power supply for the rear-view camera can be taken from the green wire of the 12pin interface cable. Version 04.02.2019 HW:GD(V98)/(V50) CI-RL3-MM-NP... -
Page 14: Case 2: Interface Does Not Receive The Reverse Gear Signal
(86) of the relay. Connect the output connector (87) of the relay to the rear-view camera’s power- cable, like you did it to the green “Reverse-IN” cable before. Connect stabile and permanent +12V to the relay’s input connector (30). Version 04.02.2019 HW:GD(V98)/(V50) CI-RL3-MM-NP... -
Page 15: Connection - Video-Interface And External Keypad
Connect the female 4pin connector of the keypad to the male 4pin connector of the 12pin interface cable. Note: Even if switching through several video sources by the keypad mightn’t be required, the invisible connection and availability is strongly recommended. Version 04.02.2019 HW:GD(V98)/(V50) CI-RL3-MM-NP... -
Page 16: Picture Settings
Note: The OSD menu is only shown when a working video source is connected to the selected video-input of the interface. The following settings are available: Contrast Brightness Saturation Position H (horizontal) Position V (vertical) IR-AV1/2 Guide L/R no function UI-CNTRL no function Size H/V (picture size horizontal/vertical) Version 04.02.2019 HW:GD(V98)/(V50) CI-RL3-MM-NP... -
Page 17: Interface Operation
Each press will switch to the next enabled input. Inputs which are not enabled will be skipped. Switchover by vehicle buttons isn’t possible in all vehicles. In some vehicles the external keypad has to be used. Version 04.02.2019 HW:GD(V98)/(V50) CI-RL3-MM-NP... -
Page 18: By Keypad
7V - 25V Stand-by power drain 2.5mA Power 240mA @12V Video input 0.7V - 1V Video input formats NTSC/PAL Temperature range -40°C to +85°C Dimensions video-box 119 x 25 x 104 mm (W x H x D) Version 04.02.2019 HW:GD(V98)/(V50) CI-RL3-MM-NP... -
Page 19: Faq - Trouble Shooting-Interface Functions
Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 04.02.2019 HW:GD(V98)/(V50) CI-RL3-MM-NP... - Page 20 Cut the grey wire of 6pin to 8pin and isolate both Interface switches compatibility to vehicle is ends. If problem still occurs, additionally cut the white video-sources by itself. limited. wire of 6pin to 8pin cable and isolate both ends. 10R-03 5384 Made in China Version 04.02.2019 HW:GD(V98)/(V50) CI-RL3-MM-NP...
