- Page 1 Updated date: 2015.11.16 CI-VL6-ZAB Specification & Installation Compatible with ZAB navigation Bentley and Phaeton (3D)
-
Page 2: Table Of Contents
Contents 1. Before installation 1.1 Main specification 1.2 System diagram 1.3 Components 1.4 Exterior 2. Setup 2.1 DIP switch 2.2 Remote controller 2.3 Power cable wiring diagram 3. Installation 3.1 Installation diagram 3.2 Cautions on installation 3.3 Installation 4. Troubleshooting... -
Page 3: Main Specification
1.1 Main Specification 1. Input Spec. (MULTI VIDEO INTERFACE) -. 2 x CVBS Input (External video source). -. 1 x CVBS (REAR CAMERA) Input (Rear camera source) -. 1 x Analog RGB Input (Car commander original monitor output) -. 1 x Analog RGB Input (Navigation System output)- OPTION 2. -
Page 4: System Diagram
1.2 System Diagram Remote Control Switch for source toggle & REAR SENSE Navigation Input (Analog RGB) DISPLAYCAR Installation OEM LCD CVBS 1 CVBS 2 VIDEO CIRCUIT CVBS VIDEO MUX (Rear Camera) POWER CIRCUIT CAR SCREEN INPUT CVBS HEADREST (CAR MAIN BOARD) MONITOR DIP S/W Power Input... -
Page 5: Components
1.3 Components SEL cable * 1ea RGB NAVI cable * 1ea (HSELCA0001) (HNAVIC0002) GROUND cable * 1ea (HGROUN0001) Sub-board * 1ea (QCPASS0068) REMOTE CONTROL * 1ea (REMOTE0001) FFC cable * 1ea (FFCABL0001) ORANGE cable * 1ea (HNAVIC0003) POWER cable * 1ea MODE cable * 1ea IR cable * 1ea (HPOWER0001) -
Page 6: Exterior

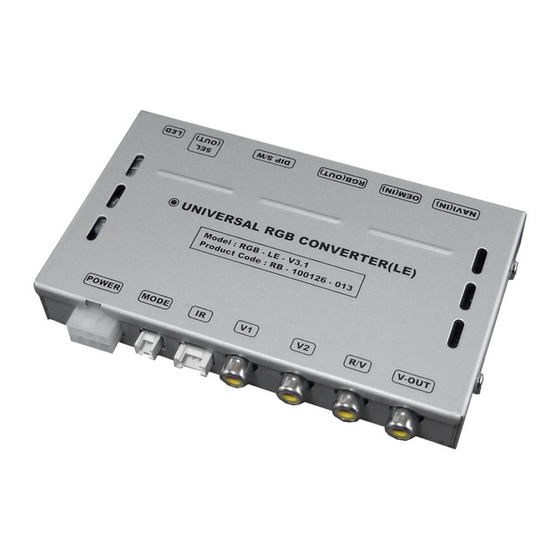

1.4 Exterior ⑬ ⑫ ⑪ ⑩ ⑨ ⑧ Dimension Horizontal length 129mm Vertical length 75mm Height 21mm ⑬ ⑫ ⑪ ⑩ ⑨ ⑧ ① POWER connector ② MODE connector for external button ③ IR-sensor connector ④ CVBS input V1 ⑤ CVBS input V2 ⑥... -
Page 7: Dip Switch
2.1 DIP switch #PIN Function DIP S/W selection ON : Deactivated RGB INPUT OFF: Activated ON : Deactivated CVBS1 INPUT OFF: Activated ON : Deactivated CVBS2 INPUT OFF: Activated SET OFF ON : Skipping OEM picture OEM picture OFF: OEM activated (normal use) ON : Non-Interlace INTERLACE OFF: Interlace... -
Page 8: Remote Controller
2.2 Remote controller Function POWER & PIP No function MENU No function Making a selection ▲ Brightness higher ▼ Brightness lower ◀ Color lower ▶ Color higher SIZE : 85 * 40 * 8 (mm) -
Page 9: Power Cable Wiring Diagram
2.3 Power cable wiring diagram ⑤ ④ ⑥ FILTER & FUSE BOX ② ① ③ ① GND (black) ② N.C. ③ FM antenna ④ N.C. ⑤ ACC in +12V(red) Blue ⑥ R-gear in +12V(gray) Orange Gray Black FM antenna Blue N.C. -
Page 10: Installation
Cautions on installation Ignition key should be taken off before starting installation, interface power connection must be the last step in installation. Power cable should be separated when connecting interface. Should be no any electronic devices or magnetic pole around installation place. All steps of installation should be done by well-trained specialist. -
Page 11: Cautions On Installation
Installation diagram MONITOR ※ Please make sure that Offered the installation should be cable carefully conducted to R A N avoid from the damage A 1 V of a monitor by Y G A s N N N C / . ESD(Electrostatic B G R C D C w C board... - Page 12 3.3 Soldering point for switching by OEM button ◎Solder the Orange wire on Mode cable to the Head Unit as shown right. * Soldering position: Fifth Point from right * Original button : NAVI (Put the orange wire into the sixth of RGB cable)
-
Page 13: Troubleshooting
Troubleshooting Q. I can not switch A/V sources. A. Check IR or Ground cable connection. Check LED lamps in the interface, if it is not on, check power cable. Q. All I got on the screen is black. A. Check second LED lamp of the interface is on, if not, check A/V sources connected are working well. (Second lamp indicates AV sources connected works well.) Check interface connection has been done well.
