- Page 1 CI-CARPLAY-NAC INSTRUCTION MANUAL CARPLAY/ANDROID AUTO INTEGRATION FOR PEUGEOT/CITROEN/OPEL NAC SYSTEMS Model No. CI-CARPLAY-NAC MCU Ver. 190512 CP-SW Ver. C7.5 Manual Ver. Date May 27, 2019...
-
Page 2: Table Of Contents
CONTENT Compatibility ....................4 Features ...................... 5 Package Components ................... 6 Connection Diagram ..................7 DIP Setting ....................8 Operation Instruction .................. 9 How To Switch From Original To Add On Interface ........9 How To Delivering Audio To OEM Radio ........... 9 Add On Module UI ................. - Page 3 WARNING In order to protect the driving safety and avoid break the traffic law; please DO NOT operate the interface while driving. The reversing surveillance function just is used in reversing assistance. Please check the entire surroundings while reversing.
-
Page 4: Compatibility
COMPATIBILITY Make Models Years Original system 208, 308, 2008, Peugeot 3008, 4008, 5008 NAC system 2017- Citroën C3, C4, C6 Opel Crossland Navi 5.0 IntelliLink... -
Page 5: Features
FEATURES Integrated 3 in 1 module supports Apple CarPlay, Android Auto, and screen mirroring functions Support USB HD video and lossless music playback (APE, WAV, FLAC, MP3, WMA, etc.) Offers 2 video in for front/rear view camera and 1 AV in for external AV device like... -
Page 6: Package Components

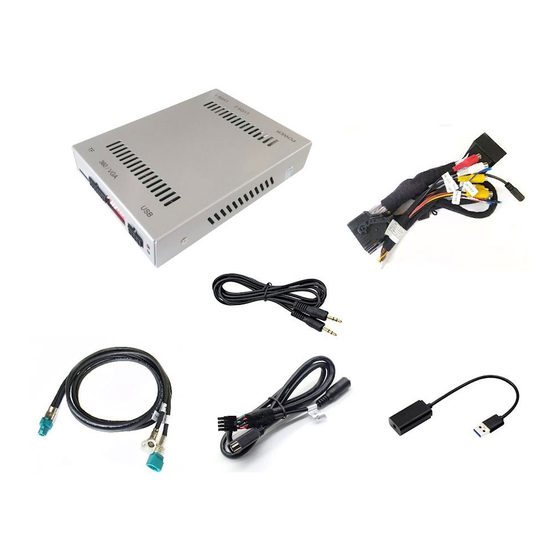

PACKAGE COMPONENTS Main Unit Quadlock Power Cable LVDS Cable USB/MIC Cable AUX-USB Adapter Optional Components: External Microphone (Designed for car without factory 3.5mm AUX Cable microphone) -
Page 7: Connection Diagram
CONNECTION DIAGRAM Connect external MIC Connect phone/USB OEM screen Provided female LVDS connects to OEM male LVDS cable from HU OEM head unit POWER LVDS 2 Provided 4pin LVDS cable OEM quadlock connector Supply power for external AV device... -
Page 8: Dip Setting
DIP SETTING "LIST" and "PHONE" in button "LIST" and "PHONE" in buttons on steering wheel on steering wheel Disable 360 panoramic Enable 360 panoramic CVBS Display front view camera for 10S automatically after shifted from “R” Disable front view camera... -
Page 9: Operation Instruction
www.car-interface.com... -
Page 10: Add On Module Ui
ADD ON MODULE UI Default: TC Hidden Apple Android External Touch Ver. of "Back" CarPlay Auto AV in Android Auto Button Back to Screen Mirroring Multimedia Version Version... -
Page 11: Apple Carplay
APPLE CARPLAY NOTE! Please disconnect iPhone's bluetooth before using Apple CarPlay. Back to add on main menu Steering wheel control: Move cursor Accept calling / Hang up Click to activate Siri... -
Page 12: Android Auto
ANDROID AUTO Steering wheel control is same as CarPlay mode. NOTE! Make sure smartphone connect to original car stereo Bluetooth (tick CALL AUDIO, uncheck MEDIA AUDIO) for phone call audio delivering when using Android Auto. -
Page 13: Screen Mirroring
SCREEN MIRRORING Connect Android smartphone/iPhone with USB cable, and then select “MirrorLink” for screen mirroring. NOTE! Please always trust or allow when pop up notification. Enable “USB Debugging” on an Android device Android device must connect to car stereo BT for all audio delivering... - Page 14 . c ar - i n t e r f a c e . c om Copyright © Car-Interface.com. All rights reserved .
