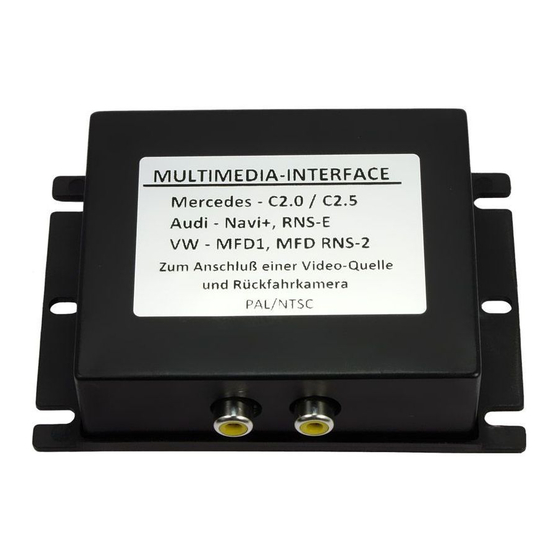

C1-MFD1
This interface enables the connection of an external video
device (e.g. DVD Player, DVB-T Tuner) to display-based Audi
and VW navigation systems.
Options to adjust contrast, brightness and/or colour saturation
are provided. The interface allows controlling the connected
video source(s) using the navigation system controls.
The following navigation systems are supported:
Audi Navi Plus RNS-D and VW MFD1
Supported video systems: PAL / NTSC
ACC +12V (max. 500mA)
+12V rear-view camera (max. 1A)
Ground rear-view camera
Switch to rear-view camera (+12V = switching on)
