Video inserter
CI-RL4-SC15
Compatible with Volvo vehicles with
Sensus Connect infotainment
and 8.7inch touch-monitor
Video-inserter for rear-view camera
and two more video inputs
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for rear-view camera
1 CVBS Input for front camera
2 CVBS Video-inputs for after-market Video sources (e.g. USB-Player, DVB-T Tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10 seconds
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC compatible
Version 11.01.2023
HW:CAM (V100)/(V23)
CI-RL4-SC15
Advertisement
Table of Contents
Related Manuals for Car-Interface.com CI-RL4-SC15
Summary of Contents for Car-Interface.com CI-RL4-SC15

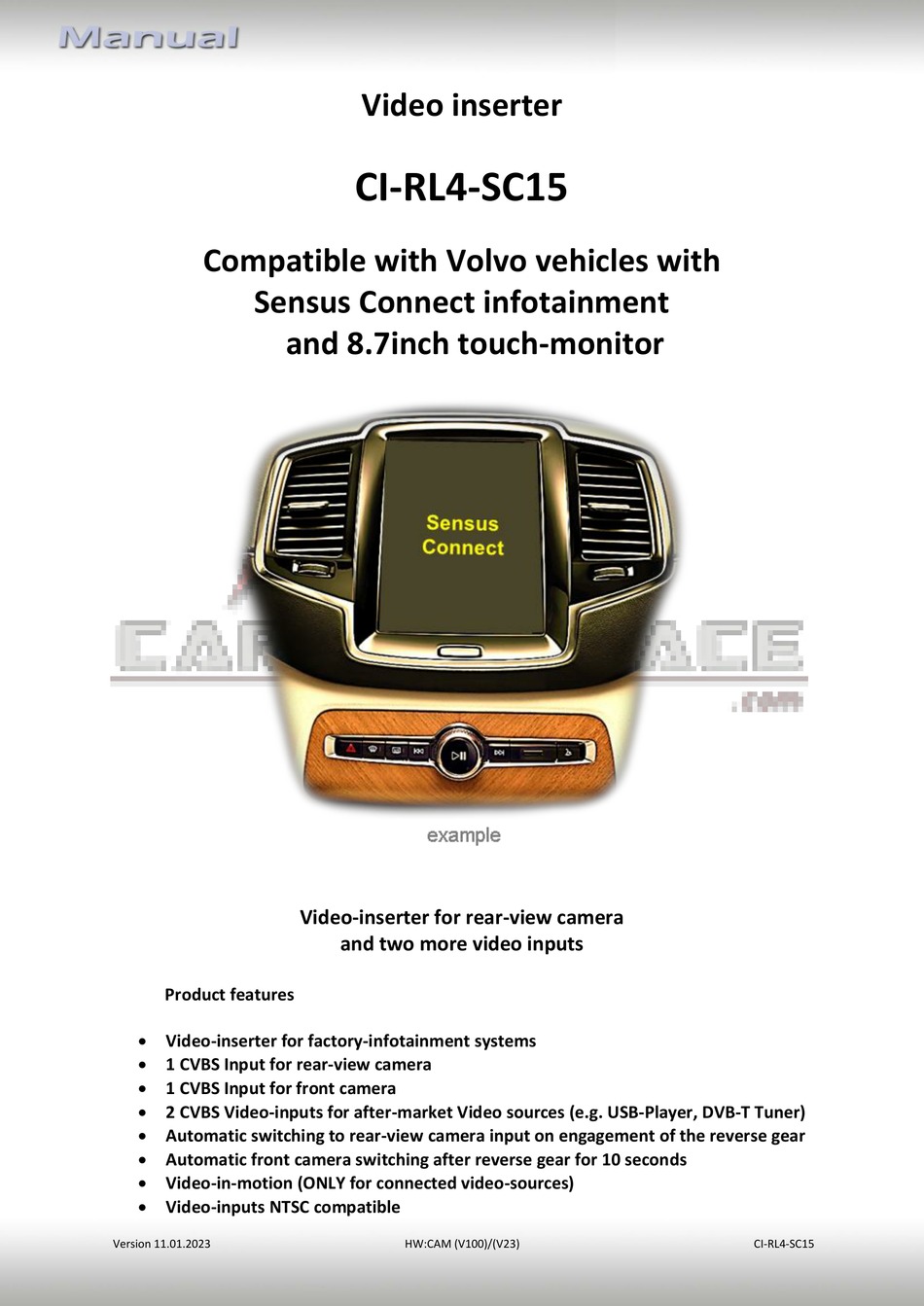

- Page 1 Video inserter CI-RL4-SC15 Compatible with Volvo vehicles with Sensus Connect infotainment and 8.7inch touch-monitor Video-inserter for rear-view camera and two more video inputs Product features Video-inserter for factory-infotainment systems 1 CVBS Input for rear-view camera 1 CVBS Input for front camera ...
-
Page 2: Table Of Contents
Case 2: Interface does not receive the reverse gear signal 2.8. Connection - video-interface and external keypad 2.9. Picture settings 3. Interface operation 3.1. By factory infotainment button 3.2. By external keypad 4. Specifications 5. FAQ – Trouble Shooting-Interface functions Version 11.01.2023 HW:CAM (V100)/(V23) CI-RL4-SC15... -
Page 3: Prior To Installation
Due to changes in the production of the vehicle manufacturer there’s always a possibility of incompatibility. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 11.01.2023 HW:CAM (V100)/(V23) CI-RL4-SC15... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
The video-interface converts the connected after-market sources video signals into a LVDS signal which is inserted in the factory monitor using separate trigger options. Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and converts them for the video interface. Version 11.01.2023 HW:CAM (V100)/(V23) CI-RL4-SC15... -
Page 5: Settings Of The 8 Dip Switches (Black)
If set to ON, the interface switches to its rear-view camera input while the reverse gear is engaged. Note: Dips 4, 6, 7 und 8 are out of function and have to be set to OFF! Version 11.01.2023 HW:CAM (V100)/(V23) CI-RL4-SC15... -
Page 6: Settings Of The 4 Dip Switches (Can Function - Red)
Before the final installation, we recommend a test-run of the interface. Due to changes in the production of the vehicle manufacturer, there’s always the possibility of incompatibility. 2.1. Place of installation The interface is supposed to be installed at a suitable location behind the factory monitor. Version 11.01.2023 HW:CAM (V100)/(V23) CI-RL4-SC15... -
Page 7: Connection Schema
2.2. Connection schema Version 11.01.2023 HW:CAM (V100)/(V23) CI-RL4-SC15... -
Page 8: Connection - Picture Signal Cable
Connect the opposite female waterblue coloured HSD+2 connector of the picture signal cable to the waterblue coloured male HSD+2 connector of the video interface. Note: The colours of the HSD connector of head unit and factory harness may vary. Version 11.01.2023 HW:CAM (V100)/(V23) CI-RL4-SC15... -
Page 9: Connection - 10Pin Power / Can Cable
Connect the single brown wire of the 10pin Power / CAN Cable to vehicle’s negative ground. Connect the single red wire of the 10pin power/CAN cable to +12V ACC power supply. Version 11.01.2023 HW:CAM (V100)/(V23) CI-RL4-SC15... -
Page 10: Analog Power Supply For The Video Interface
If the communication between the CAN box and the vehicle’s CAN bus does not succeed (not all vehicles are compatible), the analogue connection is required. Connect the red wire ACC-OUT and the purple coloured wire Manual ACC of the 12pin interface cable to +12V ACC power supply. Version 11.01.2023 HW:CAM (V100)/(V23) CI-RL4-SC15... -
Page 11: Power Supply Output
+12V (max. 3A) when reverse gear is engaged plus 10 seconds delay after reverse gear is disengaged and +12V when manually switched to front camera by keypad (short press) Dip 1 OFF +12V permanent (max. 3A) ACC Version 11.01.2023 HW:CAM (V100)/(V23) CI-RL4-SC15... -
Page 12: Connection - Video-Sources
Connect the front camera’s video RCA connector to the 12pin interface cable’s female RCA connector „Front V3“. Connect the video RCA of the AV source 1 and 2 to the 12pin interface cable’s female RCA connector “Left (V1)” ”Right (V2)”. Version 11.01.2023 HW:CAM (V100)/(V23) CI-RL4-SC15... -
Page 13: Audio Insertion
(short press) from any image mode. The power supply output gives +12V then, as well (if Dip 1 is set to ON and the front camera input is selected). Attention: A long press of the external keypad push button will switch the interface to the next source. Version 11.01.2023 HW:CAM (V100)/(V23) CI-RL4-SC15... -
Page 14: After-Market Rear-View Camera
The 12 V power supply for the rear-view camera (max 3A) has to be taken from the 12pin interface cabl’s green wire “Reverse-OUT” to avoid an unnecessary, permanent power supply to the camera electronic. Both green cables “Reverse IN” “Reverse OUT” have to remain connected. Version 11.01.2023 HW:CAM (V100)/(V23) CI-RL4-SC15... -
Page 15: Case 2: Interface Does Not Receive The Reverse Gear Signal
Connect the output connector (87) of the relay to the rear-view camera’s power- cable, like you did it to the green “Reverse-IN” cable before. Connect stabile and permanent +12V to the relay’s input connector (30). Version 11.01.2023 HW:CAM (V100)/(V23) CI-RL4-SC15... -
Page 16: Connection - Video-Interface And External Keypad
Connect the female 4pin connector of the keypad to the male 4pin connector of the 12pin interface cable. Note: Even if switching through several video sources by the keypad mightn’t be required, the invisible connection and availability is strongly recommended. Version 11.01.2023 HW:CAM (V100)/(V23) CI-RL4-SC15... -
Page 17: Picture Settings
Note: The OSD menu is only shown when a working video source is connected to the selected video-input of the interface. Contrast Brightness Saturation Position H horizontal picture position) Position V vertical picture position) Guide-Pos no function H-SIZE horizontal picture size V-SIZE vertical picture size Version 11.01.2023 HW:CAM (V100)/(V23) CI-RL4-SC15... -
Page 18: Interface Operation
Each press will switch to the next enabled input. Inputs which are not enabled will be skipped. Switchover by vehicle buttons isn’t possible in all vehicles. In some vehicles the external keypad has to be used. Version 11.01.2023 HW:CAM (V100)/(V23) CI-RL4-SC15... -
Page 19: Specifications
7V - 25V Stand-by power drain 10mA Power 250mA @12V Video input 0.7V - 1V Video input formats NTSC Temperature range -40°C to +85°C Dimensions video-box 118 x 25 x 104 mm (W x H x D) Version 11.01.2023 HW:CAM (V100)/(V23) CI-RL4-SC15... -
Page 20: Faq - Trouble Shooting-Interface Functions
Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 11.01.2023 HW:CAM (V100)/(V23) CI-RL4-SC15... - Page 21 Cut the grey wire of 6pin to 8pin and isolate both Interface switches compatibility to vehicle is ends. If problem still occurs, additionally cut the white video-sources by itself. limited. wire of 6pin to 8pin cable and isolate both ends. 10R-05 0068 Made in China Version 11.01.2023 HW:CAM (V100)/(V23) CI-RL4-SC15...
