Advantech AIMB-707 Startup Manual

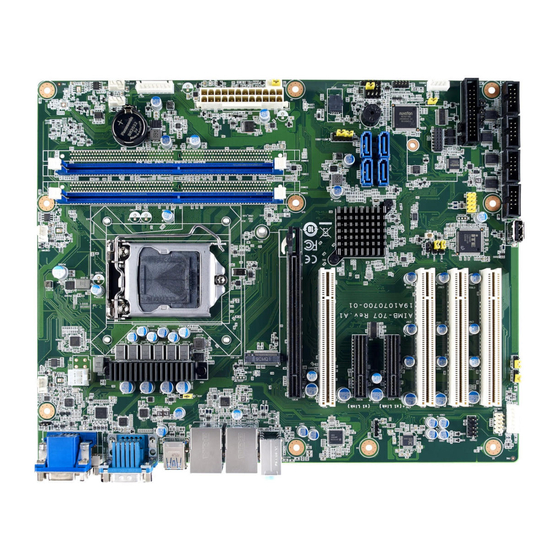

AIMB-707 LGA1200 Intel® Core™ i9/i7/i5/i3 ATX with
Dual Display, M.2, USB 3.2, and DDR4
Startup Manual
Packing List
Before you begin installing your card, please make sure that
the following items have been shipped:
• 1 x AIMB-707 motherboard
• 1 x AIMB-707 Startup Manual
• 2 x Serial ATA HDD data cables
• 1 x I/O port bracket
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Specifications
Standard Functions
• CPU: LGA1200 socket supporting 10th Gen Intel®
Core™ i9/i7/i5/i3 and Pentium™/Celeron™ processors
• BIOS: AMI 128 Mbit SPI BIOS
• Chipset: Intel® H420E PCH
Note: Legacy platforms are not supported.
• System memory: Up to 64 GB in two 288-pin DIMM
sockets, supporting dual-channel DDR4 2400/2666/2933
SDRAM. AIMB-707 supports non-ECC unbuffered DIMMs
and does not support any memory configuration that
mixes non-ECC with ECC unbuffered DIMMs.
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our sup-
port website for AIMB-707 at:
http://advt.ch/aimb707spt
Register your products on our website and get 2 months
extra warranty for free at:
http://www.register.advantech.com
This manual is for the AIMB-707 series Rev. A1.
Part No. 2041070701
Printed in China
• M.2 socket: One M.2 socket supports up to PCIe x2 M-
• SATA interface: Four onboard Serial ATA 3.0 connectors
• PCIe and PCI slots: One PCIe x16 expansion slot, 2x
• USB 3.2/2.0: Six USB 3.2 Gen 1 ports (6 rear), 4x USB
• LPC interface: Advantech-designed LPC connector
• Serial ports: Up to 6x serial ports: COMD1, COMD2 and
• Keyboard/mouse connector: The motherboard is not
• Watchdog timer: 255 sec timer intervals
Graphics Interface
• Chipset: CPU integrated graphics controller.
• Display memory: One GB maximum shared memory
• DVI-D: Resolution up to 1920 x 1200 @ 60 Hz refresh
• VGA: Resolution up to 1920 x 1200 @ 60 Hz refresh rate
Ethernet Interface
• Interface: 10/100/1000 Mbps
• Controller: LAN1: Intel® I219-V; LAN2 (G2 SKU only):
Mechanical and Environmental
• Dimensions (L x W): 304.8 x 244 mm (12 x 9.6 in)
• Power supply voltage: +3.3 V, +5 V, ±12 V, +5 Vsb
• Power consumption:
• Operating temperature: 0 ~ 60 °C/32 ~ 140 °F (depend-
• Weight of board: 0.7 kg (1.54 lb)
2nd Edition
February 2023
Specifications (Cont.)
Key 2280 type storage devices.
support data transmission rates of up to 600 MB/s. All
four SATA 3.0 ports support Advanced Host Controller
Interface (AHCI) technology.
PCIe x4 expansion slots (x1 link), 4x PCI slots 32-bit / 33
MHz PCI 2.2 compliant
2.0 ports (2x via header, 2x internal Type-A)
supports dTPM 2.0 module and COM port extension
modules.
COM 4 ~ 6 are RS-232; COM3 is RS-232/422/485 with
jumper and BIOS menu options.
equipped with a rear PS/2 connector for keyboard/mouse.
A 6-pin onboard header is supported for an optional PS/2
keyboard/mouse cable.
with 2x GB and above system memory installed
rate
Intel® I210-AT
Intel® Core™ i9-10900E; DDR4 32 GB x 2.
Maximum: +3.3 V at 0.72 A, +5 V at 1.29 A, +12 V at 6.5
A, +5 Vsb at 0.11 A, -12 V at 0.04 A
ing on the CPU)
AIMB-707 Startup Manual 1
