Operating Instructions • Warning Information • Parts Breakdown
Breakaway Torque ............................... 500 Ft./Lbs.
Working Torque Range ...................25-350 Ft./Lbs.
Maximum Applied Torque: ................. 370 Ft./Lbs.
Free Speed: ......................................... 11,500 RPM
Avg. Air Consumption: .............................. 4.5 cfm
Overall Length: ............................................ 5-3/4"
Weight: ........................................................ 2.4 lbs.
Air Inlet (NPT): ................................................. 1/4"
Recommended Hose Size: ............................... 3/8"
Sound Level: .............................................93.5 dBA
RATED RPM OF THE ACCESSORY
USED MUST EXCEED THE MAXIMUM
TOOL RPM SHOWN
ALWAYS READ
INSTRUCTIONS BEFORE
USING POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
WEAR HEARING
PROTECTION
AVOID PROLONGED
EXPOSURE TO
VIBRATION
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement
and other masonry products, and
• arsenic and chromium from
chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this
type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, such as those
dust masks that are specially designed to filter out microscopic particles.
CAT2125
SPECIFICATIONS

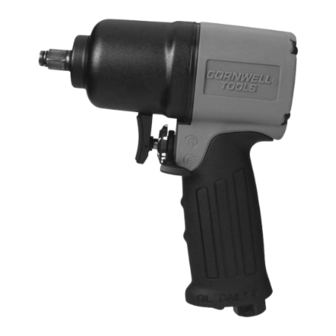

Super Duty 3/8" Dr.
Composite Impact
Copyright © Professional Tool Products, 2009
1
CAT2125
Wrench
All rights reserved
Rev. 09/10/09
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Cornwell Tools CAT2125
Summary of Contents for Cornwell Tools CAT2125
- Page 1 Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: CAT2125 • lead from lead-based paints, Super Duty 3/8" Dr. • crystalline silica from bricks and cement...
- Page 2 Vibration, repetitive motions or uncomfortable positions over extended periods of time may be harmful to your hands and arms. Discontinue use of tool if discomfort, tingling feeling or pain occurs. Seek medical advice before resuming use. CAT2125 Rev. 09/10/09...
- Page 3 WARRANTY Cornwell warrants its air tools for a period of 1 year to the consumer. We will repair any CAT2125 covered under this warranty which proves to be defective in material or workmanship during the warranty period. In order to have your tool repaired, return the tool to any Cornwell Authorized Warranty Center, freight prepaid.
- Page 4 PARTS BREAKDOWN - CAT2125 ITEM PARTS NO PARTS NAME ITEM PARTS NO PARTS NAME RS2125101 HAMMER CASE RS2125310 PACKING-CYLINDER RS1081103 HAMMER CASE BUSHING RS2125401 TRIGGER-A RS1734201 SOCKET RETAINER RS2125402 SPRING PIN RS1734202 O - RING RS1077403 TRIGGER BUSHING RS1081106 ANVIL RS1077404...
