Cornwell Tools Dr. Mini CAT2138G Operating Instructions

Operating Instructions • Warning Information
WARNING
ALWAYS READ
INSTRUCTIONS BEFORE
USING POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
ALWAYS WEAR
HEARING PROTECTION
AVOID PROLONGED
EXPOSURE TO
VIBRATION
Some dust created by power sanding, sawing, grinding, drilling,
and other construction activities contains chemicals known to
cause cancer, birth defects or other reproductive harm. Some
examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
work in a well ventilated area, and work with approved safety
equipment, such as those dust masks that are specially designed
to filter out microscopic particles.
SPECIFICATIONS
Free Speed ............................................................. 6,500 RPM
Breakaway Torque .................................................550 ft.-lbs.
Working Torque Range .................................... 25-350 ft.-lbs.
Overall Length ...................................................................4.4"
Weight ............................................................................ 3 lbs.
Average Air Consumption .............................................. 3 cfm
Air Inlet......................................................................1/4" NPT
Recommended Hose Size .......................................... 3/8" I.D.
Sound Level ................................................................. 95 dBA
Vibration Level ..................................................... 7.78 m/sec²
CAT2138G
• Parts Breakdown
WARNING
CAT2138G

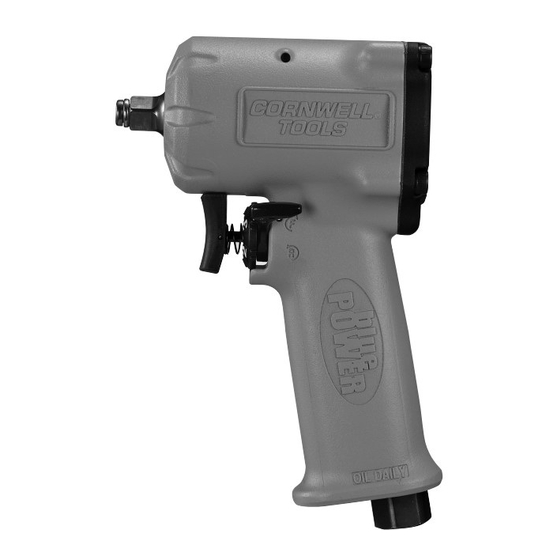

3/8" Dr. Mini
Impact Wrench
- Neon Green
Copyright © Professional Tool Products, 2017
All rights reserved
Rev. 05/17/17
