Operating Instructions • Warning Information • Parts Breakdown
Maximum Applied Torque: ..................... 650 Ft./Lbs.
Working Torque Range: .................... 25-400 Ft./Lbs.
Free Speed: ............................................... 8,000 RPM
Avg. Air Consumption: .................................. 5.5 cfm
Overall Length: ............................................... 7.125"
Weight: ........................................................... 5.8 lbs.
Sound Level: ................................................. 103 dBA
Air Inlet (NPT): .................................................... 1/4"
Recommended Hose Size: ............................ 3/8" I.D.
WARNING
RATED RPM OF THE ACCESSORY
USED MUST EXCEED THE MAXIMUM
TOOL RPM SHOWN
ALWAYS READ
INSTRUCTIONS BEFORE
USING POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
WEAR HEARING
PROTECTION
AVOID PROLONGED
EXPOSURE TO VIBRATION
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement
and other masonry products, and
• arsenic and chromium from
chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this
type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, such as those
dust masks that are specially designed to filter out microscopic particles.
CAT231
SPECIFICATIONS
WARNING
CAT231
1/2" Dr.

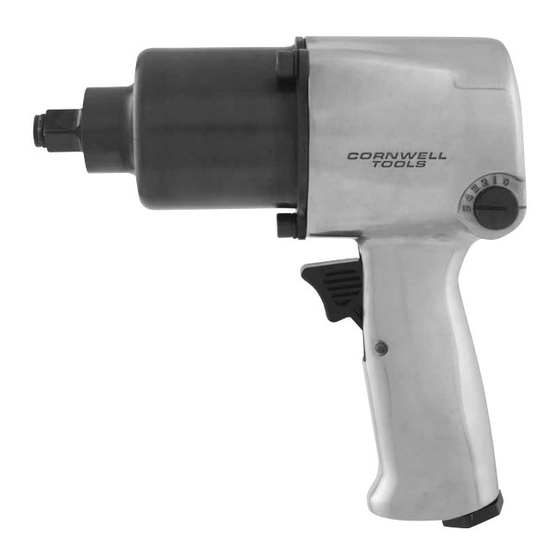

Impact Wrench
Copyright © Professional Tool Products, 2013
All rights reserved
08/06/13
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cornwell Tools CAT231
Summary of Contents for Cornwell Tools CAT231
- Page 1 WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: CAT231 • lead from lead-based paints, 1/2" Dr. • crystalline silica from bricks and cement and other masonry products, and Impact Wrench • arsenic and chromium from...
- Page 2 Wash periods of time may be harmful to your hands thoroughly after handling. hands and arms. Discontinue use of tool if discomfort, tingling feeling or pain occurs. Seek medical advice before resuming use. CAT231 08/06/13...
- Page 3 To set tool up with reduced power output in forward direction and full power in the reverse direction; push the reversing valve out in the clockwise direction (forward) and adjust the dial to the desired number in the forward direction. You will see that when the reversing valve is switched back to counter clockwise, the tool will have full power output. To set tool up with full power output in forward direction and reduced power in the reverse direction; push the reversing valve out in the counter clockwise direction (reverse) and adjust the dial to the desired number in the reverse direction. You will see that when the reversing valve is switched back to clockwise, the tool will have full power output. The Power management system is only for reference and does not act as a torque control tool. This tool includes a plunger style variable speed trigger that further allows the operator to control output power in the clockwise direction. CAT231 08/06/13...
- Page 4 RS708A17 Set Screw RS708A39 Front Gasket RS708A18 Rear Gasket RS708A40 Hammer Case Assembly RS708A19 Rear Bearing (includes #37) RS708A20 Knob for Reverse Valve RS708A41 Spring Washer RS708A21 Screw RS708A42 Cap Screw RS708A22 Rear End Plate RS708A43 Warning Label CAT231 08/06/13...
- Page 5 SUCH DAMAGES INCLUDE, WITHOUT LIMITATION, EXPENSES, LOST REVENUES, LOST SAVINGS, LOST PROFITS, OR ANY OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM THE PURCHASE, USE OR INABILITY TO USE THE CORNWELL PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential damages or exclusions or limitation on the duration of implied warranties or conditions, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary by state. Repair kits and replacement parts are available for many Cornwell products, regardless of whether or not the product is still covered by a warranty plan. Cornwell Quality Tools Company 667 Seville Road • Wadsworth, OH 44281-1094 CAT231 08/06/13...
